SECTION 2 -- CONTROLS, INSTRUMENTS AND OPERATION
2--7

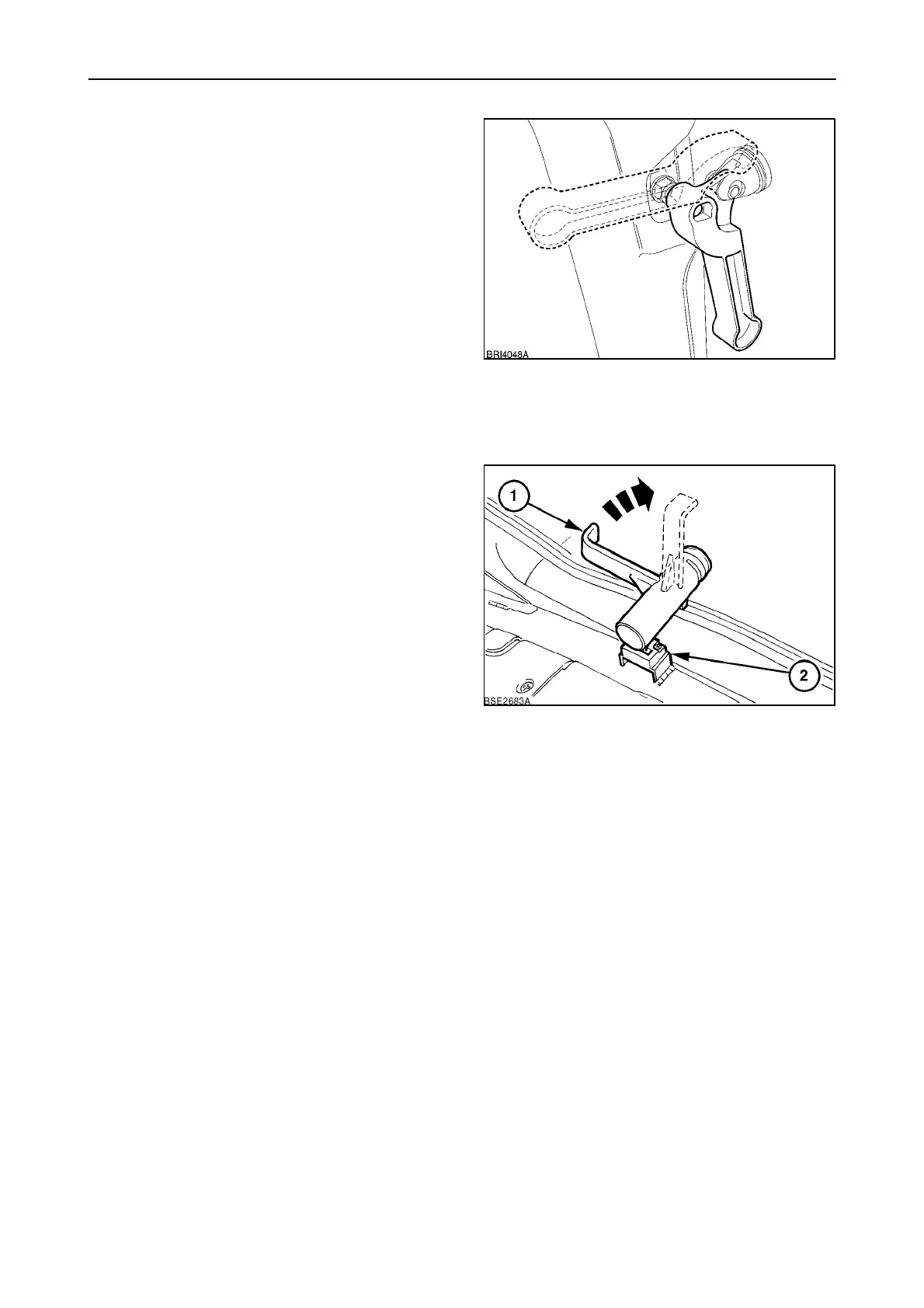

Right--Hand Access Door
The right--hand door can be used in an emergency
to exit the cab. To open the door, lift the locking lever
until it clears the retaining pin and push the door
open.
NOTE: The door cannot be unlatched from outside
the tractor.
Opening this door also provides easier access to the
fuse and relay panels located below removable
panels on the right--hand side of the cab.
When closing the door, ensure the slot in the locking
lever is correctly positioned above the retaining pin
then push fully down until it the lever is locked.
18
Rear Window
The rear window may be locked in the closed position
or retained in the partially open or fully open
positions.
To open the window, lift the central locking handle (1)
up to the vertical position. Allow the window to open
a little then push the handle down so that the locking
tongue engages the slot (2) in the framework.
Alternatively, the window may be allowed to swing
fully open supported by two gas--filled struts.
IMPORTANT: Retain control of the window when
opening it fully. Do not allow it to swing open freely.
Using the grab handle, pull the window closed and
push the handle down to lock the window.
19
