SECTION 2 -- CONTROLS, INSTRUMENTS AND OPERATION
2--8
High Visibility Roof Panel (where fitted)
The high visibility roof panel provides the operator
with a view to the bucket or grab when the loader is
in the raised position.
For extra ventilation the roof panel may be opened

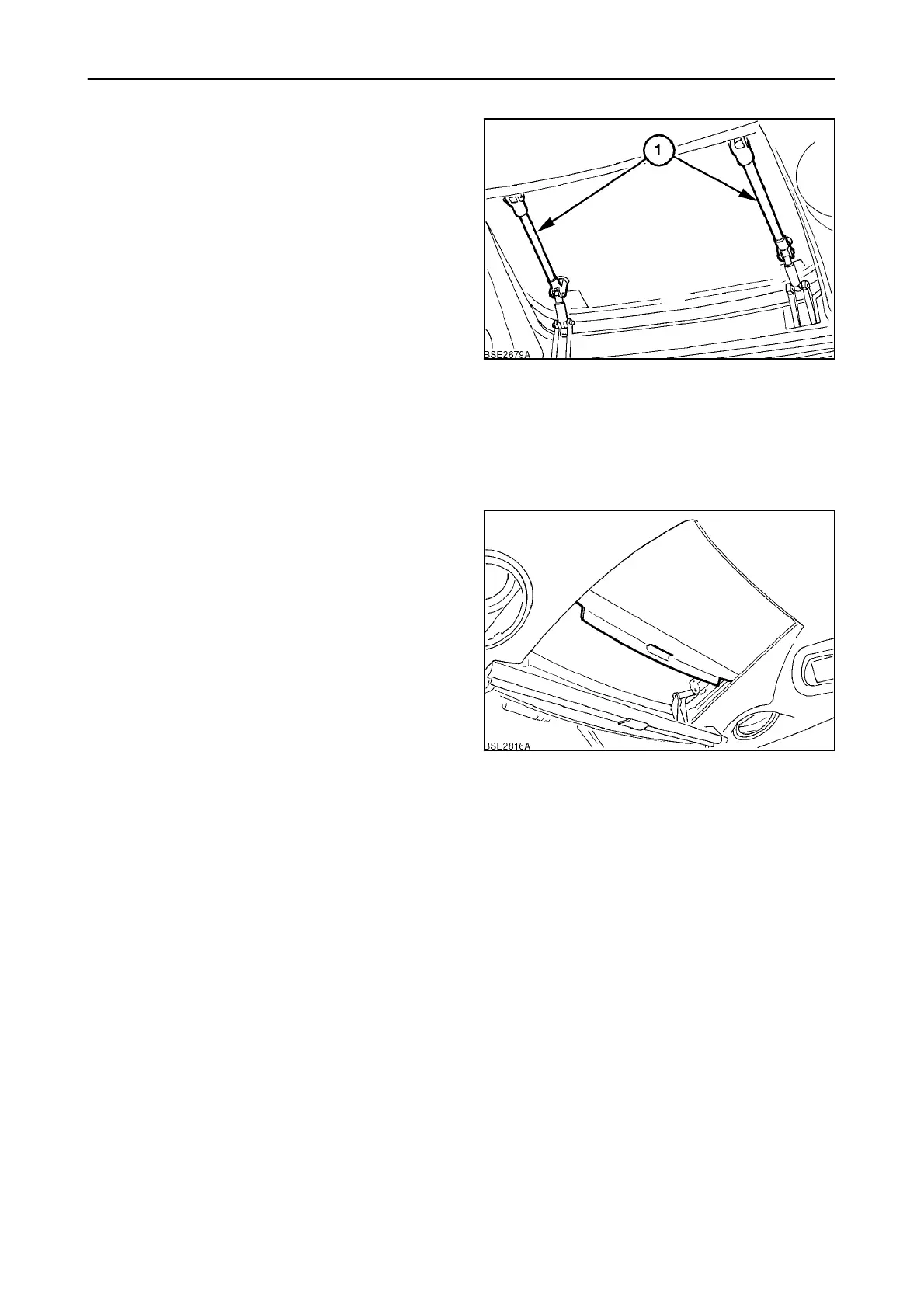

in one of three ways. Using the grab handles (1),
push up at the front or rear to angle the panel or,
alternatively, push up in the centre of the grab
handles to fully open the panel.
To close the panel, grasp both handles and pull the
panel down, the spring action of the handles will hold
the panel in the closed position.
NOTE: When transporting the tractor on a truck or
trailer at speeds above 50 K/mh (31 MPH) ensure the
roof panel is secured to prevent accidental opening.
See page 3--3 for more information.
20
The sliding panel may be adjusted to reduce glare or
can be fully closed if required.
21
