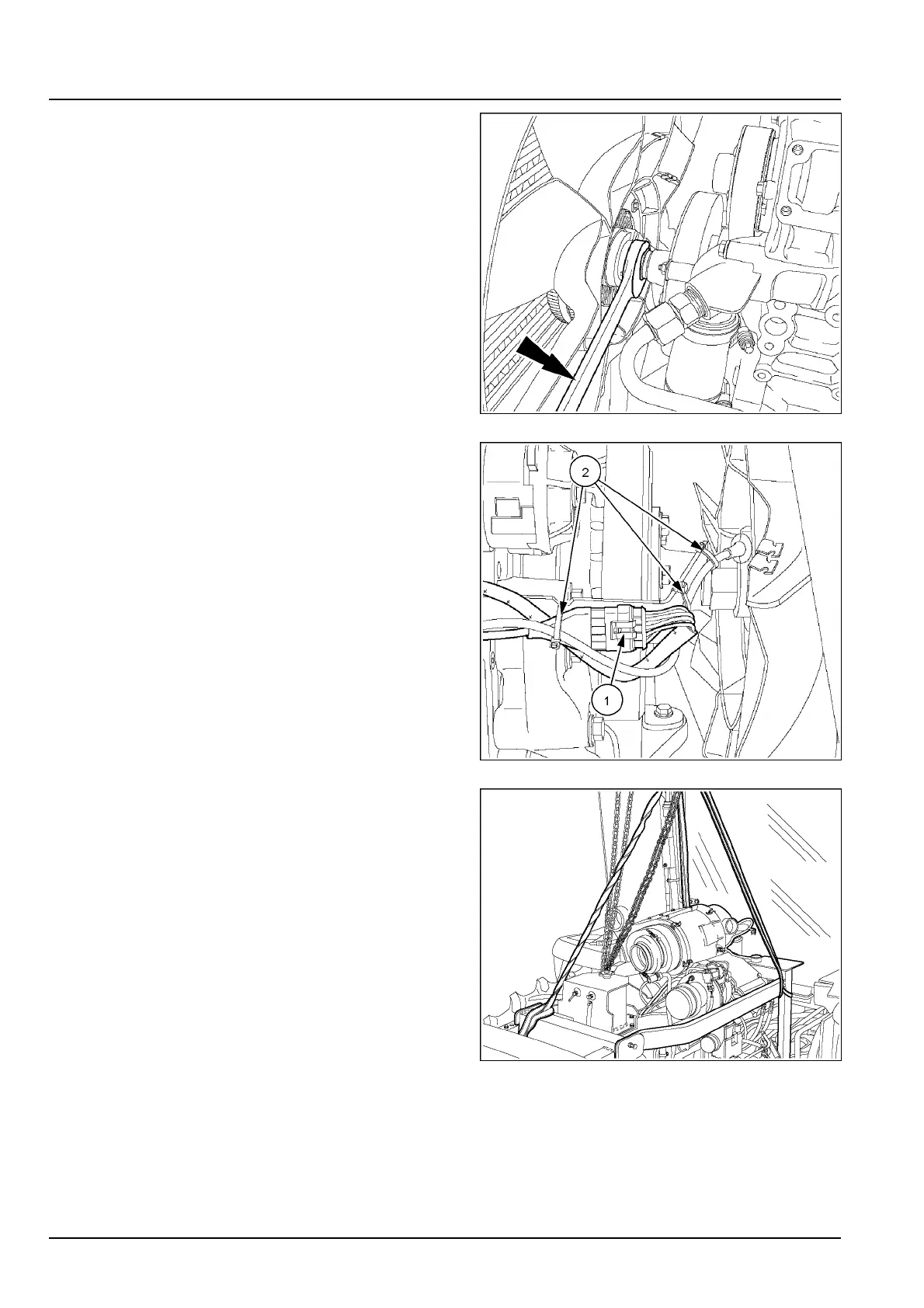

Engine-Engineandcrankcase
12.Tightenfanassemblytohub.
NOTE:Hubhaslefthandedthread.
RCPH10FWD010BBC12
13.Pluginharnessconnector(1)andtieharnesslead
(2)tobracket.
RCPH10FWD009BBC13
14.Attachliftingstrapsasshown.Useoverheadcrane
tosethoodsupportframeintoposition.
NOTE:Besurerighthandsideairconditionerlineisin
placewhileloweringhoodsupportframeintoposition.
RCPH10FWD008BBC14
4748821326/02/2013
10.1[10.001]/12
