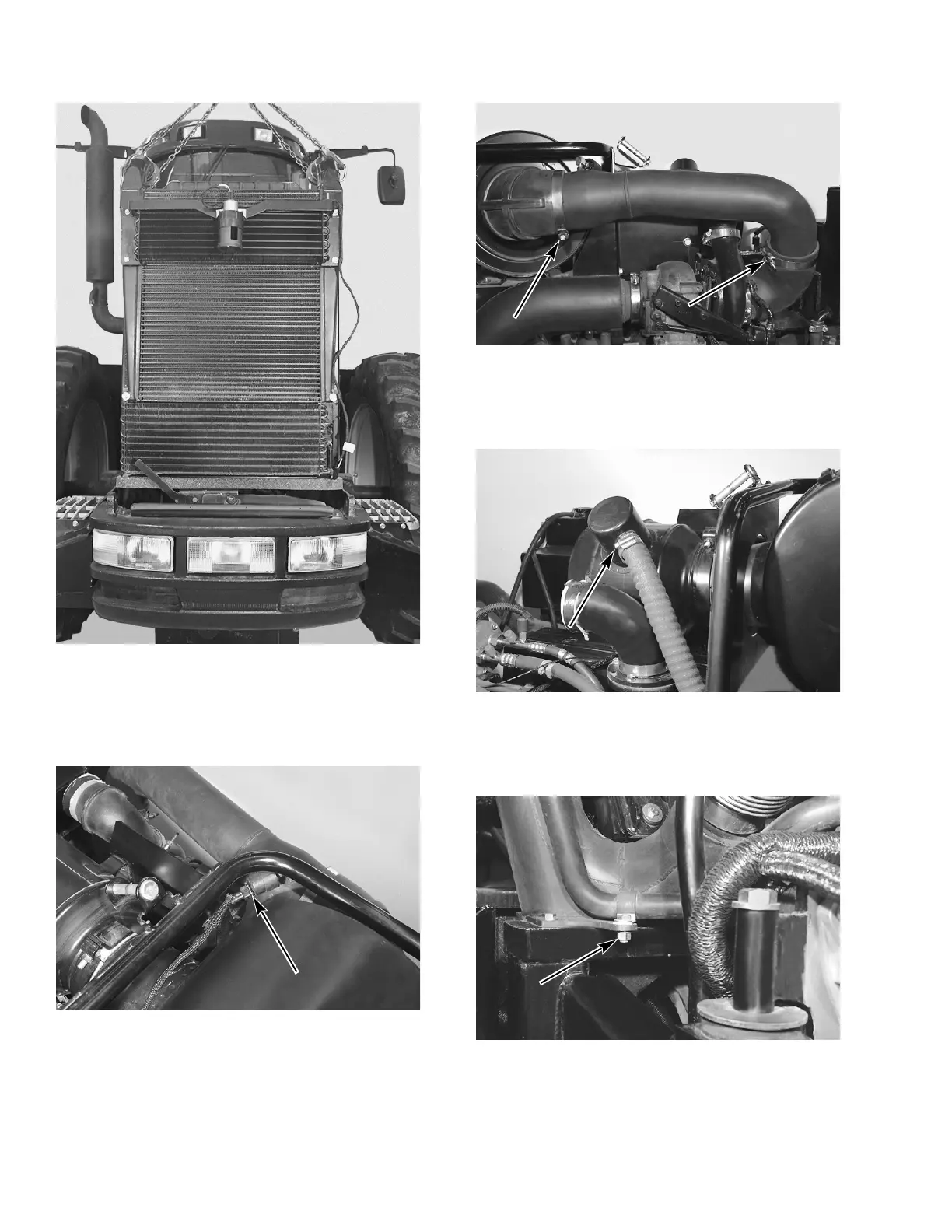

STEP 5
MK99J073
See Section 9008 Radiator Removal for instructions
to drain the coolant and remove the radiator and
cooler assembly from the front frame.
STEP 6
MK99J008
Remove the wire connector from the air restrictor
switch on the air cleaner outlet tube.
STEP 7
MK99J007
Loosen the clamps on the air cleaner outlet tube and
remove the tube.
STEP 8
MK99J049
Loosen the clamp and remove the exhaust aspirator
hose from the air cleaner inlet.
STEP 9
MK99J051
Remove the aspirator tube P-clamp mounting bolt.
