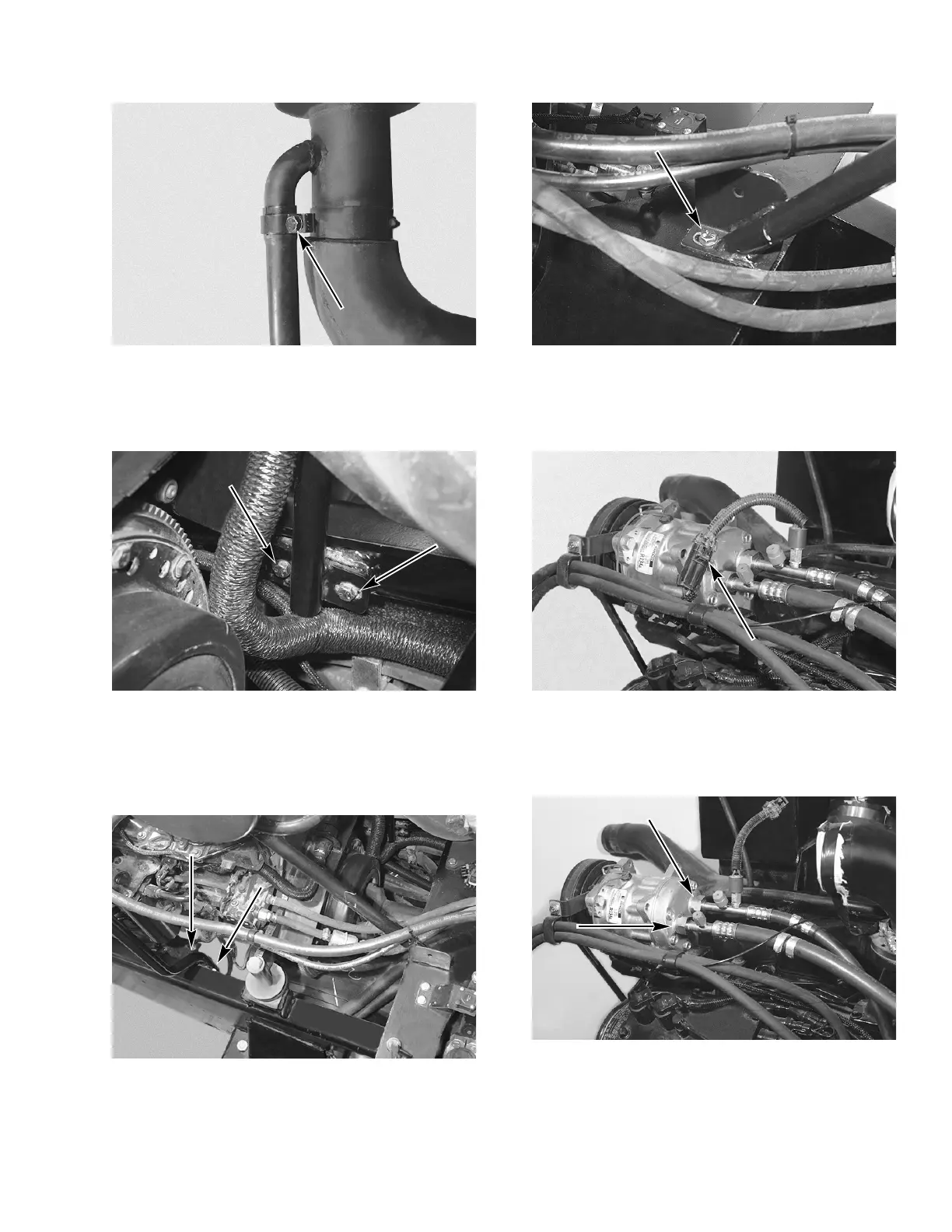

STEP 10
MK99J050
Loosen the clamp and remove the aspirator tube and
hose from the muffler.
STEP 11
MK99J004
Attach an overhead hoist to the hood support
assembly and remove the two right side mounting
bolts.
STEP 12
MK99J024
Remove the two left side hood support mounting
bolts.
STEP 13
MK99J010
Remove the rear hood support mounting assembly
and remove the assembly from the tractor.
STEP 14
MK99J023
Remove the wire connector from the A/C system high
pressure switch.
STEP 15
MK99J020
Remove the suction and discharge hoses from the
A/C compressor. Install caps on the compressor
fittings and plugs in the hoses. Discard the O-rings.
