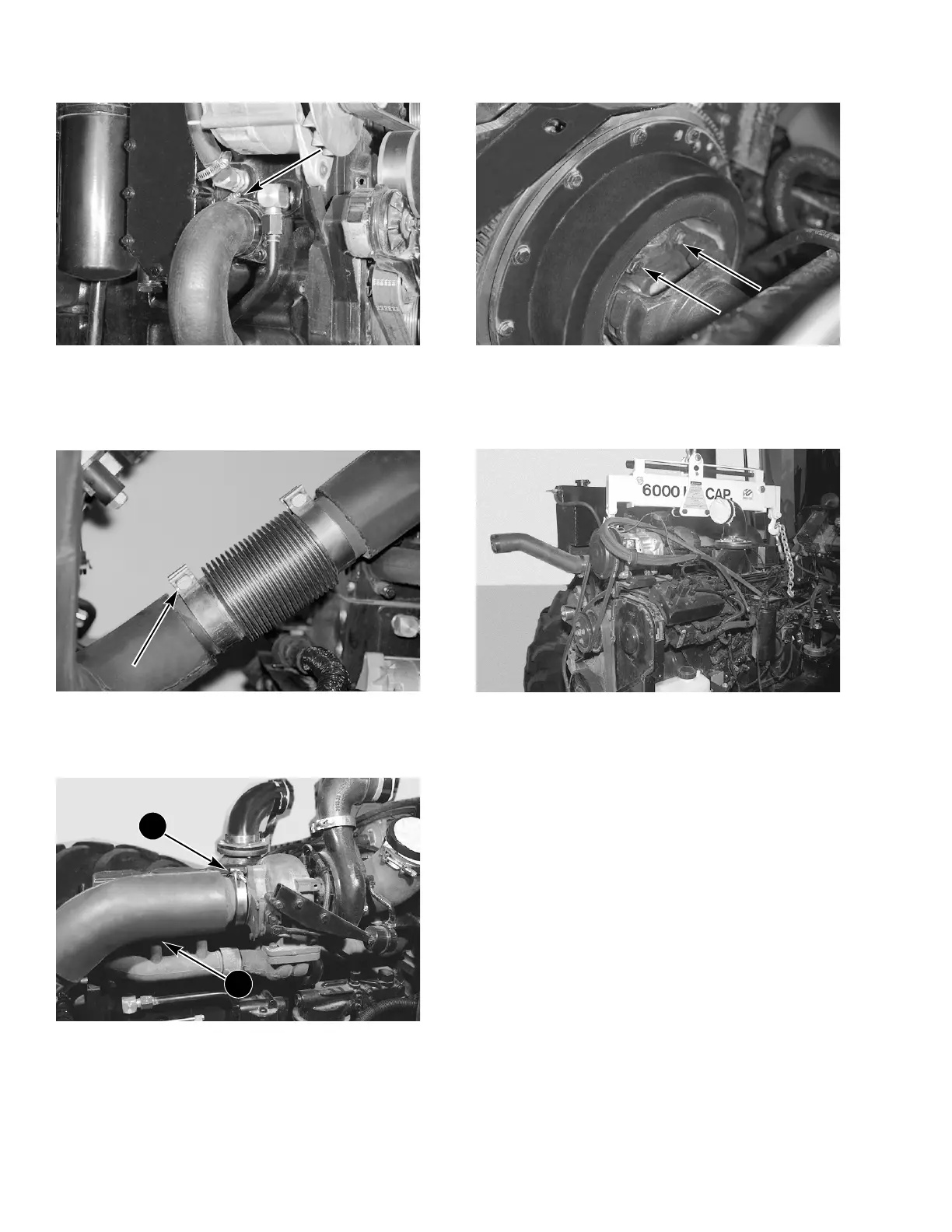

STEP 28
MK99J031
Loosen the hose clamp and remove the lower
radiator hose from the engine.
STEP 29
MK99J035
Loosen the band clamps on the exhaust flex tube.
STEP 30
MK99J029
Remove the channel clamp (1) from the turbo
exhaust port. Remove the exhaust pipe (2) and flex
tube from between the turbo and the frame mounted
exhaust pipe.
STEP 31
MK99J033
Remove the four mounting bolts and slide the drive
shaft rearward away from the engine drive coupler.
STEP 32
MK99J041
Install the OEM 4130 Load Rotor on the two engine
lifting brackets. Attach the load rotor to an overhead
hoist.
IMPORTANT: The engine lifting brackets are for
vertical lifting only. Any lifting device that is not
vertically in-line with the lifting brackets can damage
the engine rocker arm cover or cause bracket failure.
