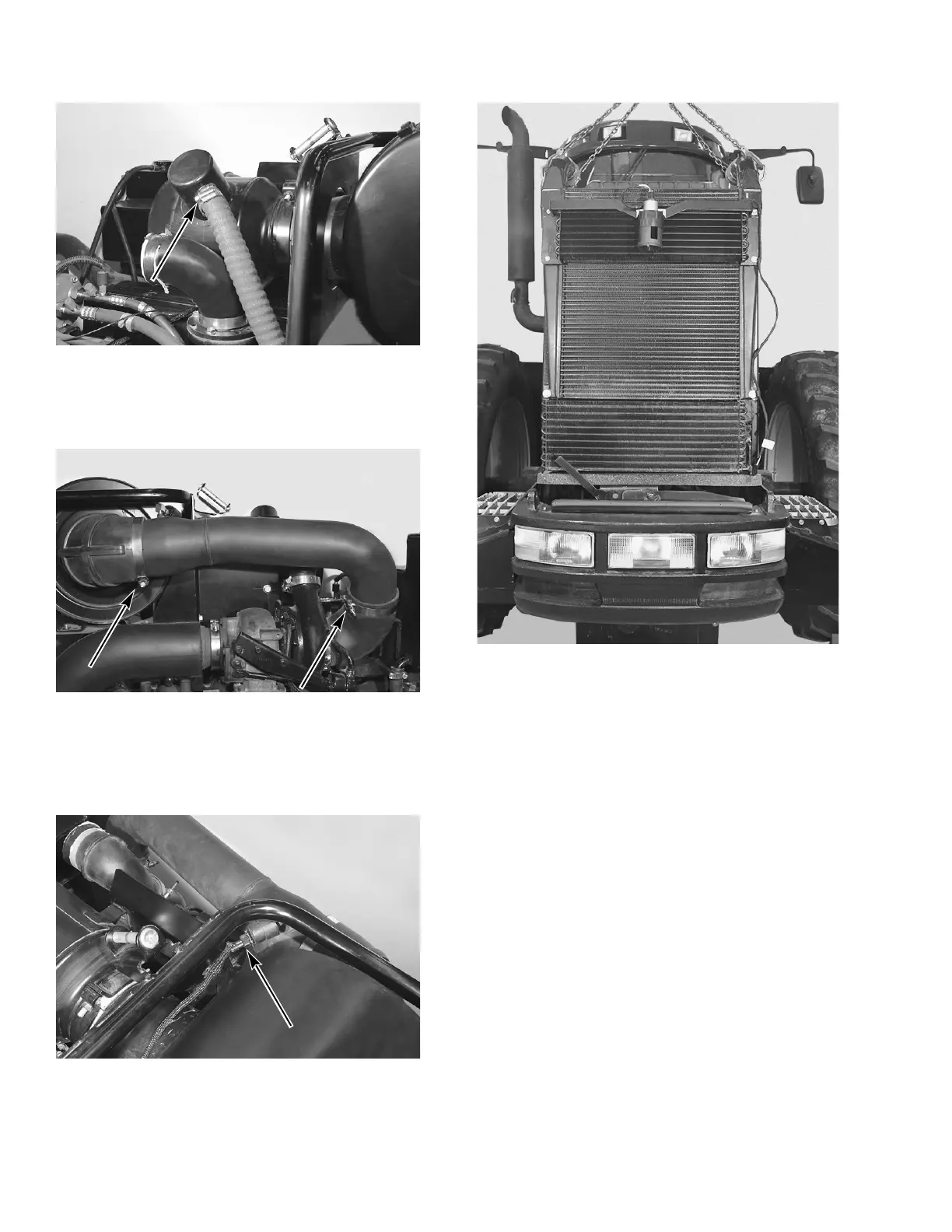

STEP 68
MK99J049
Install the aspirator hose on the air cleaner inlet and
tighten the hose clamp.
STEP 69
MK99J007
Install the turbo air inlet tube between the air cleaner
elbow adapter and turbo inlet elbow adapter. Tighten
the clamps to specifications.
STEP 70
MK99J008
Install the wire harness connector on the air restrictor
switch.
STEP 71
MK99J073
See Section 9008 Radiator Removal and Installation
for instructions to install the radiator and cooler
assembly. Fill the engine and radiator with the
specified coolant.
