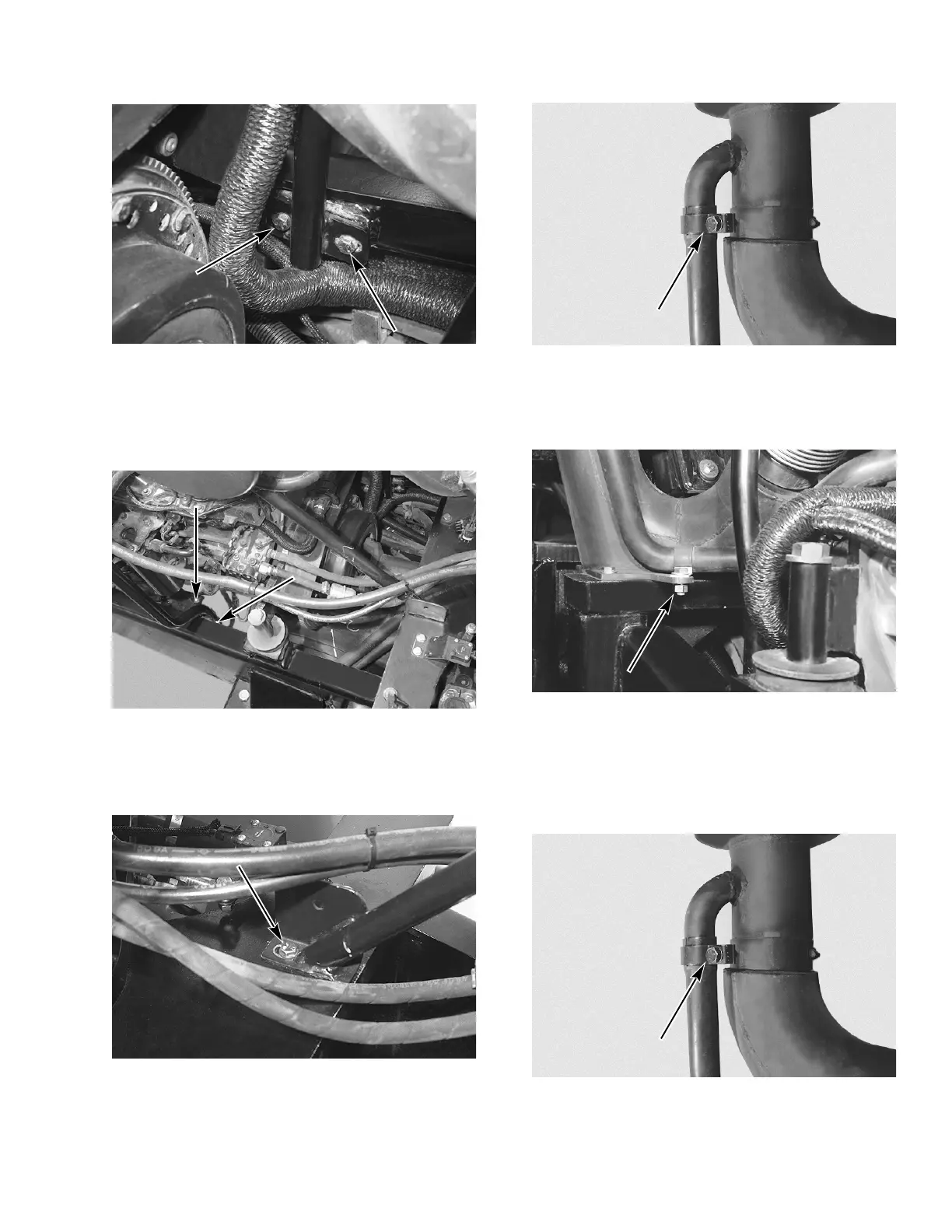

STEP 62
MK99J004
Use two M10 x 30 bolts to install the right side hood
support bracket mount on the frame. Do not tighten
the bolts.
STEP 63
MK99J024
Use two M10 x 30 bolts to install the left side bracket
mount on the frame. Do not tighten the bolts.
STEP 64
MK99J010
Use one M10 x 30 bolt to install the rear bracket
mount on the frame. Tighten the five M10 x 30
mounting bolts to specifications.
STEP 65
MK99J050
Install the exhaust aspirator tube on the muffler. Do
not tighten the clamp.
STEP 66
MK99J051
Use the M12 x 30 bolt, two flat washers and nut to
install the aspirator tube P-clamp on the exhaust pipe
mounting flange. Tighten the bolt and nut to
specifications.
STEP 67
MK99J050
Tighten the aspirator tube clamp to specifications.
