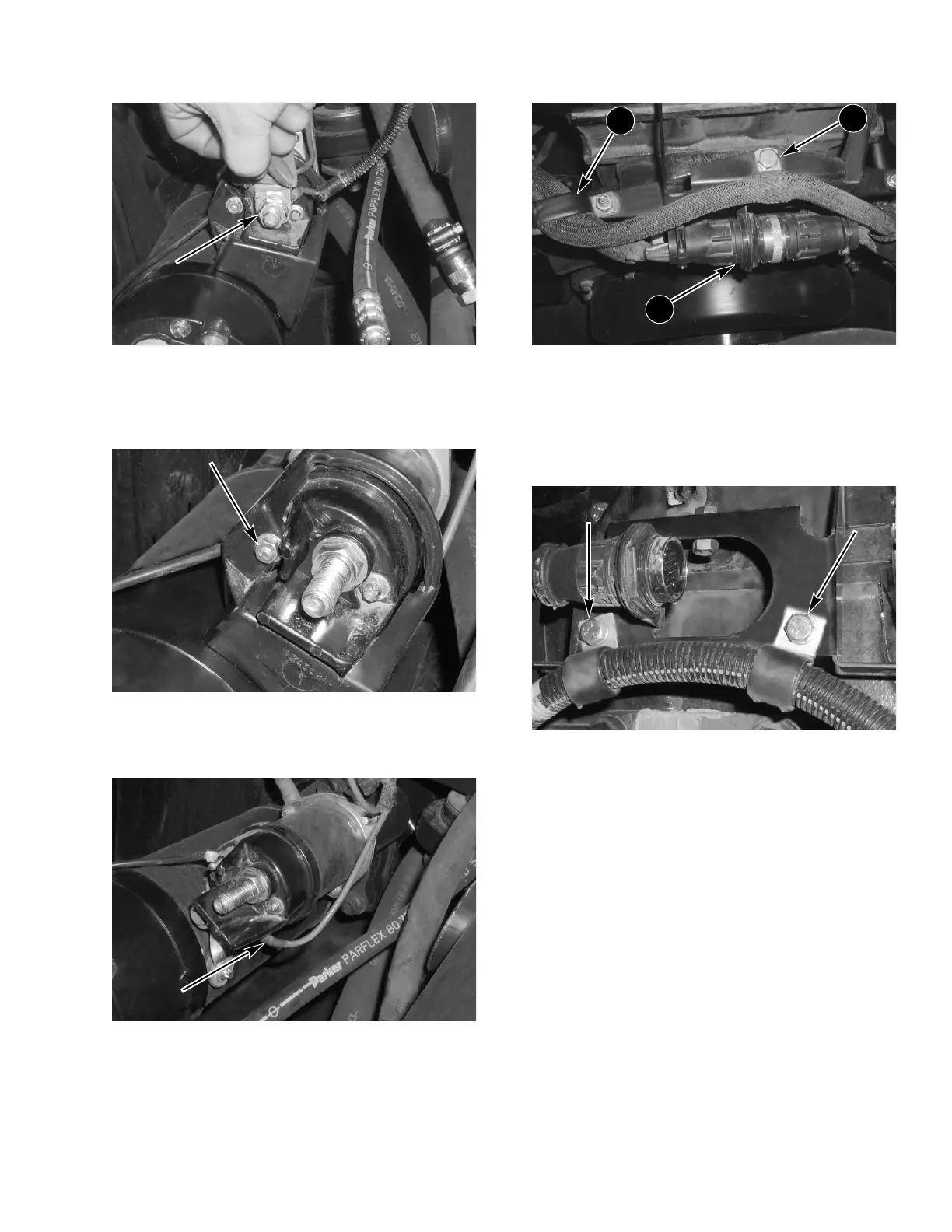

STEP 32
MD02A230
Remove the wires from the positive terminal of the
starter.
STEP 33
MD02A252
Remove the nut and remove the solenoid cover.
STEP 34
MD02A232
Remove the nut and remove the starter solenoid
wire.
STEP 35
MD02A233
Remove the top (1) and double (2) clamps. Remove
the starter wire harness from the double clamp (2).
Remove the front frame wire harness (3) from the
engine harness connector.
STEP 36
MD02A234
Remove the two battery cable clamps from the
bracket.
Secure all wire harnesses and hoses away from the
engine.
2
1
3
