Case 1188 - Page 12

4001-35
Cre 7-26570GB Issued 11-99
CM99K028
ELECTRICAL CABINET
1 Connecting strip
2 Air conditioner
See page 6
UPPERSTRUCTURE
B23 Overload indicator (optional)
B56 Boom raising range limitation detector (optional)
R50 Fuel heater (optional)
Y7 Adjustable or articulated boom extending electro-valve (optional)
Y8 Adjustable or articulated boom retracting electro-valve (optional)
Y50 Adjustable boom raising height limiter solenoid valve (optional)
Y52 Quick coupler solenoid valve (optional)
Y53 Fuel filler pump (optional)
ENGINE
E12 Engine compartment light (optional)
R11 Cold start assistance plug (optional)
S28 Engine compartment lighting switch (optional)

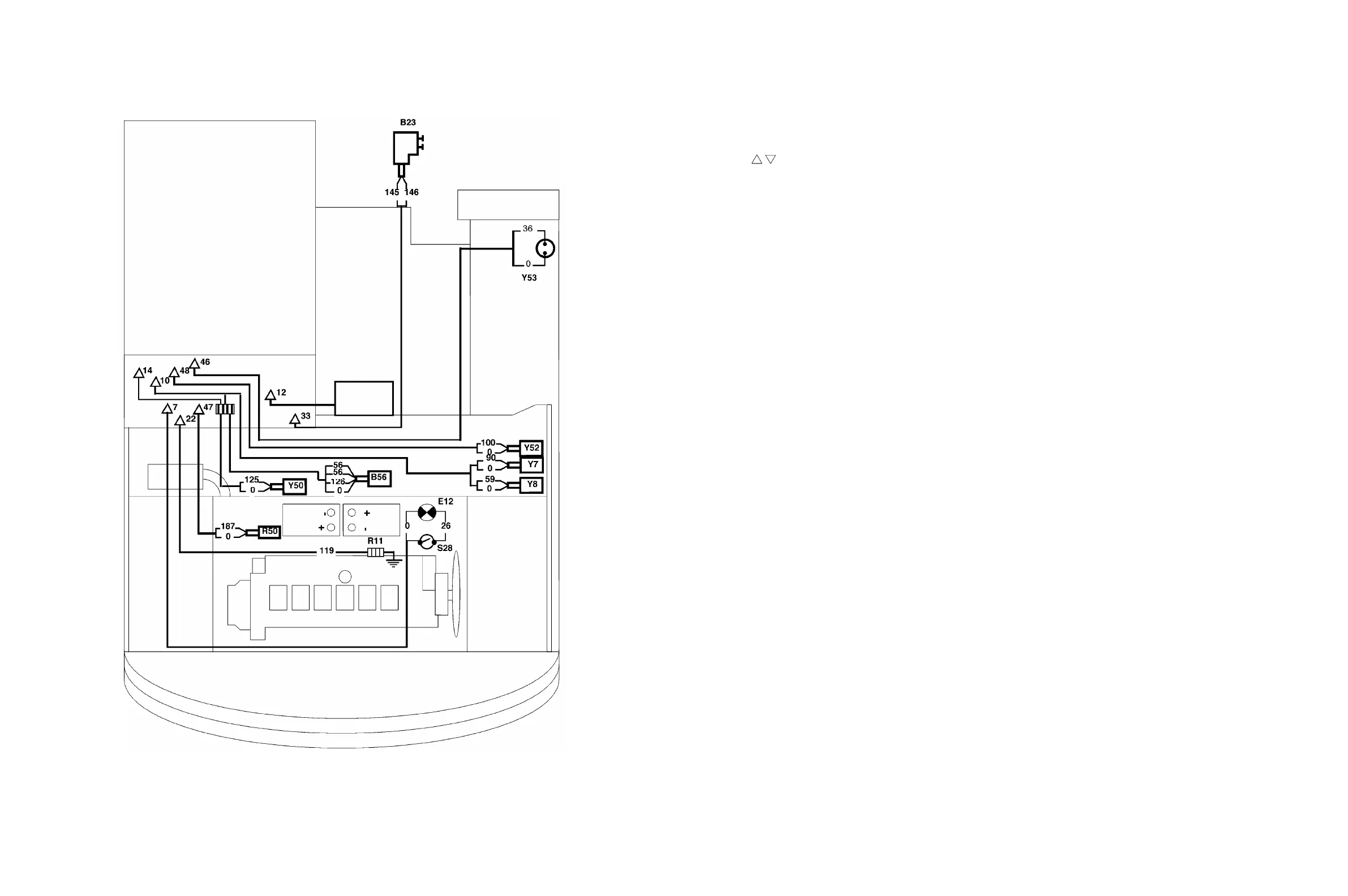

ENGINE MODULE AND UPPERSTRUCTURE WIRING (OPTIONAL)
