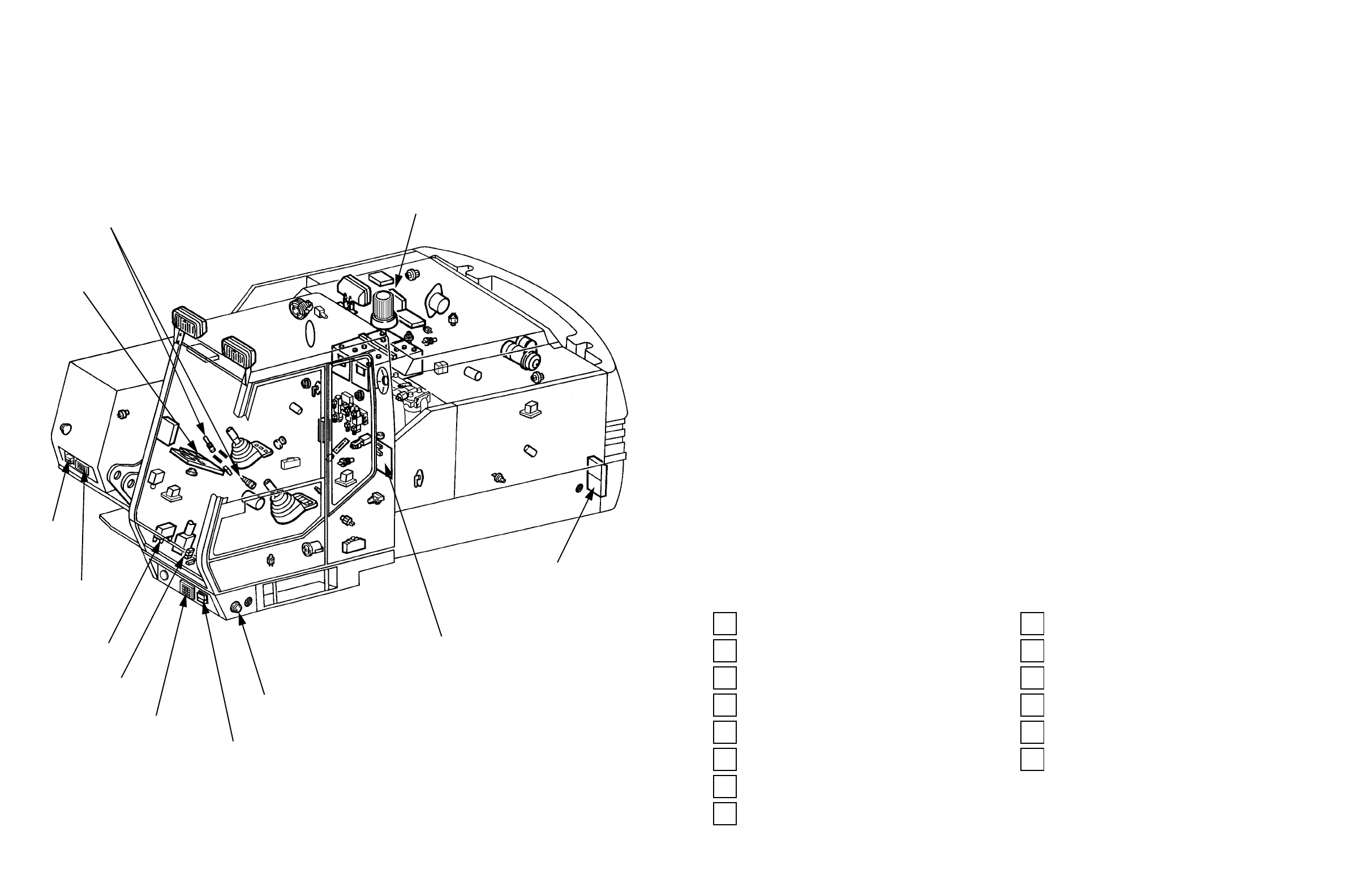

ELECTRICAL SCHEMATIC (PLATE 7)
ELECTRICAL CABINET
F15 Fuse 15A, main beam headlights
F16 Fuse 5A, stop lights
F17 Fuse 5A, LH stop light
F18 Fuse 5A, RH front side light
F19 Fuse 5A, LH front side light
F20 Fuse 5A, RH front side lights
F21 Fuse 5A, LH front side light
F22 Fuse 5A, Rear foglight (specific to certain
countries)
F23 Fuse 5A, RH main beam headlight
F24 Fuse 5A, LH main beam headlight
F26 Fuse 7.5A, direction indicators and hazard
warning
K7 Upperstructure and attachment working light
relay
K10 Flasher unit
Sh5 Shunt
V2 K3 indicator relay diode
V3 Dipped headlights diode
V5 Rear foglight indicator lamp diode (specific to
certain countries)
V6 Headlight main beam indicator lamp diode
V7 RH direction indicator - lamp diode
V8 LH direction indicator - lamp diode
V9 Hazard warning indicator lamp diode
V10 LH direction indicator light diode
V20 RH direction indicator light diode
V23 Hazard warning diode
CAB
H55 Rear foglight switch lighting (specific to certain
countries)
S55 Rear foglight control (specific to certain
countries)
SC1 Direction indicator (commodo), main beam and
dip switch, side lights and headlight flasher switch
FLOOR
B53 Steering pressure switch
B52 Pressure switch for minimum braking pressure
B51 Stop light pressure switch
B50 Parking brake pressure switch
J13, 14 Connectors
UPPERSTRUCTURE
E10 RH rear stop light
E11 LH rear stop light
E12 Front RH side light
E13 Rear RH side light
E14 Front LH side light
E15 Rear LH side light
E16 Front RH dipped headlight
E17 Front LH dipped headlight
E18 RH main beam headlight
E19 LH main beam headlight
E20 Front RH direction indicator light
E21 Rear RH direction indicator light
E22 Rear LH direction indicator light
E23 Front LH direction indicator light
E24 Dipper lighting (specific to certain countries)
E25 Rear foglight (specific to certain countries)
E29 Registration plate lighting (specific to certain
countries)
E31 Front RH side-mounted direction indicator
E32 Front LH side-mounted direction indicator
E33 RH marker light (specific to certain countries)
E34 LH marker light (specific to certain countries)
WIRING CONNECTION BETWEEN SCHEMATICS
See schematic plate 2
See schematic plate 3
See schematic plate 3
See schematic plate3
See schematic plate 3
See schematic plate 3
See schematic plate 3
See schematic plate 3
See schematic plate 4
See schematic plate 4
See schematic plate 4
See schematic plate 4 and 6
See schematic plate 6
See schematic plate 5
WIRING CONNECTION WITH SCHEMATIC PLATE 6
