Case 1188 - Instrument Panel and Wiring; Instrument Panel Layout and Indicators

4001-9
Lep 7-57590GB Issued 09-94

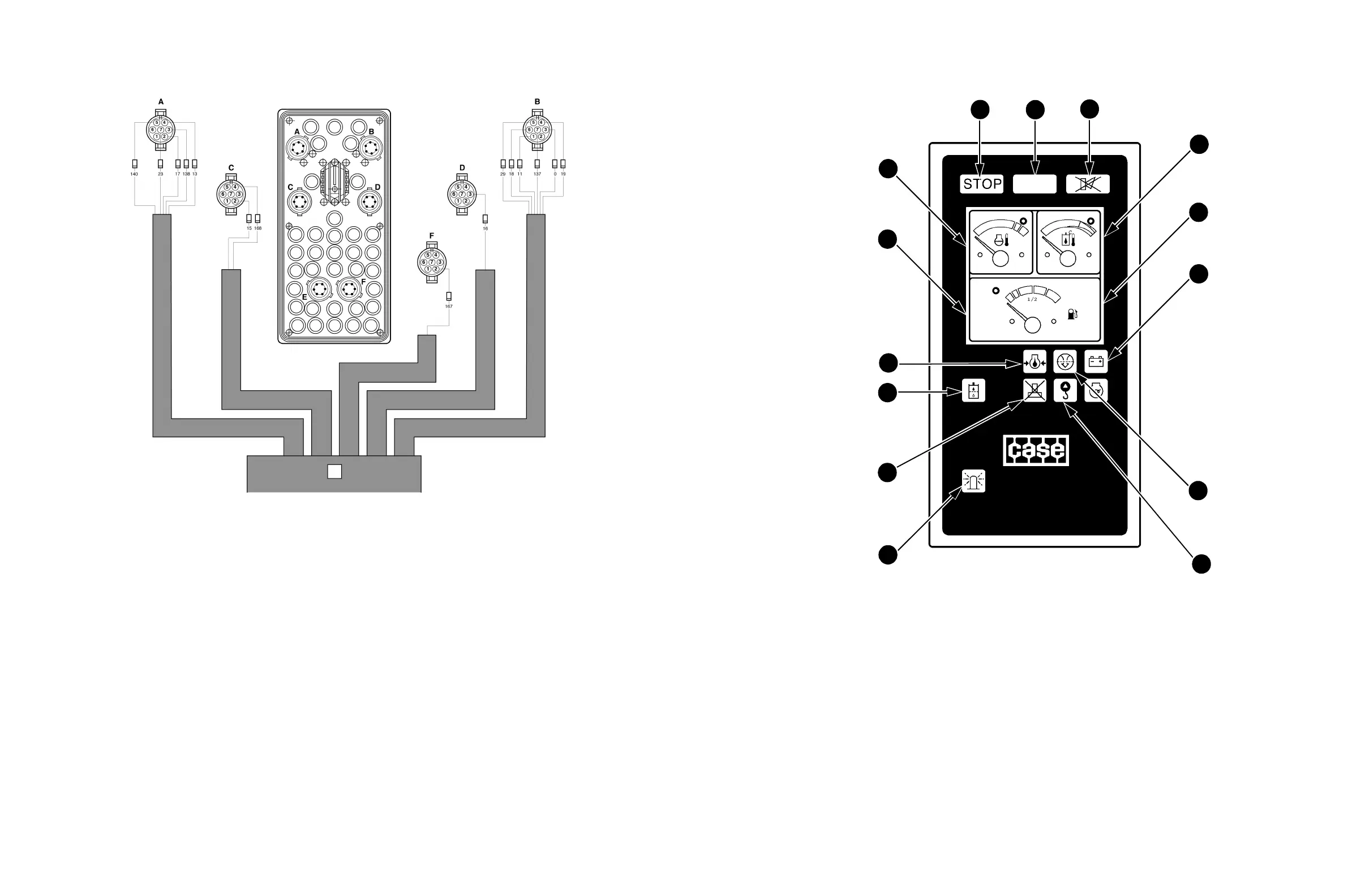

INSTRUMENT PANEL WIRING
A 7- way connector : minimum pilot pressure red warning lamp, hydraulic oil temperature indicator, battery-
charge red warning lamp, audible warning cut- out push button, engine oil pressure red warning lamp, alarm
orange warning lamp, stop alarm red warning lamp.
B 7- way connector : 24 Volt supply, earth, fuel level gauge, indicator lighting, engine coolant temperature indica-
tor.
C 7- way connector : air filter restriction red warning lamp, overload indicator orange warning lamp (optional).
D
7- way connector : hydraulic oil filter restriction red warning lamp.
F
7- way connector : rotary light orange indicator lamp (optional)
PDH0235
INSTRUMENT PANEL (FRONT FACE)
PDH0234
1
2
3
P3
P1
P2
13
8
7
12
15
11
9
6
1 Stop alarm red warning lamp
2 Alarm orange warning lamp
3 Audible warning cut- out push button
6 Engine oil pressure red warning lamp
7 Air filter restriction red warning lamp
8 Battery charge red warning lamp
9 Hydraulic oil filter restriction red warning lamp
11 Minimum pilot pressure red warning lamp
12 Overload indicator orange warning lamp
(optional)
13 Indicator lighting lamp
14 Not used
15
Rotary light orange indicator lamp (optional)
P1 Engine coolant temperature indicator
P2 Fuel level indicator
P3 Hydraulic oil temperature indicator
