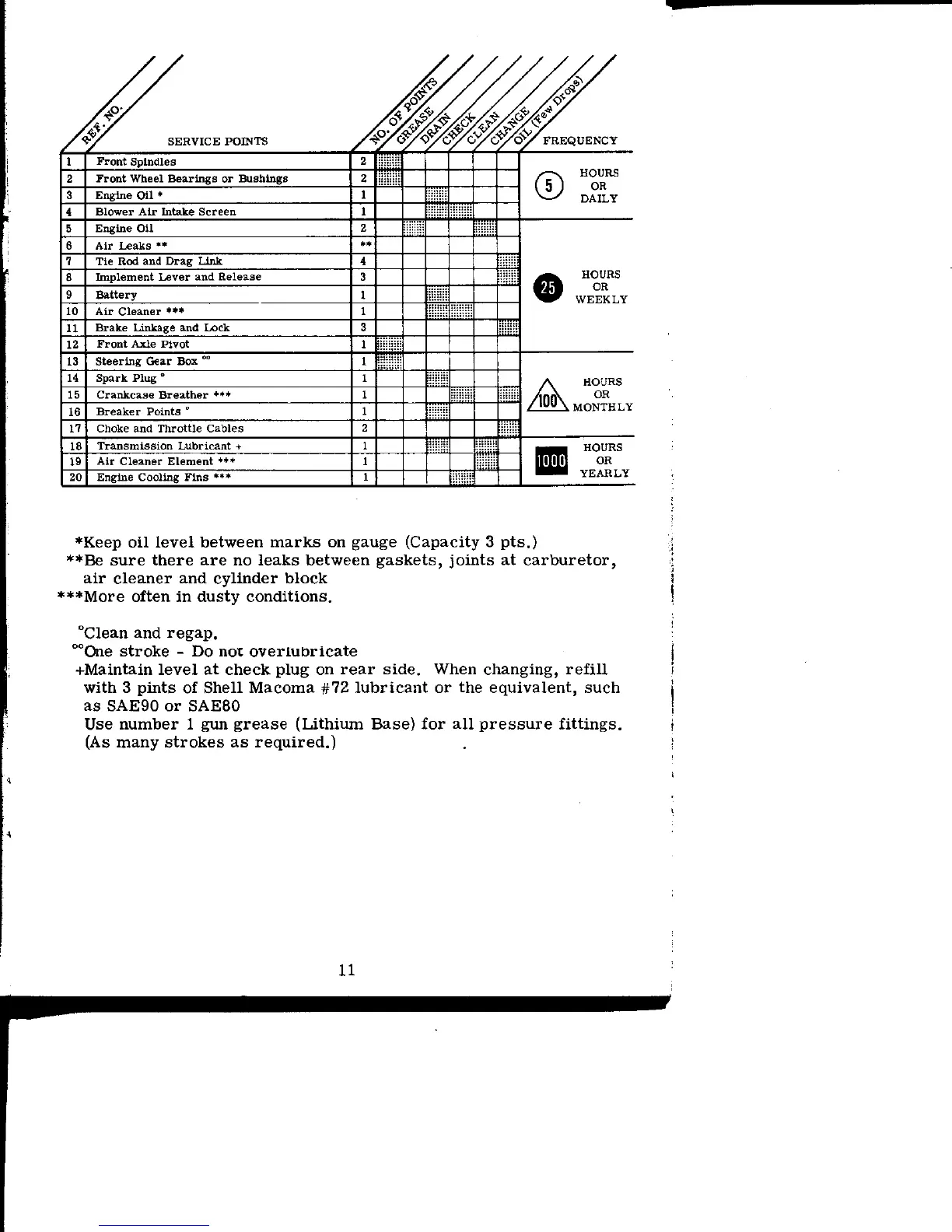

Case 120 - LUBRICATION CHART

SERVICE POINTS
1 Front Spindles
2
/—X HOURS
(5) OR
^ DAILY
2
Front Wheel Bearings or Bushings 2
/—X HOURS
(5) OR
^ DAILY
3 Engine Oil *
1
/—X HOURS
(5) OR
^ DAILY
4
Blower Air Intake Screen 1
/—X HOURS
(5) OR
^ DAILY
5
Engine Oil
2
HOURS
® OR
WEEKLY
6 Air Leaks •*
HOURS
® OR
WEEKLY
7
Tie Rod and Drag Link
4
HOURS
® OR
WEEKLY
8
Implement Lever and Release 3
HOURS
® OR
WEEKLY
9 Battery
1
HOURS
® OR
WEEKLY
10 Air Cleaner *•• 1
HOURS
® OR
WEEKLY
U
Brake Linkage and Lock 3
HOURS
® OR
WEEKLY
12
Front Axle Pivot
1
HOURS
® OR
WEEKLY
13
Steering Gear Box °° 1
A HOURS
/ 'UO \V
14 Spark Plug ° 1
A HOURS
/ 'UO \V
15 Crankcase Breather ••* 1
A HOURS
/ 'UO \V
16
Breaker Points °
1
A HOURS
/ 'UO \V
16
Breaker Points °
1
17 Choke and Throttle Cables
2
18
Transmission Lubricant + 1
18
Transmission Lubricant + 1
MHMHH HU U Kb
miiiH OR
19 Air Cleaner Element **• 1
MHMHH HU U Kb
miiiH OR
20 Engine Cooling Fins *•*
1 •••• YEARLY
*Keep oil level between marks on gauge (Capacity 3 pts.)
**Be sure there are no leaks between gaskets, joints at carburetor,
air cleaner and cylinder block
***More often in dusty conditions.
"Clean and regap,
°°One stroke - Do not overiubricate
+Maintain level at check plug on rear side. When changing, refill
with 3 pints of Shell Macoma #72 lubricant or the equivalent, such
as SAE90 or SAE80
Use number 1 gun grease (Lithium Base) for all pressure fittings.
(As many strokes as required.)
