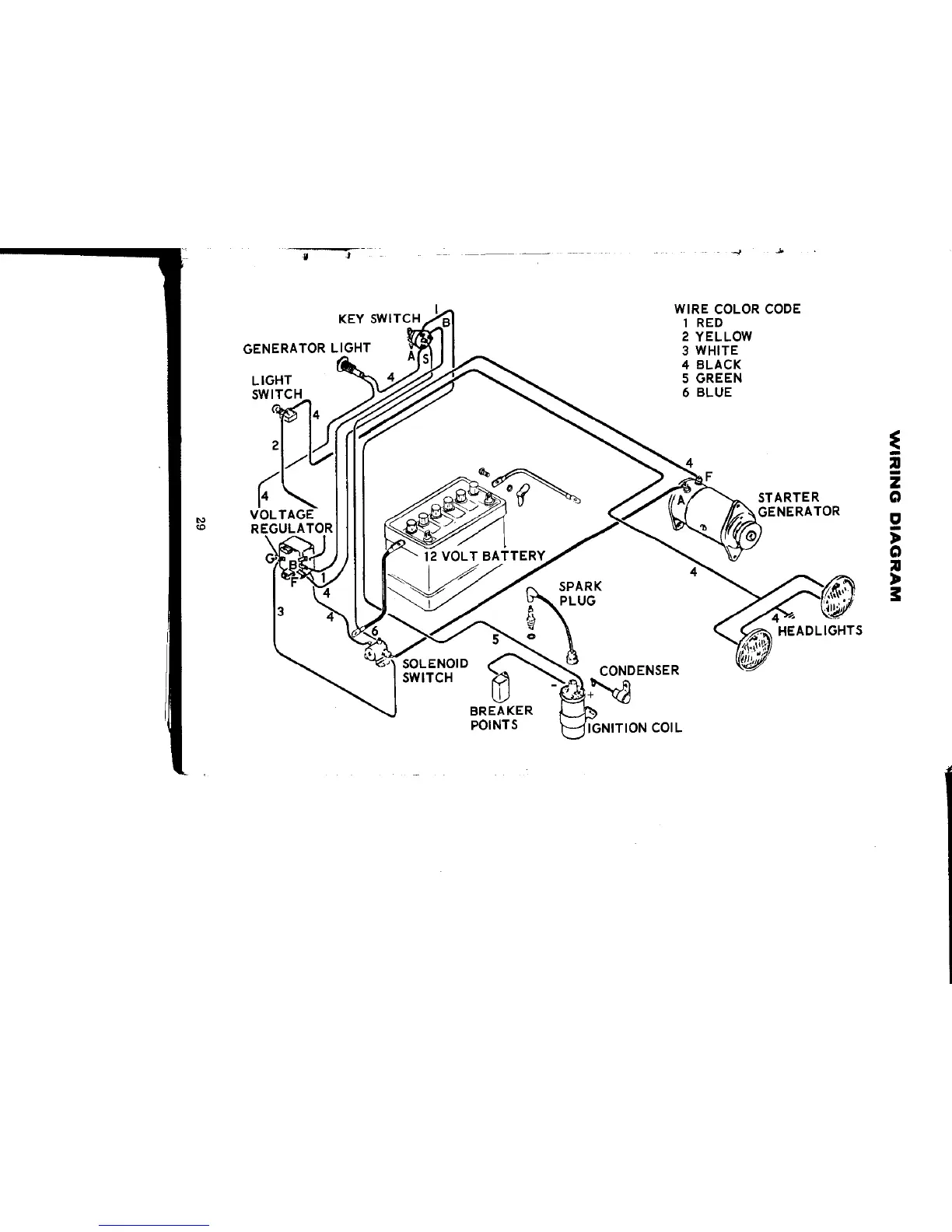

Case 120 - WIRING DIAGRAM

to
CD
KEY SWITCH
GENERATOR LIGHT
LIGHT
SWITCH
VOLTAGE
REGULATOR
WIRE COLOR CODE
1 RED
2 YELLOW
3 WHITE
4 BLACK
5 GREEN
6 BLUE
STARTER
GENERATOR
HEADLIGHTS
CONDENSER
IGNITION COIL
