ELECTRICAL SYSTEM
Headlights
All genuine Case 12 Volt Replacement Sealed Units have a label
marked "12-V" or are stamped "12-V" on the back of the unit. This
marking is placed on the unit to make sure you do not install a 6
volt sealed unit which would burn out immediately.
To install a new headlight, remove the retainer screws and re-
tainer, Figure 17. Pull out the old unit and disconnect the wires as
shown in Figure 17. Install the new gasket furnished with your re-
placement Case headlight.

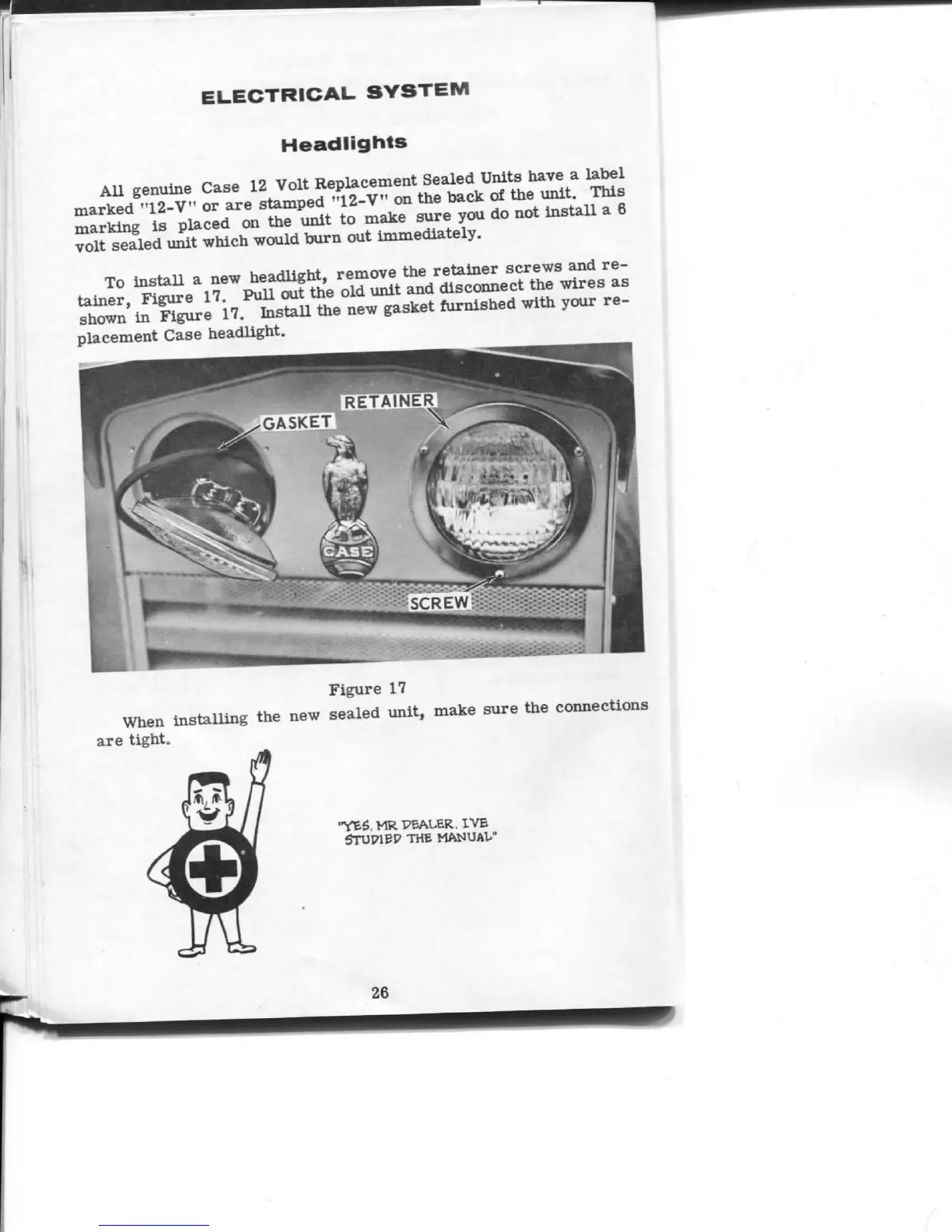

Figure 17
When installing the new sealed unit, make sure the connections
are tight.
•VtS, MR PEAtER. IVE
Stupiep the MAMUAL"
26
