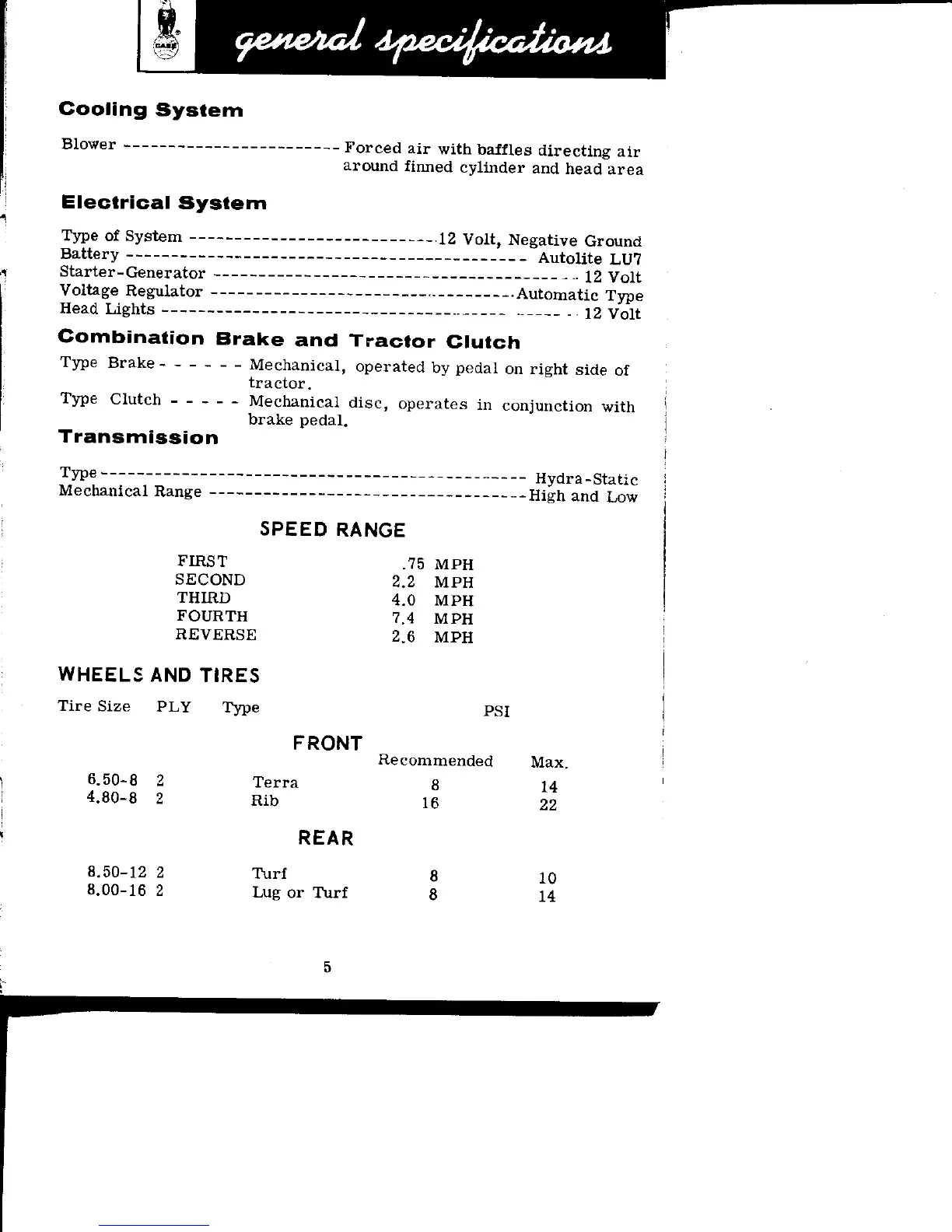

Case 120 - GENERAL SPECIFICATIONS; Cooling System; Electrical System Overview; Transmission Specifications

Cooling System
Blower Forced air with baffles directing air
around finned cylinder and head area
Electrical System
Type of System 12 Volt, Negative Ground
Battery Autolite LU7
Starter-Generator 12 Volt
Voltage Regulator Automatic Type
Head Lights -12 Volt
Combination Brake and Tractor Clutch
Type Brake Mechanical, operated by pedal on right side of
tractor.
Type Clutch Mechanical disc, operates in conjunction with
brake pedal.
Transmission
Type Hydra-Static
Mechanical Range High and Low
SPEED RANGE
FIRST .75 MPH
SECOND 2.2 MPH
THIRD 4.0 MPH
FOURTH 7.4 MPH
REVERSE 2.6 MPH
WHEELS AND TIRES
Tire Size PLY Type PSI
FRONT
Recommended Max.
6.50-8 2 Terra 8 14
4.80-8 2 Rib 16 22
REAR
8.50-12 2 Turf 8 10
8.00-16 2 Lug or Turf 8 14
5
