Case 120 - OPERATING CONTROLS AND INSTRUMENTS; Starter Key and Choke Operation; Throttle Lever Operation

OPERATING CONTROLS AND INSTRUMENTS
DISCNGAOE THAT

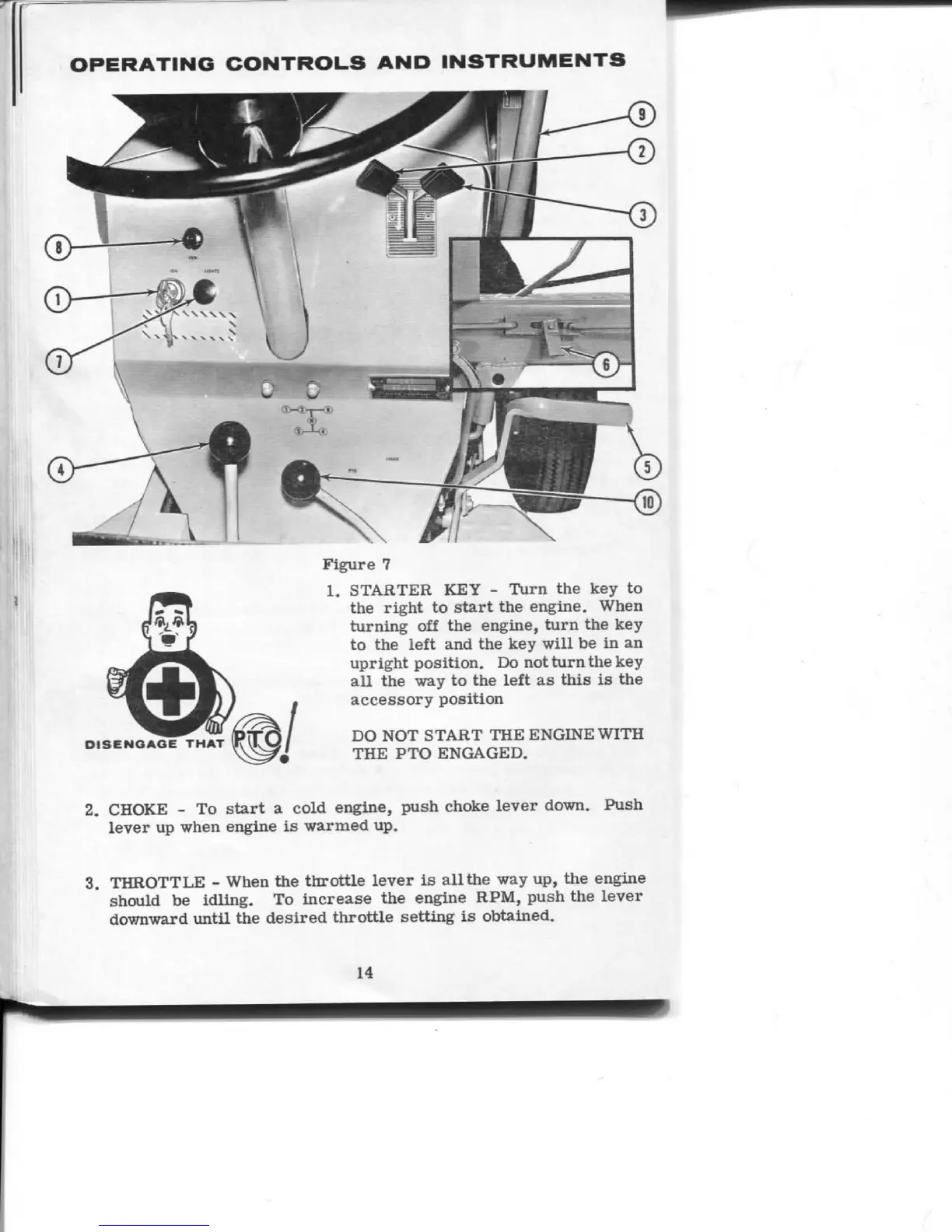

Figure 7
1. STARTER KEY - Turn the key to
the right to start the engine. When
turning off the engine, turn the key
to the left and the key will be in an
upright position. Do not turn the key
all the way to the left as this is the
accessory position
DO NOT START THE ENGINE WITH
THE PTO ENGAGED.
2. CHOKE - To start a cold engine, push choke lever down. Push
lever up when engine is warmed up.
3. THROTTLE - When the throttle lever is all the way up, the engine
should be idling. To increase the engine RPM, push the lever
downward until the desired throttle settii^ is obtained.
14
