Case 120 - OPERATING CONTROLS (Continued); Implement Lift Lever; PTO Lever Operation

OPERATING CONTROLS (Continued)
9. IMPLEMENT LIFT LEVER - The implement lever is used to
raise or lower the implement and also to hold the implement at
any given level. The wing nut at the base can be turned in or out
to adjust the minimum operating height of an attachment. When
transporting the attachment, pull the lift lever back until the
catch engages. Depress the button at the top of the lever to re-
lease and lower the attachment to desired operating height. A
slight pulling pressure on the lever will permit the release
button to be more easily depressed.
PTO LEVER - To engage the
attachment drive clutch, move
the PTO lever to the right. To
disengage, move the lever back
to the left. Be sure the PTO
lever is in the off position when
parking or starting the Tractor.

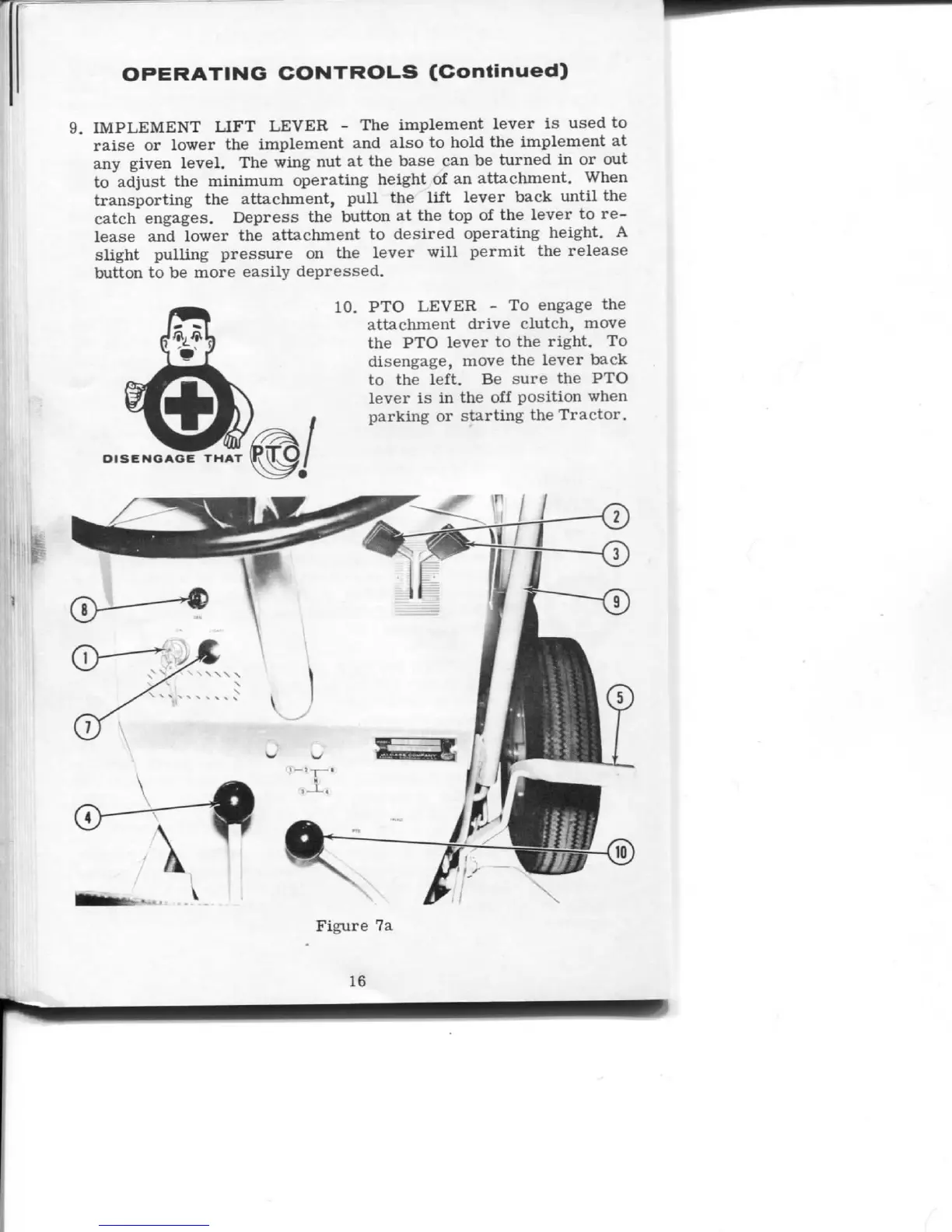

Figure 7a
16
