SECTION 21 - TRANSMISSION 85

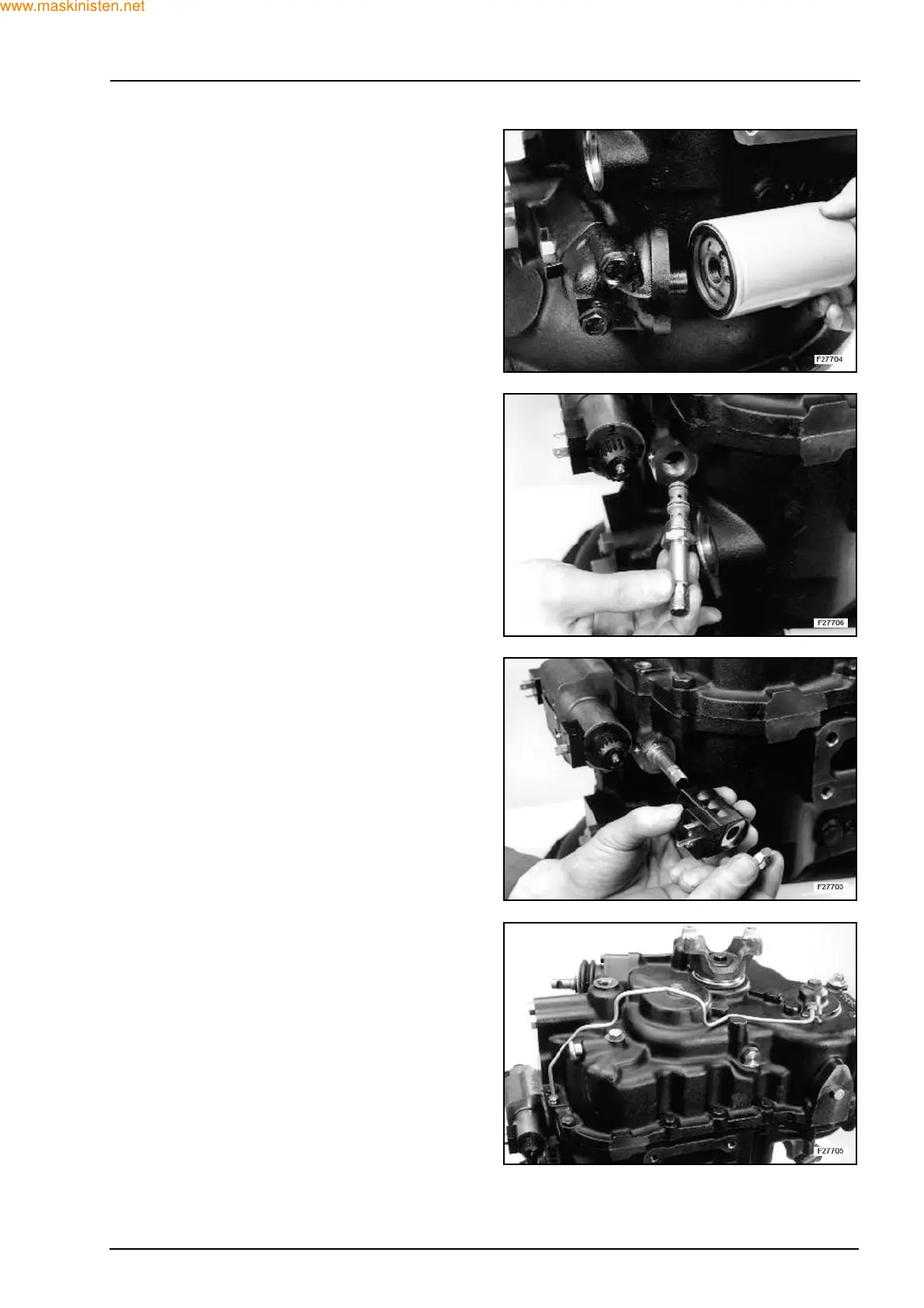

Lubricate the seal with a light grease and screw on
a new oil filter. Tighten to a torque of 7 to 10 Nm, or
a half to three quarters of a turn after initial seal con-
tact.
Slightly lubricate the seals and refit the 4WD sole-
noid valve spool (on 4WD models only).
Tighten to a torque of 20-27 Nm.
Remove the 4WD solenoid coil and the nut (on 4WD
models only). Tighten to a torque of 5.4 Nm maxi-
mum.
If previously removed refit the 4WD clutch supply
pipe, apply sealant (Loctite 542) to threads and tight-
en nuts to a torque of 6.8-10.2 Nm.
