Case 885B VHP - Transport and Maintenance Service Pin; Engine Hood

CHAPTER 6 – LUBRICATION / FILTERS / FLUIDS
6-3
WARNING: Keep clear of this area when engine is running. Machine could pivot unless the transport and
service pin is in its LOCKED position. After servicing is completed, unlock the transport and service pin and
secure in place on the rear frame pivot.
Before you transport or service this machine, always put the Transport / Service pin in the LOCKED position.

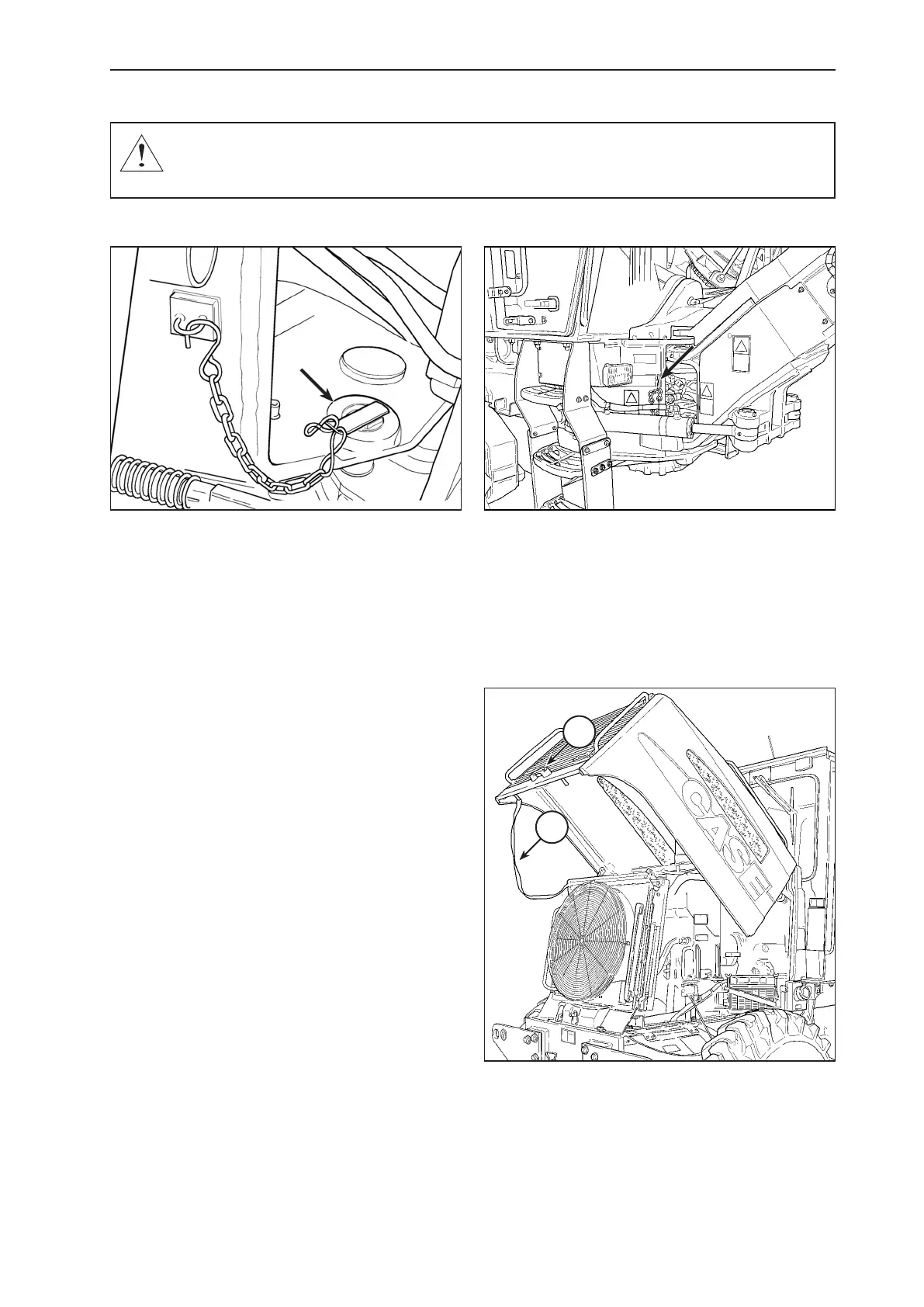

TRANSPORT AND MAINTENANCE SERVICE PIN
STRAIGHT AHEAD LOCKED POSITION OPERATING POSITION
After servicing and before you move the machine, return the Transport / Service pin in the OPERATING position.
ENGINE HOOD
Push lock button and raise hood to open. Open hood 1.
until support strut locks full open.
To close hood, pull down the strap (2) while pushing 2.
strut release tab.
1
2
HANDLE1.
STRAP2.
