Case 885B VHP - Hydraulic Tank and Engine Fuel Filter

CHAPTER 6 – LUBRICATION / FILTERS / FLUIDS
6-11

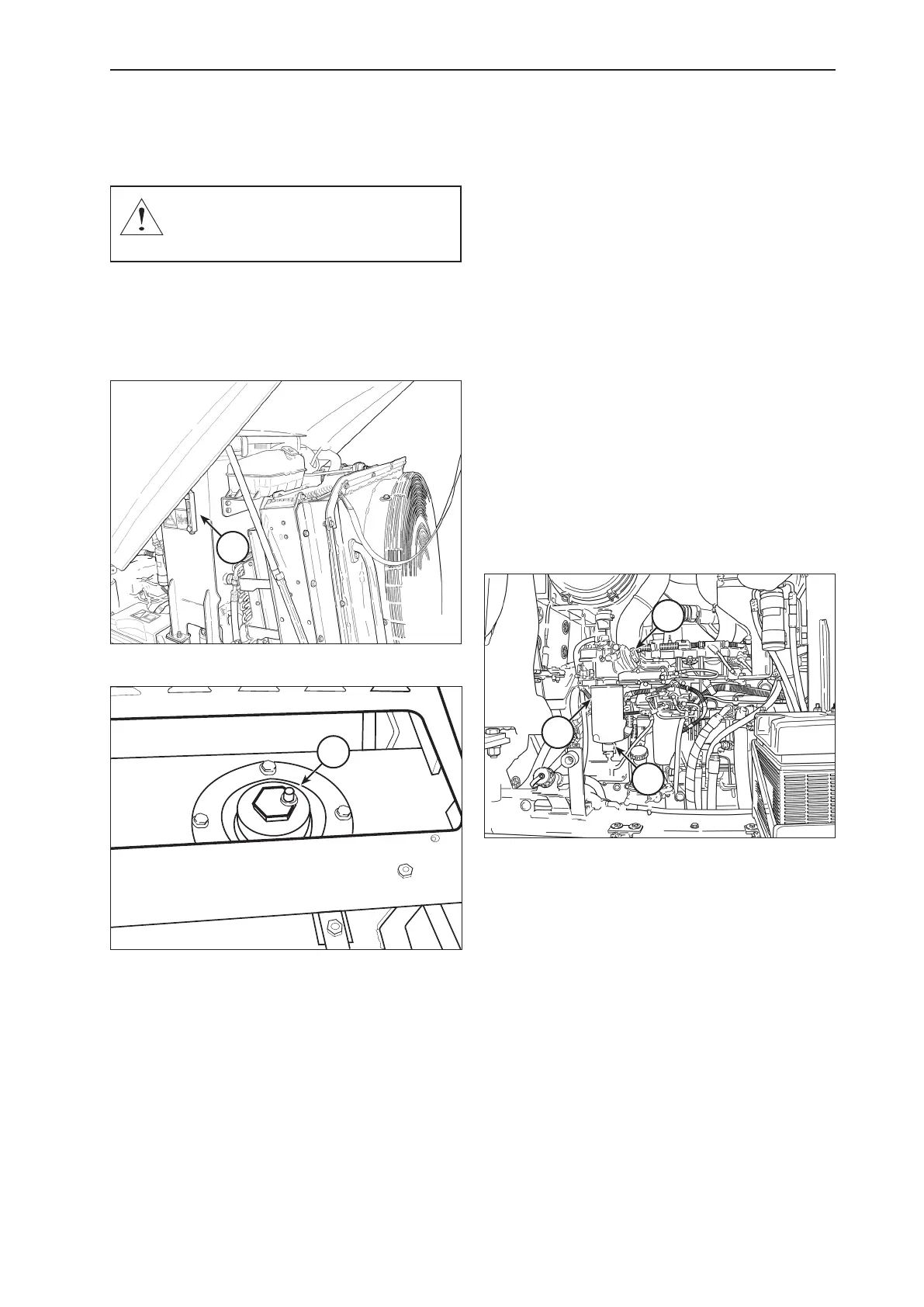

Hydraulic Tank
WARNING: Fluid under pressure. Turn the
cap (2) slowly to relieve the pressure, before
removing.
Be sure the machine is on level ground with the engine
off. Lower the moldboard to the ground. Check the oil le-
vel through sight gauge (1). The oil level should be at the
center of the gauge. If necessary, remove the hydraulic
tank ller cap (2) and add oil.
1
OIL LEVEL GAUGE1.
2
HYDRAULIC TANK FILLER CAP2.
Fuel Filter Draining
Drain the water from the separator lter, proceeding as
follows.
Remove the electric connector from the lower part of 1.
the water separator lter.
Open the drain valve (2) by turning it completely clo-2.
ckwise. The drain valve is part of the water presence
sensor connector.
Drain the accumulated water until clean fuel drains 3.
out.
Close the drain valve and tighten it rmly. 4.
Close the drain valve and reinstall the electric con-5.
nector.
Using the lter head manual pump handle (3), pump 6.
until the system is lled again with fuel. A higher resis-
tance will be sensed on the handle.
IMPORTANT: The drain valve is plastic. Do not tighten
excessively when closing.
1
2
3
WATER SEPARATOR FILTER1.
SEPARATOR FILTER DRAIN VALVE2.
MANUAL PUMP3.
HYDRAULIC TANK AND ENGINE FUEL FILTER
Each 50 hours services
