INTRODUCTION

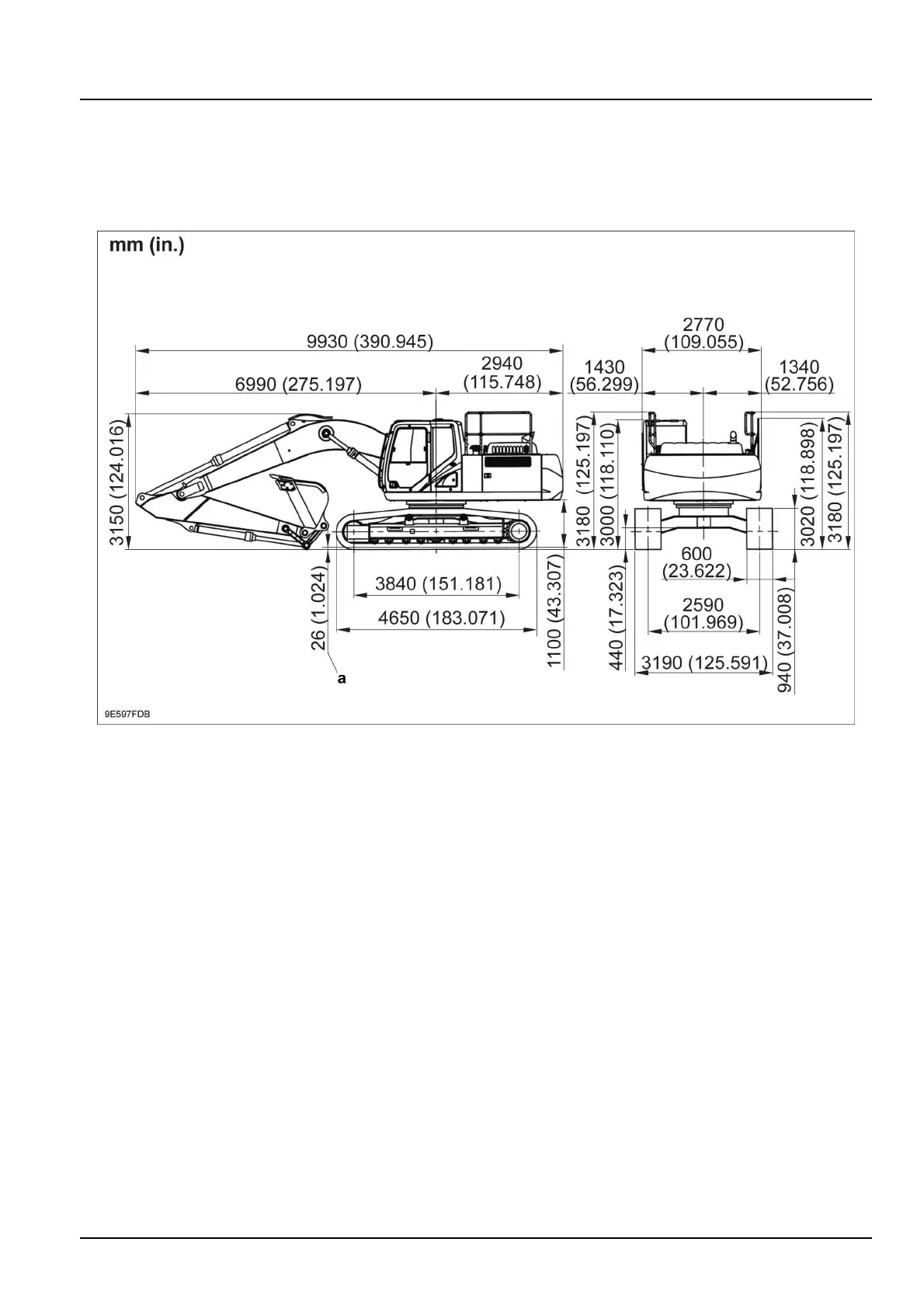

Dimension
Standardarm[3.00m(9.8425ft)]
NOTE:Numbersaresubjecttochangewithoutnoticeduetodesignchangeorotherreason.
Thediagramsgivevaluesthatincludetheshoelugheight“a”[26mm(1.024in)].
9E597FDB1
4809034402/01/2017
31
