Case CX250C User Manual

INTRODUCTION
Productidentication-Machineorientation
Theterms"Right-hand","Left-hand","Front"and"Rear"
areusedinthismanualtoindicatethesidesastheyare
seenfromtheoperator'sseatwhenthecabisoverthe
idlerwheels.
NOTE:theillustrationshowsthemachineinnormaltravel
position.Innormaltravelposition,thecabisoverthe
idlerwheels.Thetravelreductiongearsareattherear
oftheupperstructure.Thismanualusestheterms“right”,
“left”,“front”and“rear”toshowthesideviewedfromthe
operator'sseatwhenthecabislocatedabovetheidler
wheel.

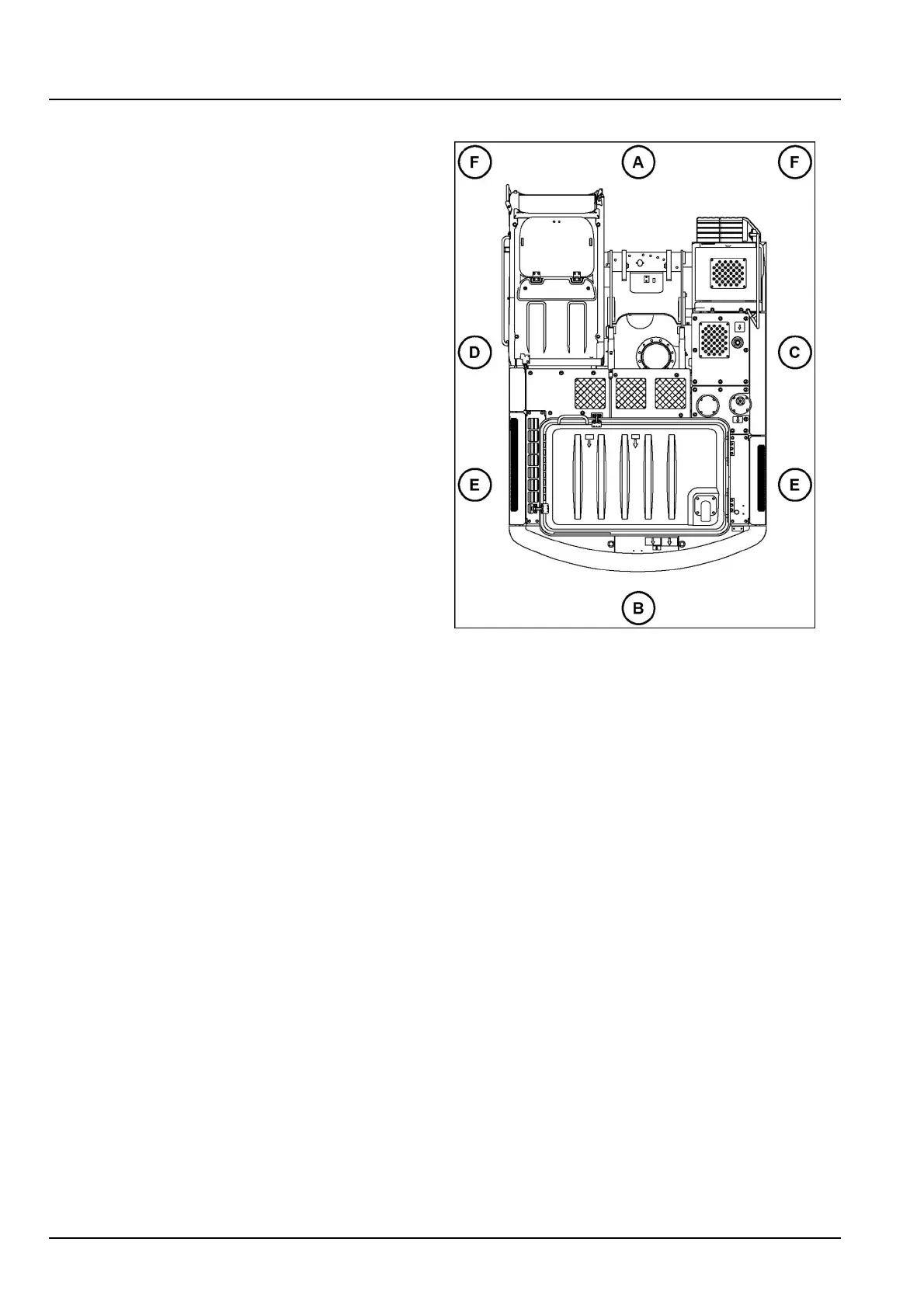

A.Front
B.Rear
C.Rightside
D.Leftside
E.Travelmotor
F.Idlerwheel
SMIL16CEX1389BB1
4809034402/01/2017
