INTRODUCTION

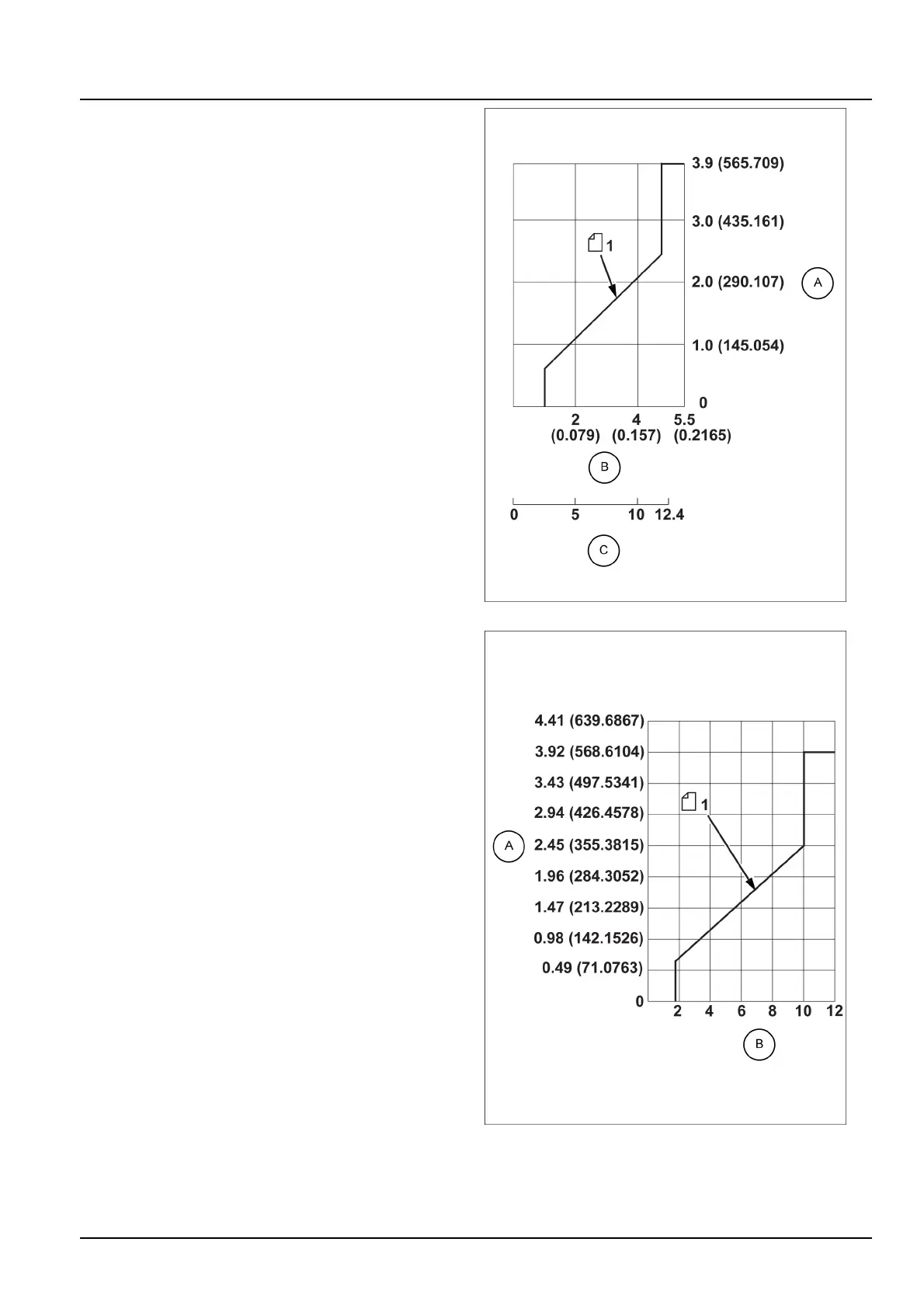

Travelremotecontrolvalvecontroldiagram
A.
Secondarypressure[MPa(psi)]
B.
Pushrodstroke[mm(in)]
C.
Pedaloperatingangle[deg.]
1
Secondarypressure
SMIL15CEX1701BB3
Optionremotecontrolvalvecontroldiagram
A.
Secondarypressure[MPa(psi)]
B.
Operatingangle[deg.]
1
Secondarypressure
SMIL15CEX1702BB4
4787701401/07/2015
25
