INTRODUCTION

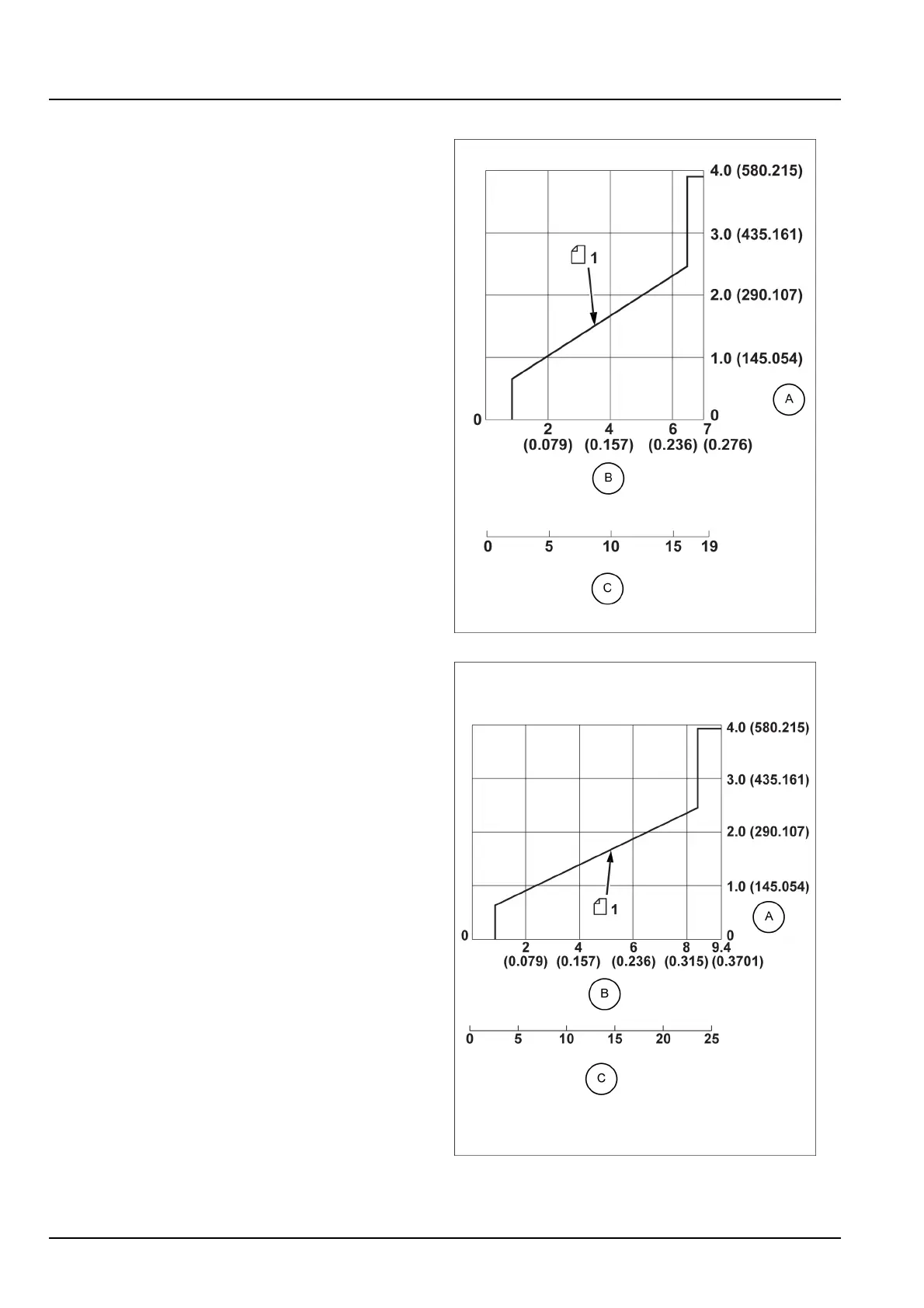

Remotecontrolvalvecharacteristicdiagram
Operationremotecontrolvalvecontroldia-
gram
A.
Secondarypressure[MPa(psi)]
B.
Pushrodstroke[mm(in)]
C.Operatingangle[deg.]
1
Secondarypressure
SMIL15CEX1699BB1
A.
Secondarypressure[MPa(psi)]
B.
Pushrodstroke[mm(in)]
C.Operatingangle[deg.]
1
Secondarypressure
SMIL15CEX1700BB2
4787701401/07/2015
24
