SECTION 2 - OPERATION
2-4

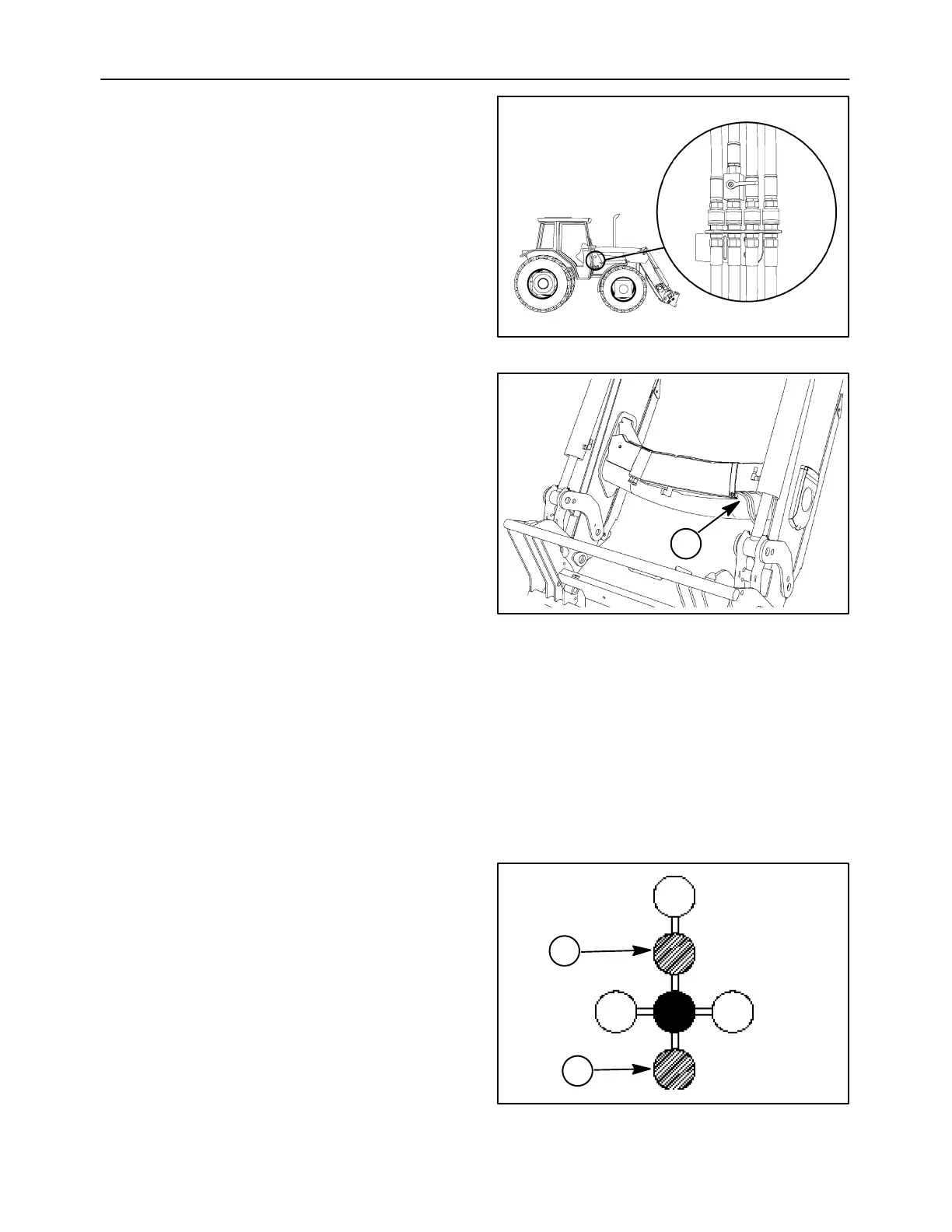

Four hoses are connected directly between the
tractor’s hydraulic system and the loader.
0130
7
The loader may be equipped with a third hydraulic
function. A solenoid valve, 1, is then installed on the
cross tube of the tractor or on the rear of the tractor.
0134
1
8
OPERATION OF THE LOADER
IMPORTANT: Tractors with front axle suspension.
The loader causes increased wear on the
components in the front suspension. Always lock out
the front suspension if this facility is available. Read
the tractor’s instruction manual.
Loader-Mounted Valve
NOTE: All controls (except for float position) return to
neutral when the lever is released.
Raise/Lower the Loader
Move the lever backwards, 1, to lift the loader arm.
Move the lever forwards, 2, to lower the loader arm
with constant pressure.
0135a
1
2
9
