Case WX148 - Page 32

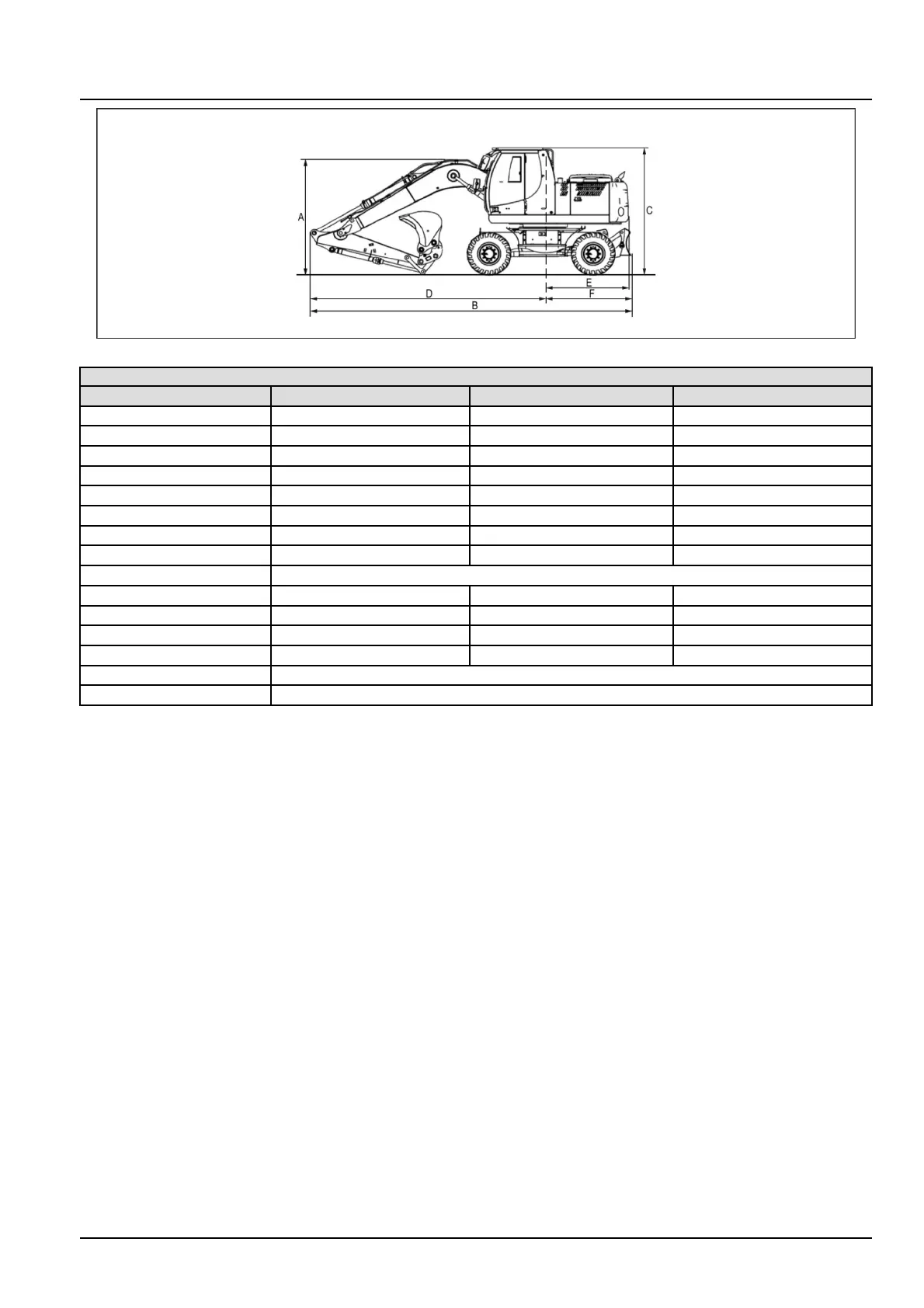

INTRODUCTION
SMIL12WEX0086EA6
Rearblade
Dipper
210024502950
A
2884mm(113.5in)2972mm(117.0in)3298mm(129.8in)
A1
2884mm(113.5in)2972mm(117.0in)3298mm(129.8in)
A2
2884mm(113.5in)2972mm(117.0in)3298mm(129.8in)
A3
2830mm(111.4in)2899mm(114.1in)3156mm(124.3in)
B
7846mm(308.9in)7877mm(310.1in)7895mm(310.8in)
B1
7846mm(308.9in)7877mm(310.1in)7895mm(310.8in)
B2
7846mm(308.9in)7877mm(310.1in)7895mm(310.8in)
B3
7818mm(307.8in)7851mm(309.1in)7909mm(311.4in)
C
3181mm(125.2in)
D
5752mm(226.5in)5783mm(227.7in)5801mm(228.4in)
D1
5752mm(226.5in)5783mm(227.7in)5801mm(228.4in)
D2
5752mm(226.5in)5783mm(227.7in)5801mm(228.4in)
D3
5724mm(225.4in)5757mm(226.7in)5815mm(228.9in)
E
2041mm(80.4in)
F
2094mm(82.4in)
1.Withbucketonly
2.Withquickcoupleronly
3.Withoutquickcouplerandbucket
Maximummachinewidth:2550mm(100.4in)
DimensionsmeasuredwithMITAS10.00-20twintyres.
