INTRODUCTION
SMIL12WEX0085EA5

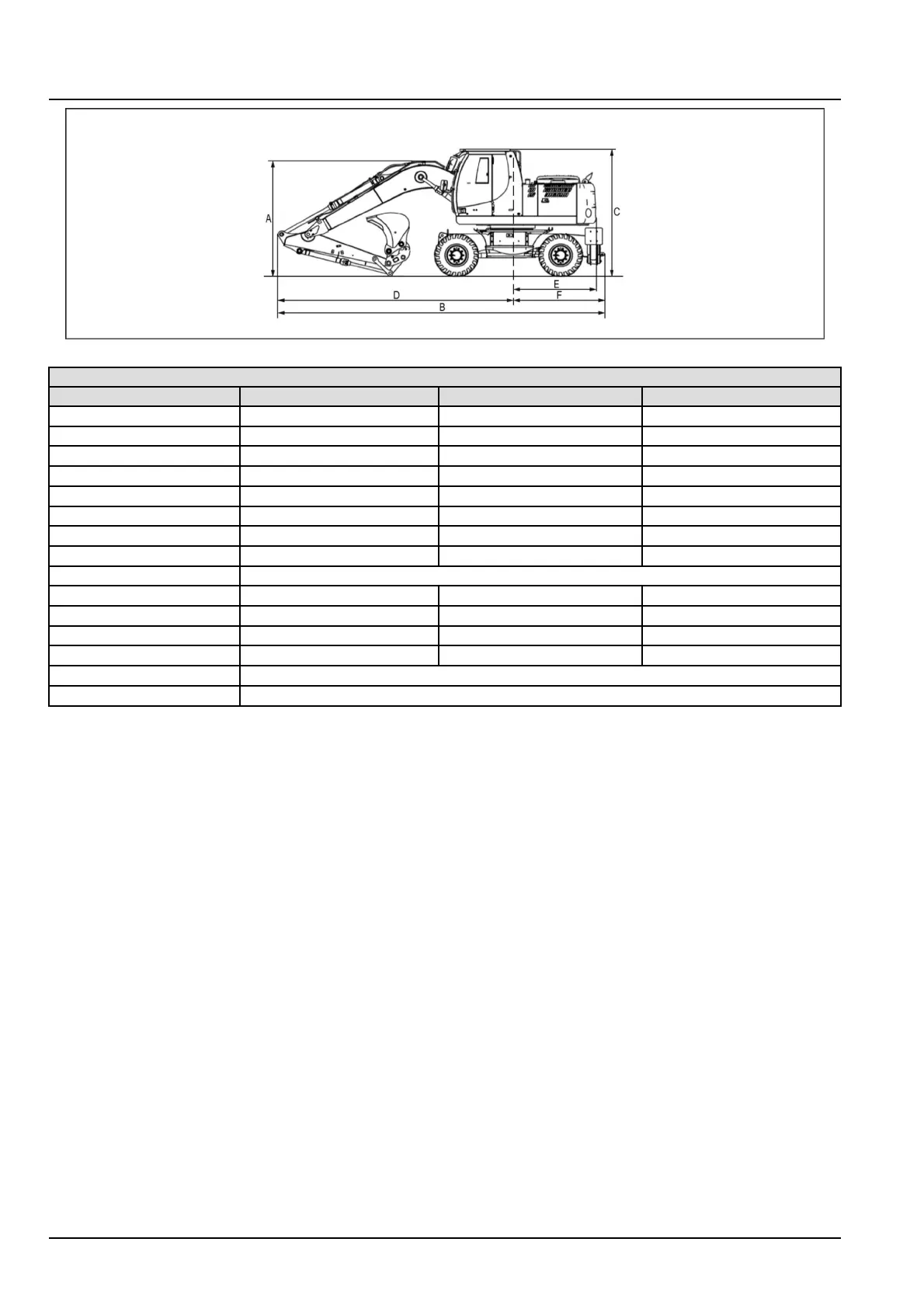

Rearstabilizers
Dipper
210024502950
A
2884mm(113.5in)2972mm(117.0in)3298mm(129.8in)
A1
2884mm(113.5in)2972mm(117.0in)3298mm(129.8in)
A2
2884mm(113.5in)2972mm(117.0in)3298mm(129.8in)
A3
2830mm(111.4in)2899mm(114.1in)3156mm(124.3in)
B
8012mm(315.4in)8043mm(316.7in)8061mm(317.4in)
B1
8012mm(315.4in)8043mm(316.7in)8061mm(317.4in)
B2
8012mm(315.4in)8043mm(316.7in)8061mm(317.4in)
B3
7984mm(314.3in)8017mm(315.6in)8075mm(317.9in)
C
3181mm(125.2in)
D
5752mm(226.5in)5783mm(227.7in)5801mm(228.4in)
D1
5752mm(226.5in)5783mm(227.7in)5801mm(228.4in)
D2
5752mm(226.5in)5783mm(227.7in)5801mm(228.4in)
D3
5724mm(225.4in)5757mm(226.7in)5815mm(228.9in)
E
2041mm(80.4in)
F
2260mm(89.0in)
1.Withbucketonly
2.Withquickcoupleronly
3.Withoutquickcouplerandbucket
Maximummachinewidth:2550mm(100.4in)
DimensionsmeasuredwithMITAS10.00-20twintyres.
