INTRODUCTION

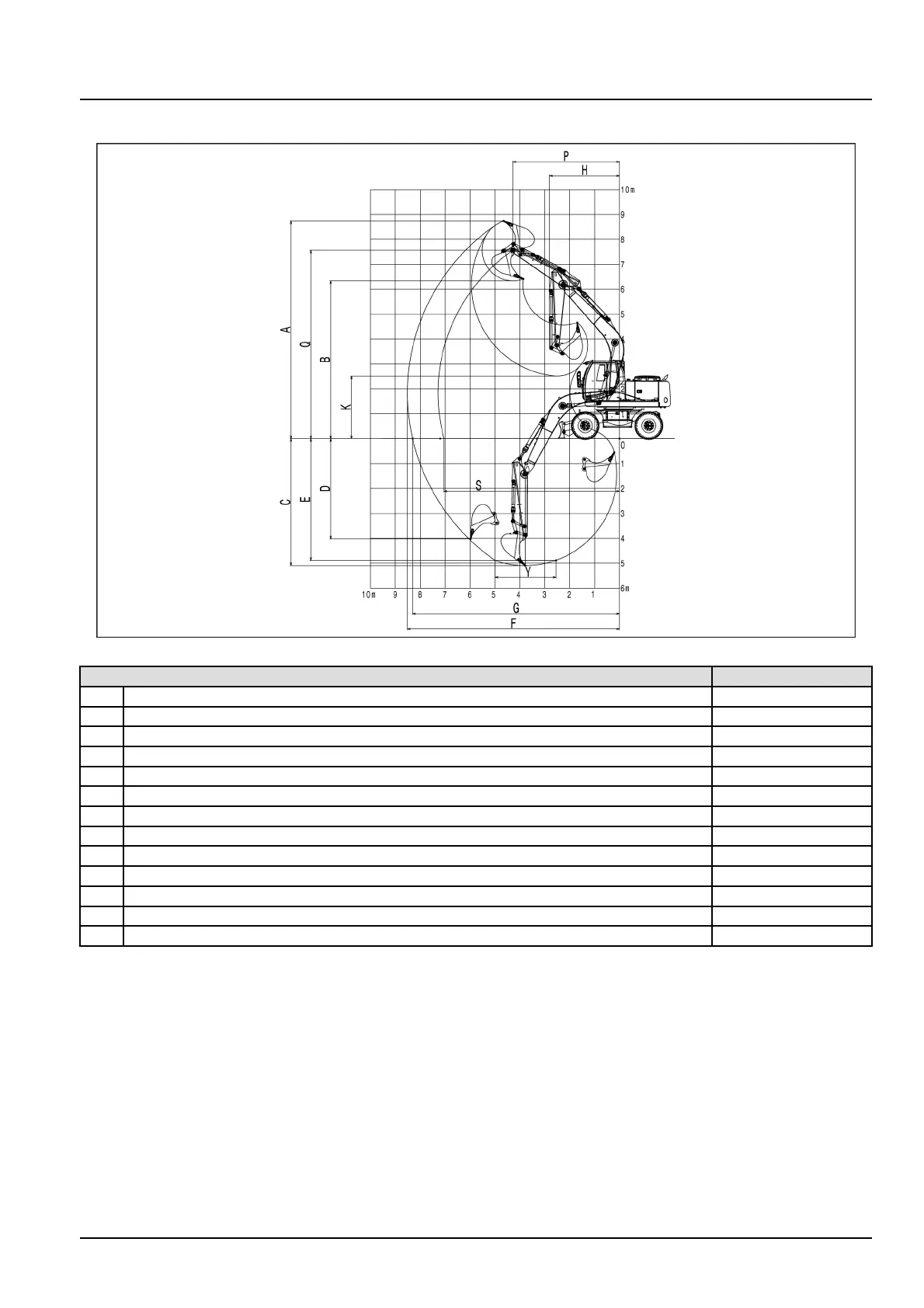

Dipper-2450mm(96.5in)
SMIL12WEX0038FA5
Bucketradius
1222mm(48.1in)
A
Maximumdiggingheight
8730mm(343.7in)
B
Maximumloadingheight
6330mm(249.2in)
C
Maximumdiggingdepth
5100mm(200.8in)
D
Maximumverticalwalldiggingdepth
4020mm(158.3in)
E
Maximumdiggingdepthofcutforlevelbottom4890mm(192.5in)
F
Maximumdiggingreach
8510mm(335.0in)
G
Maximumdiggingreachatgroundlevel
8300mm(326.8in)
H
Minimumswingradius
2800mm(110.2in)
K
Maximumloadingheight(dipperretracted)2510mm(98.8in)
Y
Maximumdiggingdepthbuckingmovement
2440mm(96.1in)
P
Maximumswingradiusofbuckingconnection4280mm(168.5in)
Q
Maximumheightofbuckingconnection7560mm(297.6in)
S
Maximumreachatgroundlevelofbuckingconnection7040mm(277.2in)
47500167A31/01/2013
31
