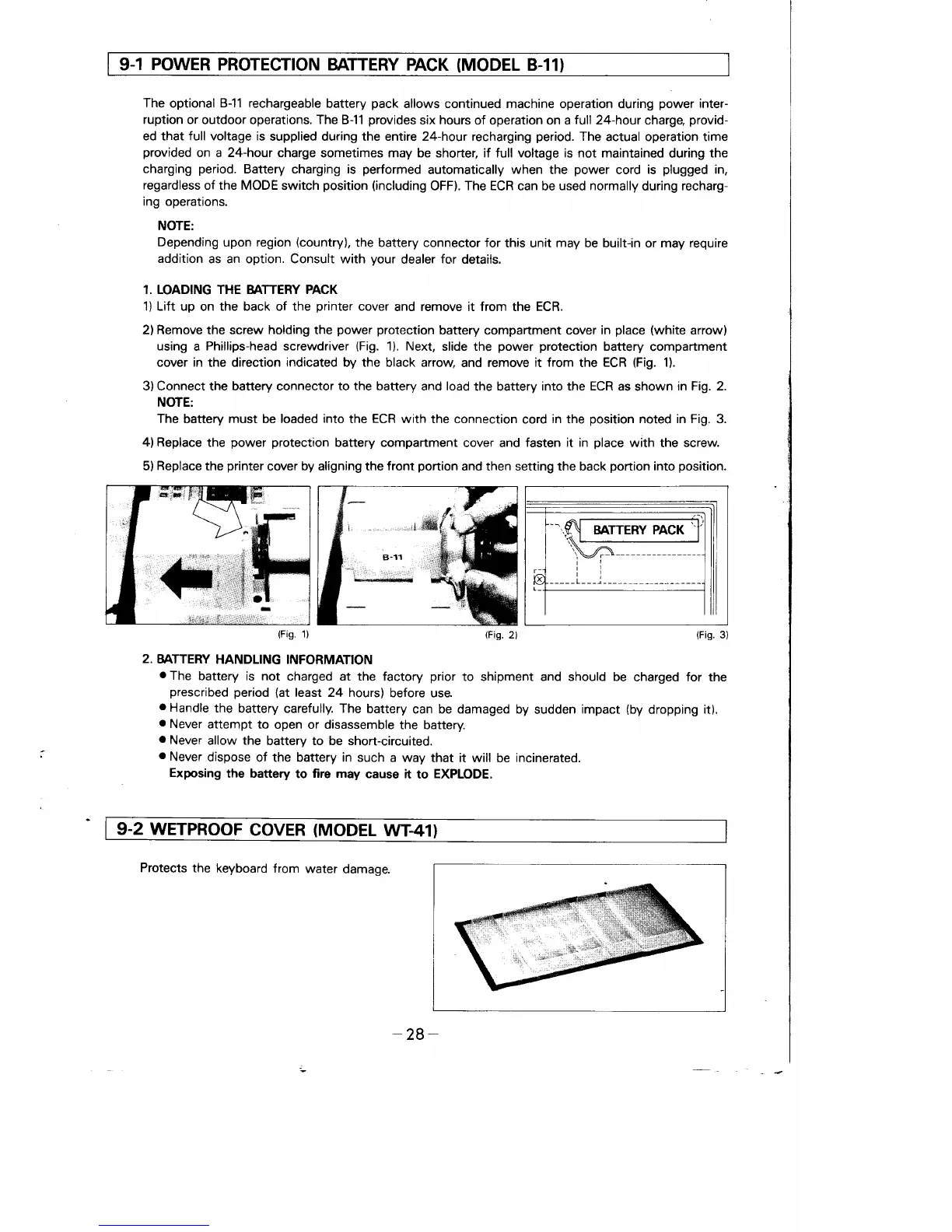

9-1
POWER
PROTECTION BATTERY
PACK
(MODEL
B.11}
The
optional
B-11 rechargeable
battery
pack
allows continued machine operation during
power
inter-
ruption
or outdoor operations. The B{1
provides
six
hours
of operation on a
full
24-hour charge,
provid-
ed that full voltage is
supplied during the entire 24-hour recharging
period.
The
actual operation time
provided
on a 24-hour
charge sometimes may be
shorter,
if full voltage is not maintained
during
the
charging
period.
Battery charging is
performed
automatically
when
the
power
cord
is
plugged
in,
regardless
of the MODE
switch
position
(including
OFF).
The ECR
can be
used normally
during
recharg-
ing
operations.
NOTE:
Depending
upon region
(country),
the battery connector for
this unit may be built-in
or
may require
addition
as an option. Consult with
your
dealer
for
details.
1. LOADING THE BATTERY PACK
1) Lift up
on
the back of the
printer
cover
and remove it from the ECB.
2) Remove the screw holding the
power protection
battery compartment cover
in
place
(white
arrow)
using
a
Phillips-head screwdriver
(Fig.
1). Next,
slide the
power protection
battery
compartment
cover in the direction indicated by the black
arrow, and remove
it from
the
ECR
(Fig.
1).
3) Connect the battery connector
to the
battery and load
the battery
into the ECR
as shown
in Fig. 2.
NOTE:
The
battery must be loaded
into
the
ECR
with the connection
cord
in
the
position
noted in Fig.
3.
4) Replace
the
power protection
battery compartment
cover and
fasten it in
place
with the screw
5)
Replace
the
printer
cover
by aligning the front
portion
and then setting the back
portion
into
position.
(Fis.
3)
2.
BATTERY
HANDLING
INFORMATION
.
The
battery is not
charged at the factory
prior
to shipment and should be
charged for the
prescribed
period
(at
least 24 hours)
before use.
.
Handle
the
battery carefully. The
battery
can be damaged by
sudden
impact
(by
dropping it).
.
Never
attempt to
open or disassemble
the battery.
.
Never
allow the
battery to be short-circuited.
o
Never
dispose
of the battery in
such a way
that
it
will be
incinerated.
Exposing
the battery
to
fire may
cause it
to EXPLODE.
9.2 WETPROOF
COVER
(MODEL
Wr-41)
Protects
the keyboard
from
water
damage.
(Fis.
1)
(Fis.
2l
-28-
