Casio Celviano AP-80R - Keyboard and Pedal Installation

E-39
Assembly Instructions

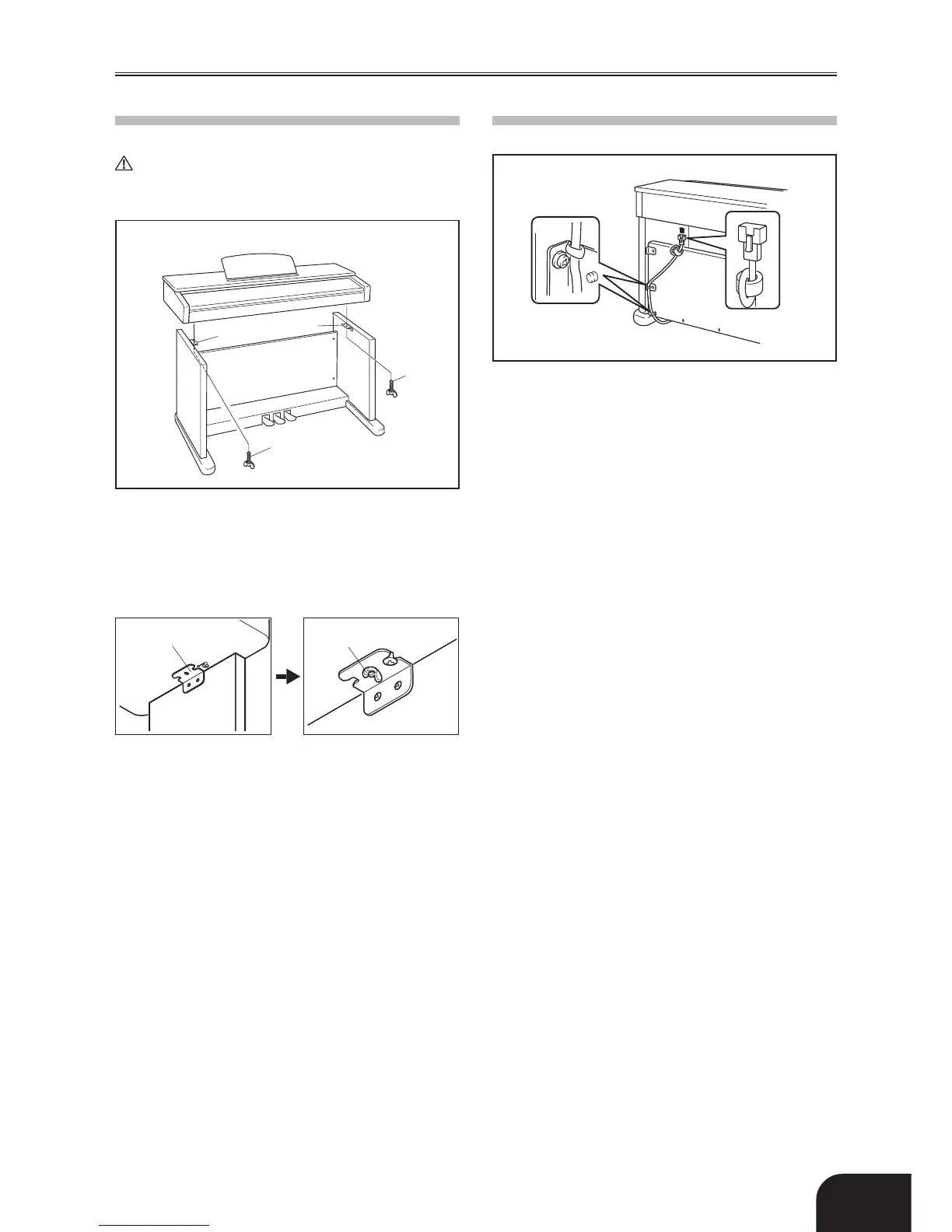

2 Installing the Keyboard onto the Stand
CAUTION
• Take care that you do not pinch your fingers between the
keyboard and stand!
Be sure that you securely anchor the keyboard to the stand using
the H butterfly bolts (Figure 6).
• Slide the screws on the bottom of the keyboard into the slots in
the two angle brackets 8. Next, secure the keyboard to the stand
with two butterfly bolts H (Figure 7).
• The butterfly bolts keep the keyboard from falling from the stand.
Be sure that you always secure the keyboard with the butterfly
bolts.
3 Connecting the Pedal
Position the pedal plug as shown in Figure 8 and insert it into the
pedal connector on the bottom of the digital piano. Secure the pedal
cable to the upright of the stand using the clips (Figure 8).
Figure 6
8
H
H
8
Figure 7
H
8
Front
Back
Figure 8
Clip
Pedal plug
429A-E-041A
