— 18 —
■

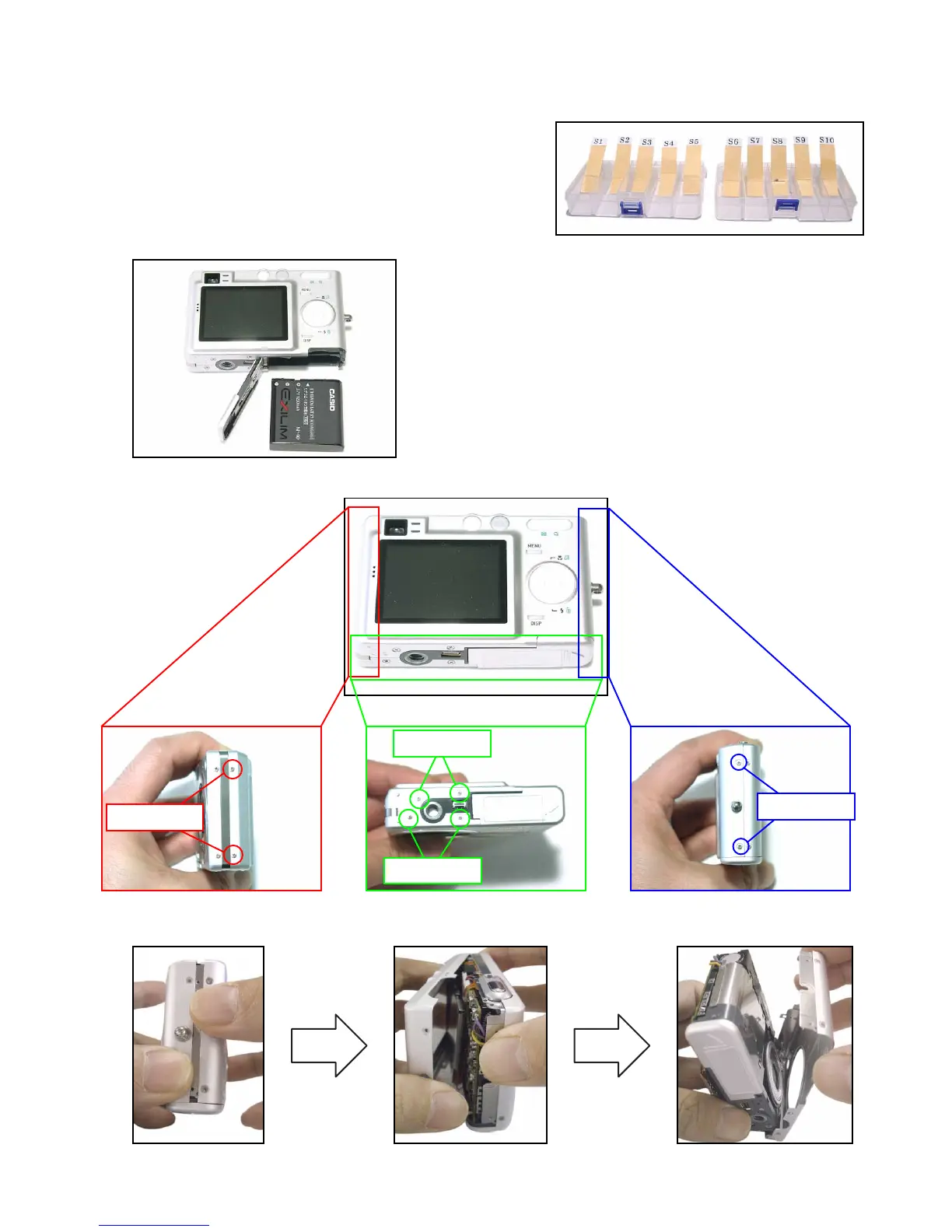

Make sure to use correct screws when assembling since
there are several kinds of them.
It is a good idea to sort them as shown in the right when
disassembling.
1.
Remove the battery.
DISASSEMBL
Y
■
Removing the case
2.
Remove eight screws.
3.
Remove the front and the rear panels.
Screws (S2)
Screws (S2)
Screws (S1)
Screws (S1)
19
21
Table of Contents
Table of Contents
2
Specifications
3
Power Requirements
5
Block Diagram
7
Test Mode
8
Program Version Upgrading
9
To Update the Firmware Version
9
How to Restore the Firmware
10
To Install the Firmware
11
Adj Tool
12
Preparation
12
How to Use ADJ Tool When Replacing Lens Unit
14
How to Use ADJ Tool When Replacing MAIN PCB
15
Vcom DC Adjustment
16
Current Consumption
19
The Countermeasure for "System Error
19
Disassembly
20
Exploded View
27
Parts List
28
Printed Circuit Boards
29
Schematic Diagrams
31
