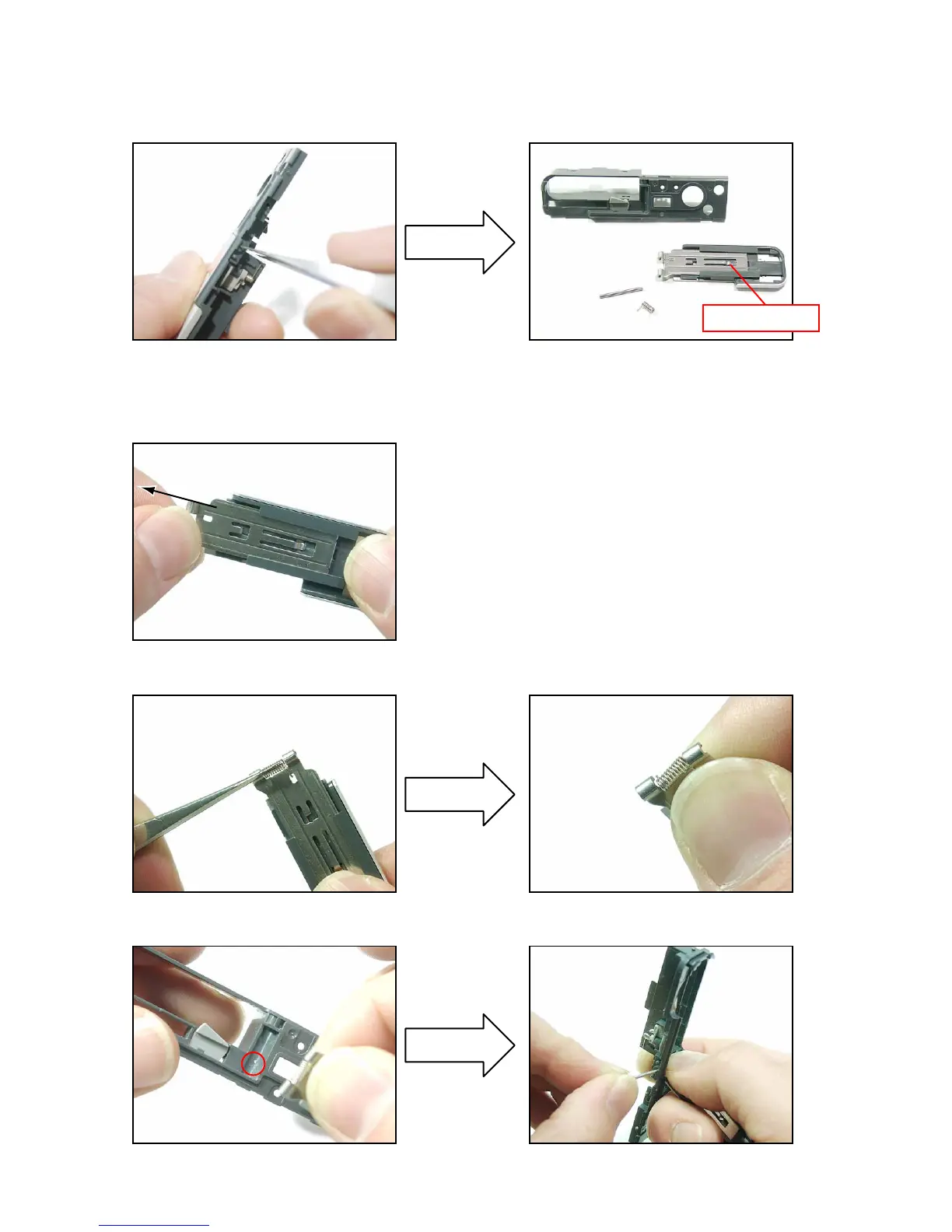

■ Disassembling the battery panel
23. Remove the pin and then the battery panel.
■ Assembling the battery panel
1. Extend the sliding part of the battery panel as shown below.
2. Insert the spring.
3. Insert the head of the spring into the battery panel, and then fix it with a pin.
Battery panel
