— 23 —

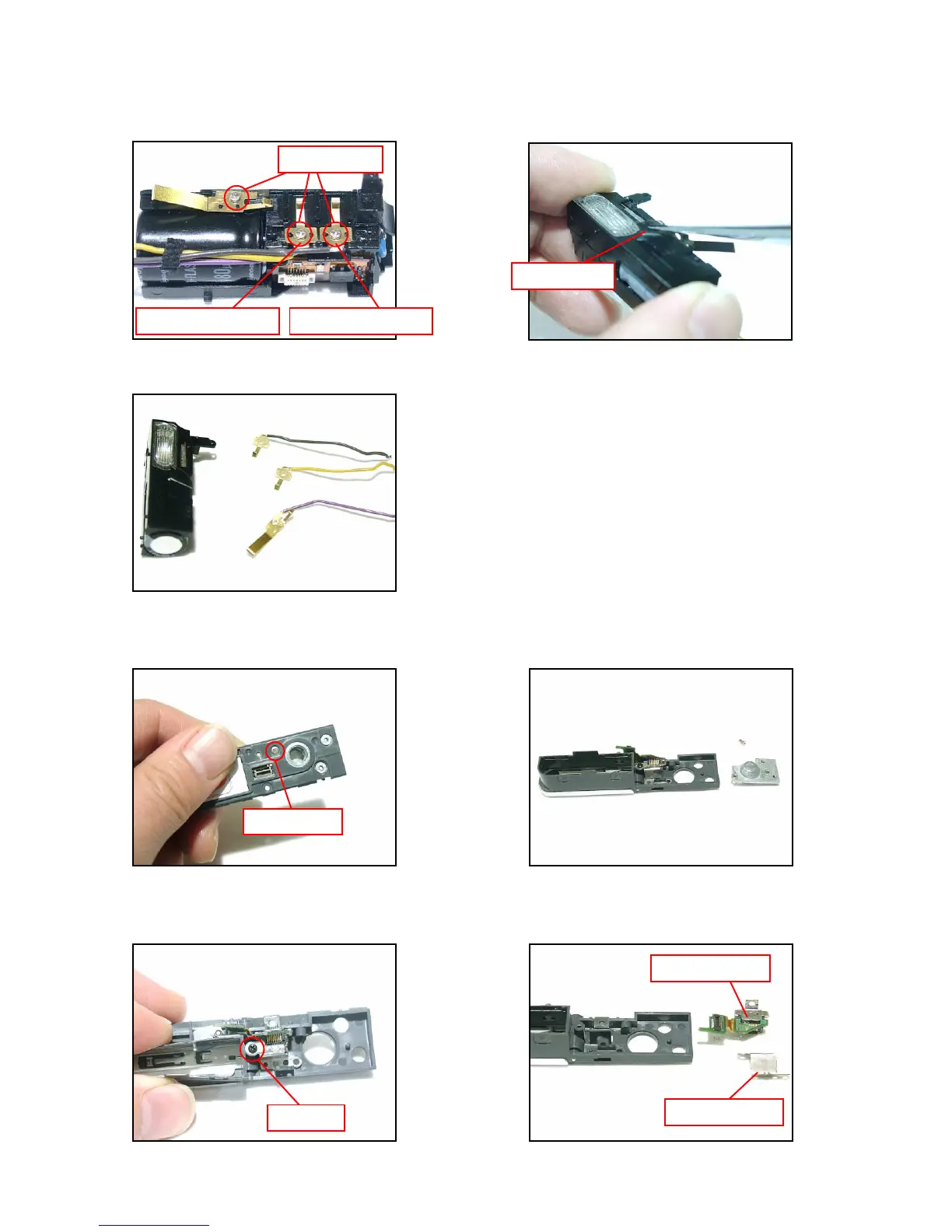

18. Remove three screws.
19. Remove the tape.
20. Remove three battery terminals.
■ Remove tripod screw
21. Remove one screw and then the tripod screw.
■ Removing the connector PCB
22. Remove one screw and then the clamp board and the connector PCB.
Tape
Yellow wire Gray wire
Screws (S4)
Screw
Clamp board
Connector PCB
Screw (S2)
