Casio LK-120 Service Manual & Parts Guide

LK-120
– 8 –
DISASSEMBLY

PANEL UNITA.

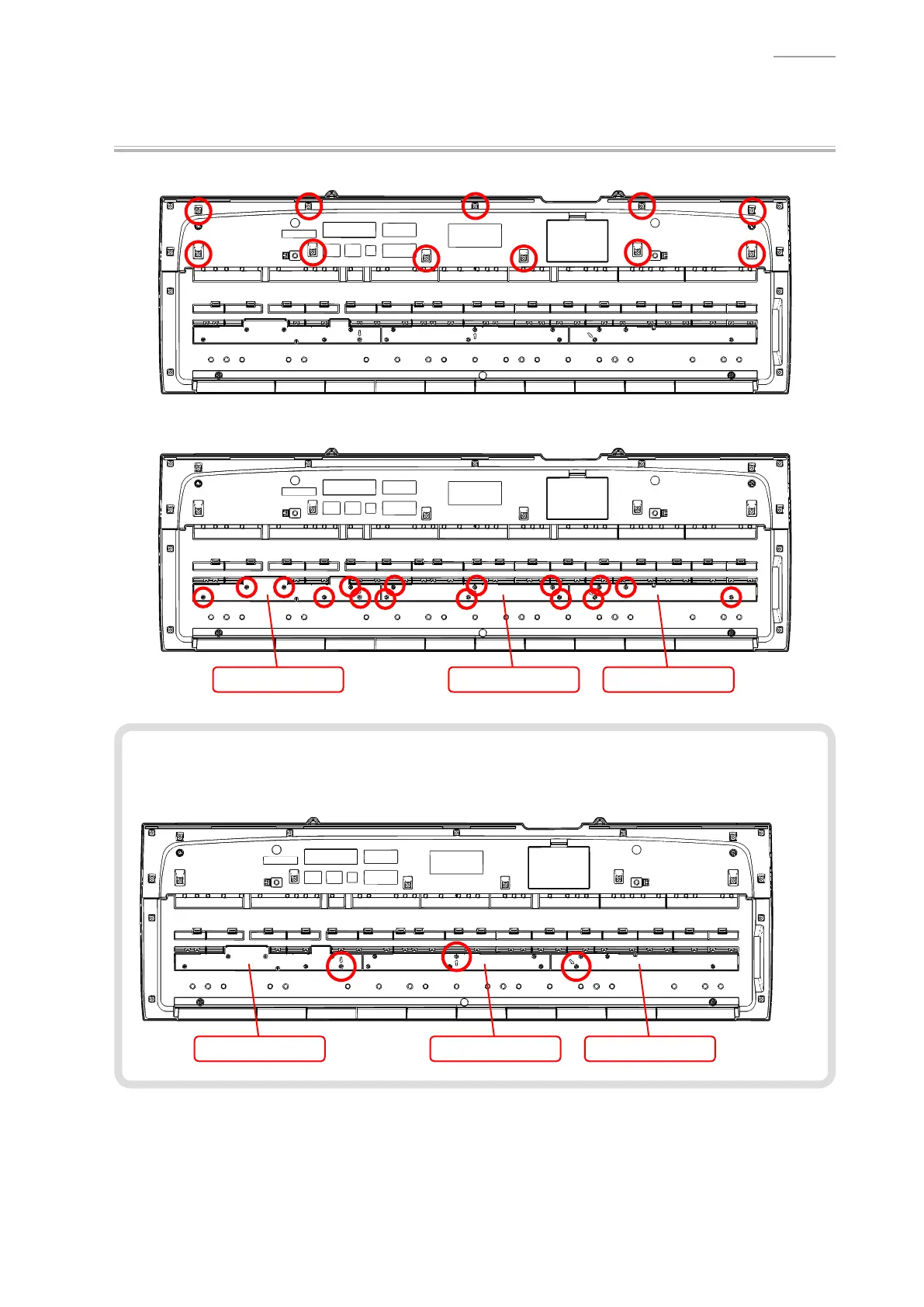

Undo 11 screws on the bottom surface of the main unitA-1.
When replacing the keyboard LED PCBs, undo 16 screws and then remove the L-COVER-A/B/C.A-2.
L-COVER-C L-COVER-B L-COVER-A
<Caution for installing L-COVER-A/B/C>
To install the L-COVER-A/B/C, tighten the screws indicated with arrows engraved on each cover
rst.
L-COVER-C L-COVER-B L-COVER-A

Casio LK-120 Specifications

General

MIDI-keyboard number of keys	61 keys
Interface	-
DC-in jack	Yes
Dimensions (WxDxH)	949 x 304 x 93 mm
Power consumption (typical)	7.7 W
Product color	Black, Grey

Weight and Dimensions

Weight	3400 g
