LK-125
– 10 –

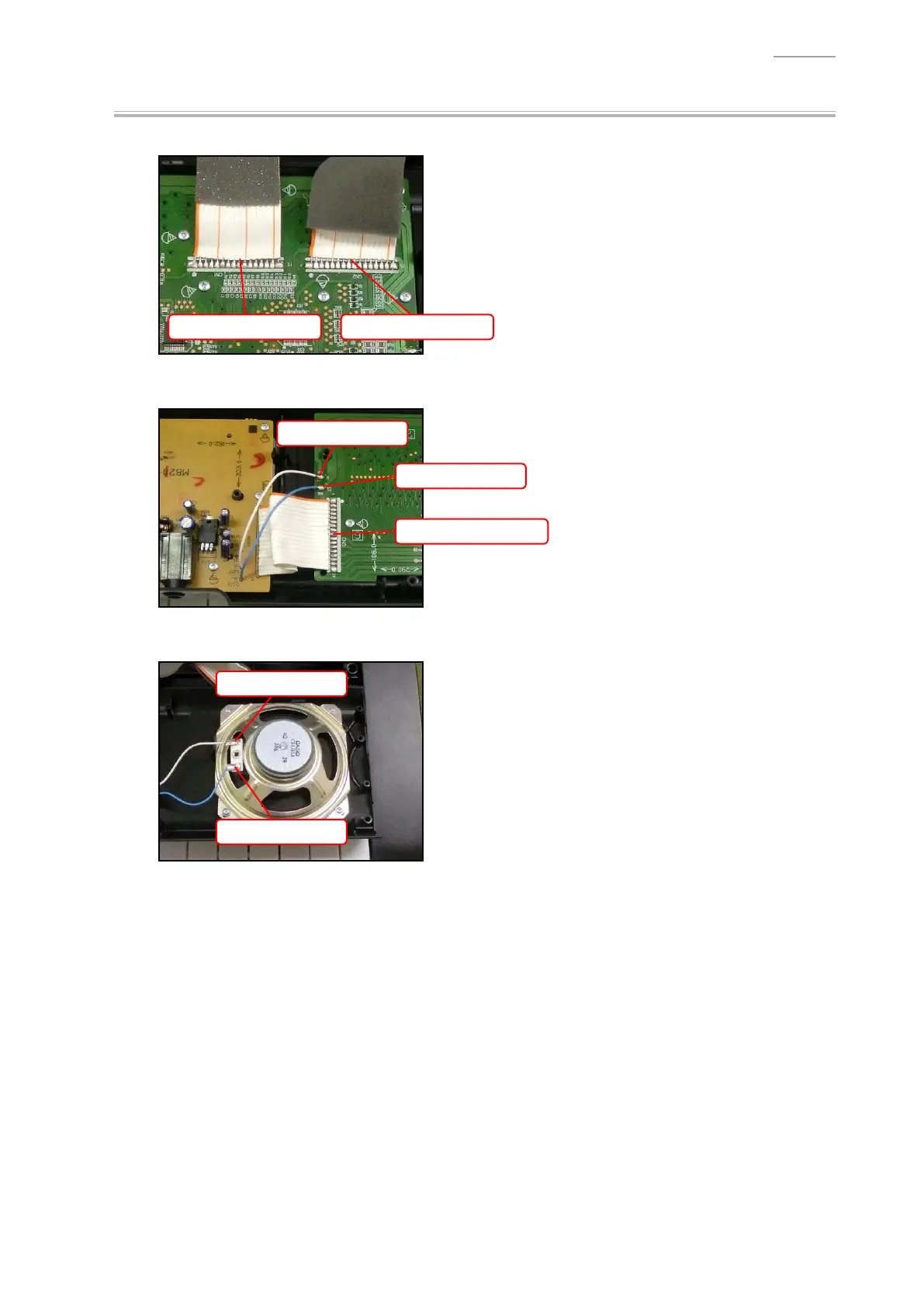

MAIN PCB (M821-MDA1)B.
Unsolder two FFCs.B-1.
FFC
(
M800-KYA2
)
FFC (M821-LDA2)
Unsolder two lead wires and one FFC.B-2.
Lead wire (White)
Lead wire (Blue)
FFC (M820-PSA1)
Unsolder two lead wires connected to the right speaker.B-3.
Lead wire (White)
Lead wire (Blue)
