LK-127
– 28 –

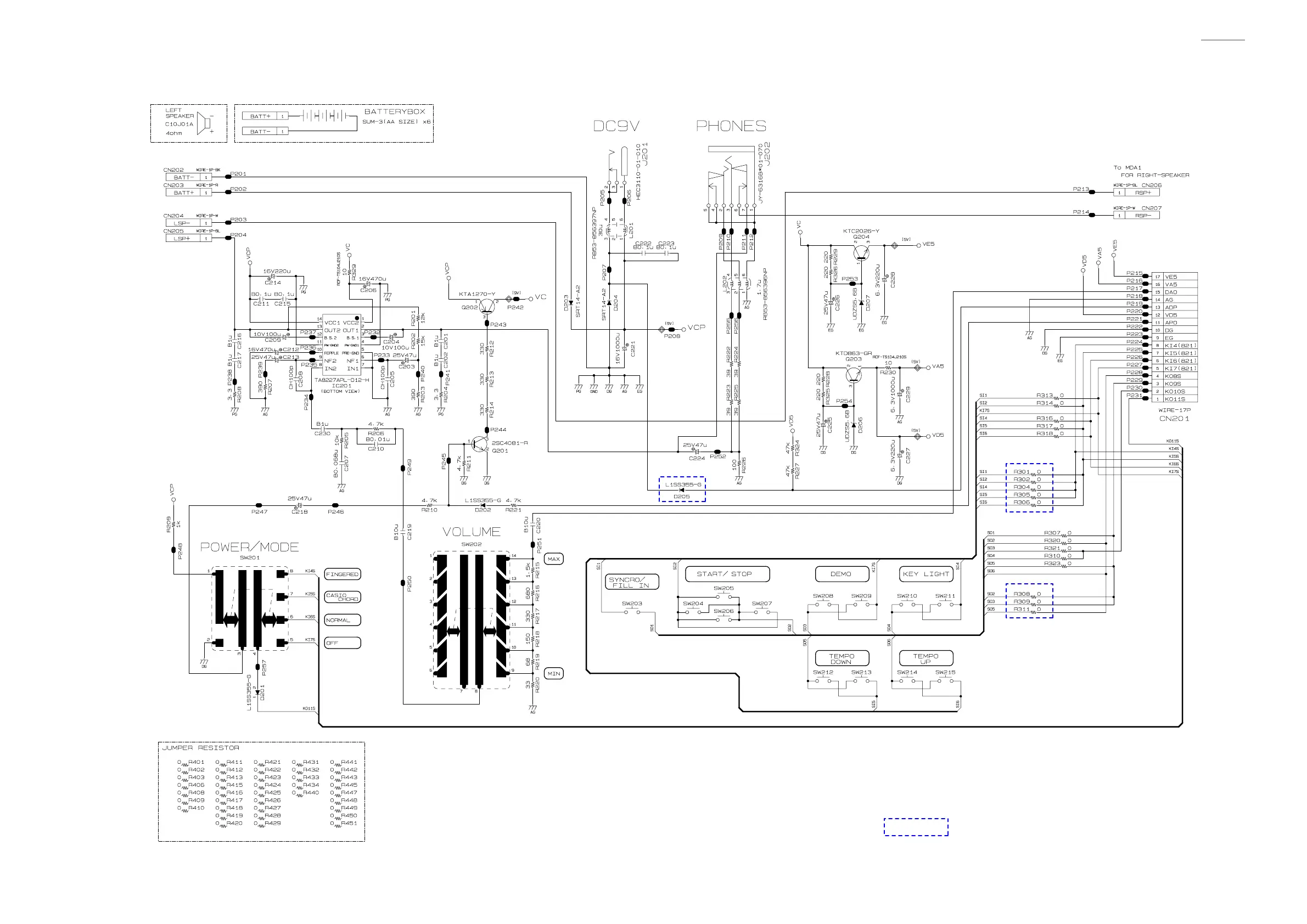

POWER & AMP PCB: M820-PSA1
(to BATTERY)
(to LEFT SPEAKER)
(to KYA2/CN803)
(to MDA1/CN3)
POWER/MODE
SWITCH
(SW201)
VOLUME
(SW202)
LEFT SPEAKER BATTERY
DC 9 V IN
(J201)
PHONES/OUTPUT
(J202)
(to MDA1/CN7)
(to MDA1/CN6)
: Not used
