Q1: Power transistor
Q2: Voltage detection transistor
Voltage level at above check point (unit: V )
Measurement
position
ABCD
Voltage (V) 12.5V 5.3V 6.2V 2.47V
5. CIRCUIT EXPLANATION

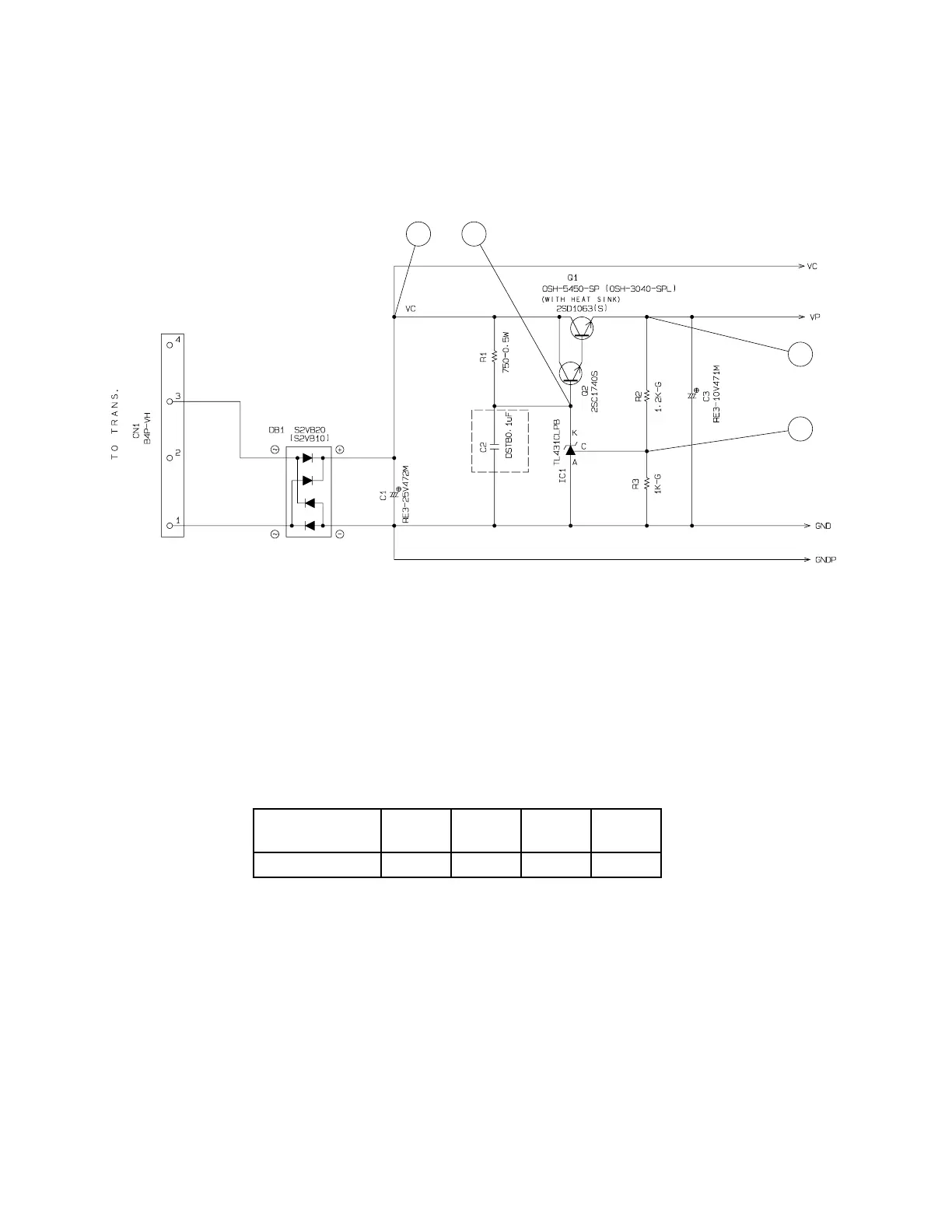

5-1. Power supply circuit
A C
B
D
