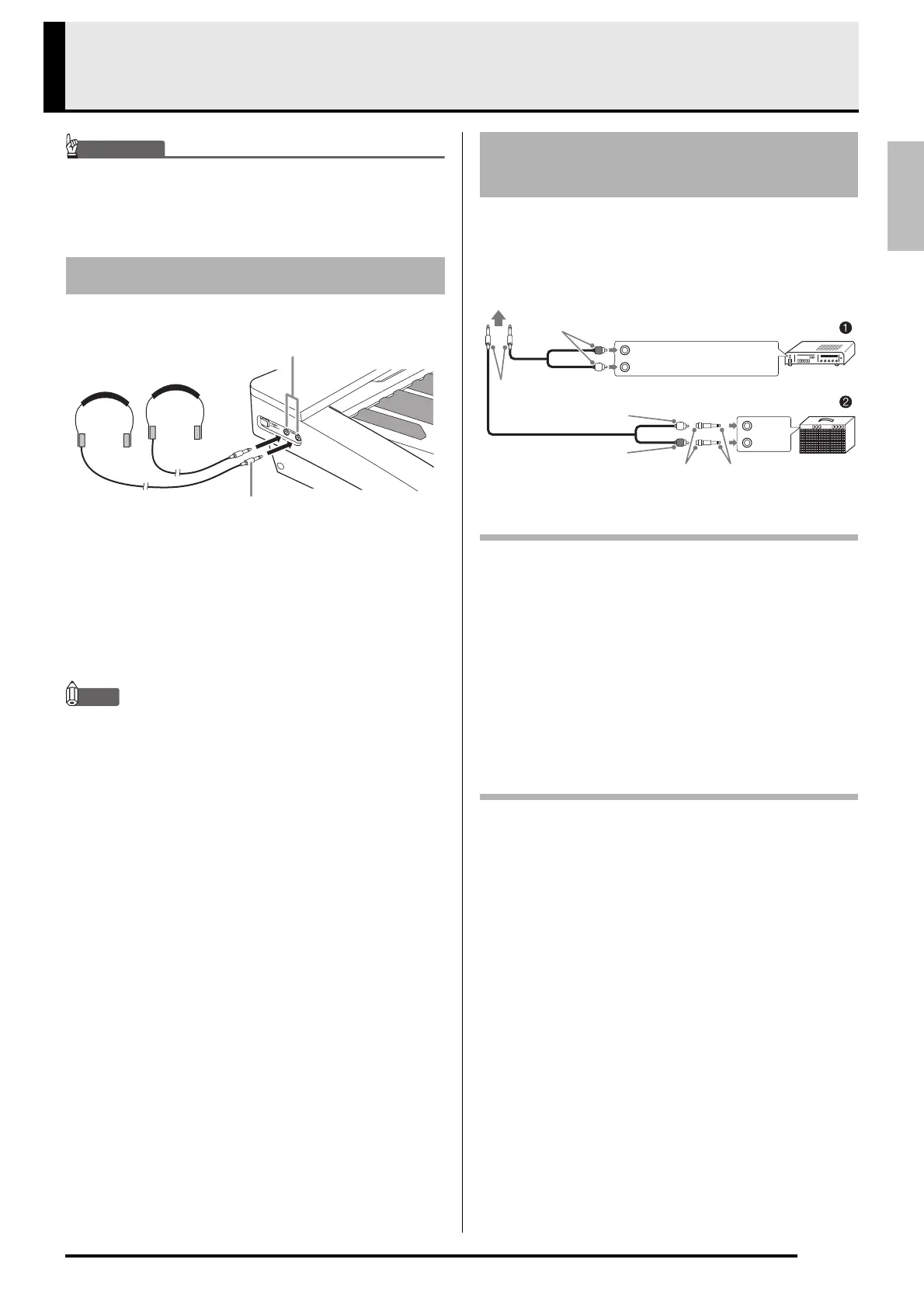

Casio PRIVIA PX-130 - Connections; Connecting Headphones; Connecting Audio Equipment

E-5
English
Connections
IMPORTANT!
• Whenever connecting something to the digital piano,
first use the VOLUME controller to set the volume to
a low level. After connecting, you can adjust the
volume to the level you want.
Connect commercially available headphones to the
PHONES jacks. Connecting headphones to either of
the PHONES jack cuts off output to the speakers,
which means you can practice even late at night
without bothering others. To protect your hearing,
make sure that you do not set the volume level too high
when using headphones.
NOTE
• Be sure to push the headphones plug into the
PHONES jacks as far as it will go. If you don’t, you
may hear sound from only one side of the
headphones.
• If the plug of the headphones you are using does not
match the PHONES jacks, use the applicable
commercially available adaptor plug.
• If you are using headphones that require an adaptor
plug, make sure you do not leave the adaptor
plugged in when you unplug the headphones. If you
do, nothing will sound from the speakers when you
play.
You can connect audio equipment or a music amplifier
to the digital piano and then play through external
speakers for more powerful volume and better sound
quality.
Connecting Audio Equipment (Figure 1)
Use commercially available connecting cords (Mini
Plug × 1, Pin Plugs × 2) to connect as shown in Figure
1. Make sure that the end of the cord that you connect
to the digital piano is a stereo mini plug. A monaural
standard plug will result in output of only one of the
two stereo channels. Normally, you should set the
input selector of the audio equipment to the terminal
where the digital piano is connected (AUX IN, etc.)
Adjust volume using the digital piano’s VOLUME
controller.
Connecting a Music Amplifier (Figure 2)
Connect the connecting cord* to one of the types of
amplifiers shown in Figure 2.
Adjust volume using the digital piano’s VOLUME
controller.
Connecting Headphones
Commercially available
headphones
Stereo mini plug
PHONES jacks
Left side
Connecting Audio Equipment
or an Amplifier
* Digital Piano: Stereo mini plug
Amplifier : Inputs signals for the left and right
channels. Not connecting either plug
will result in output of only one of the
two stereo channels.
INPUT 1
INPUT 2
Audio amplifier AUX IN jack, etc.
Guitar amplifier
Keyboard amplifier, etc.
Pin plug
Pin jack Standard plug
RIGHT (Red)
To either of the digital piano’s PHONES jack
Stereo mini plug
Pin plug (red)
Pin plug (white)
LEFT (White)
