Overview and Setup
EN-8
Use the cs PEDAL UNIT jack to connect a separately
available Pedal Unit (SP-34). You can then use the pedals for
expression that is similar to that available on an acoustic
piano.

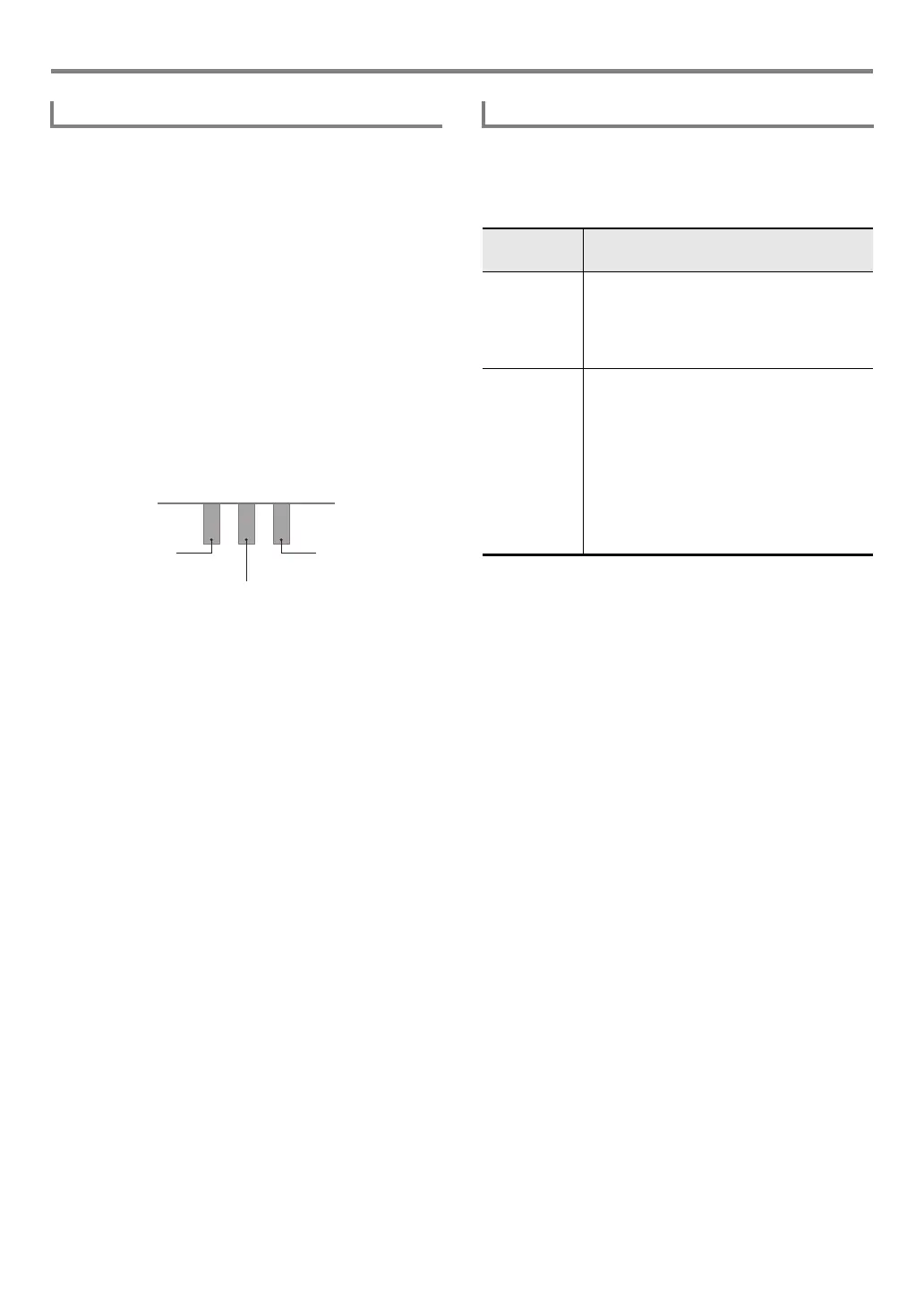

■ SP-34 Pedal Functions
● Damper Pedal
Pressing the damper pedal while playing will cause the notes
you play to reverberate. The SP-34 pedal also supports half-
pedal operation, so pressing the pedal part way applies only a
partial damper effect.
● Soft Pedal
Pressing this pedal suppresses notes played on the keyboard
after the pedal was pressed, and makes them sound softer.
● Sostenuto Pedal
Only the notes of the keys that are depressed when this pedal
is pressed are sustained, even if the keyboard keys are
released, until the pedal is released.
Use the dl EXPRESSION/ASSIGNABLE jack to connect a
commercially available expression pedal or a CASIO sustain
pedal (included SP-3 or separately available pedal).
Perform one of the operations below depending on the pedal
that is being connected.
■ Connectable Expression Pedals
• Maximum resistance value: 10kΩ±20% to 50kΩ±20%
• Use of a pedal whose operation has been confirmed (see
below) is recommended.
Operation Confirmed Pedals (Polarity Type 2)
Roland EV-5 (Set minimum volume to 0.)
KURZWEIL CC-1
FATAR VP-25, VP-26
PEDAL UNIT jack
Soft Pedal
Sostenuto Pedal
Damper Pedal
EXPRESSION/ASSIGNABLE Jack
For this type
of pedal:
Perform this operation:
Switch type
pedal
(1) Use the procedure under “To specify the
pedal type” (page EN-9) to select “SW”.
(2) Use the procedure under “To specify the
pedal function” (page EN-9) to select a
switch type pedal setting.
Expression
pedal
(1) Use the procedure under “To specify the
pedal type” (page EN-9) to select a
polarity type that matches the pedal
being connected.
(2) Use the procedure under “To specify the
pedal function” (page EN-9) to select an
expression pedal setting.
(3) Perform the procedure under
“Expression Pedal Calibration” (page
EN-9).
To Next Page
