— 10 —

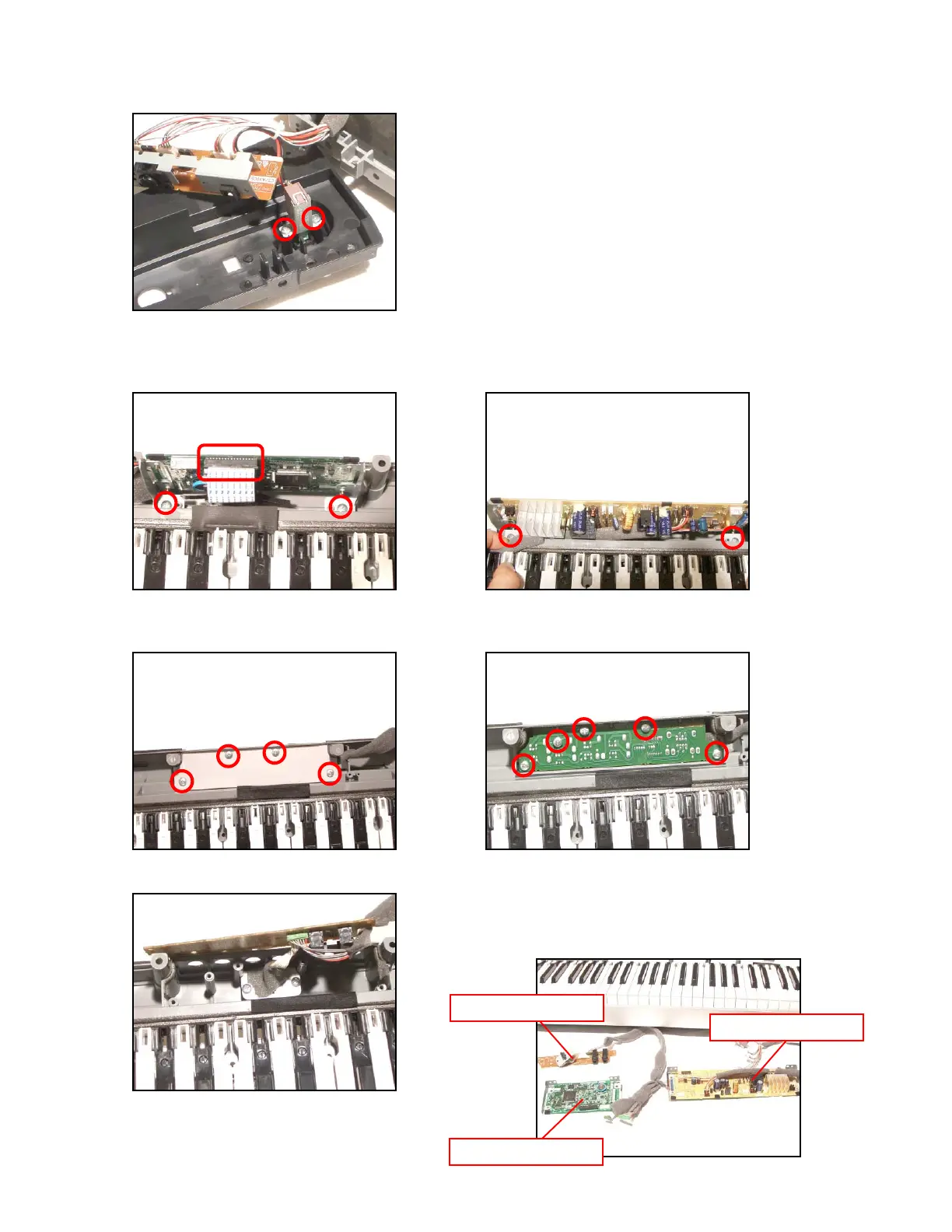

18. Remove 2 screws and then the power switch.
■ Removing the PCBs (M404-MDA1, M404-PSA1 and M403-JKB1).
19. Remove the connector and 2 screws then the PCB (M404-MDA1).
20. Remove 2 screws then the PCB (M404-PSA1).
21. Remove 4 screws and then the cover.
22. Remove 5 screws and then the PCB (M403-JKB1).
23. Remove 2 screws.
M403-JKB1 PCB
M404-MDA1 PCB
M404-PSA1 PCB
