Casio QT-2100 Service Manual

— 32 —

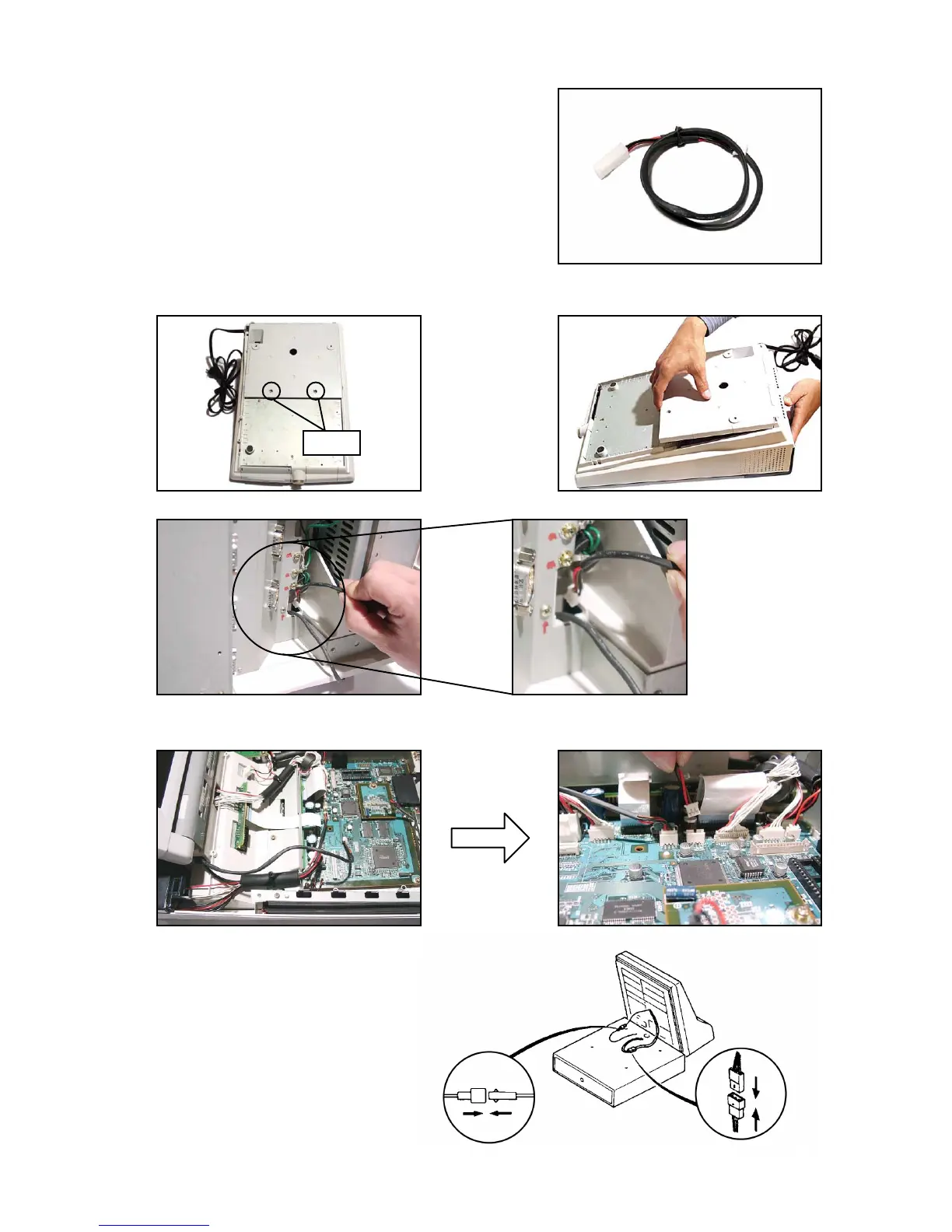

6-8. DRAWER
1. Remove the upper cover as shown in steps 1 to 3 of page 9.
2. Remove two screws and the lower case.
3. Let the cable through the part as shown below and put into the ECR.
4. Put the cable into the tube and connect it to the MAIN PCB (CN11).
5. Fix the UPPER COVER.
6. Connect the earth line with the drawer connector.
Screws
Connect the drawer earth line.
Connect the drawer
connector.
NOTE: CN10 for Multi Drawer
