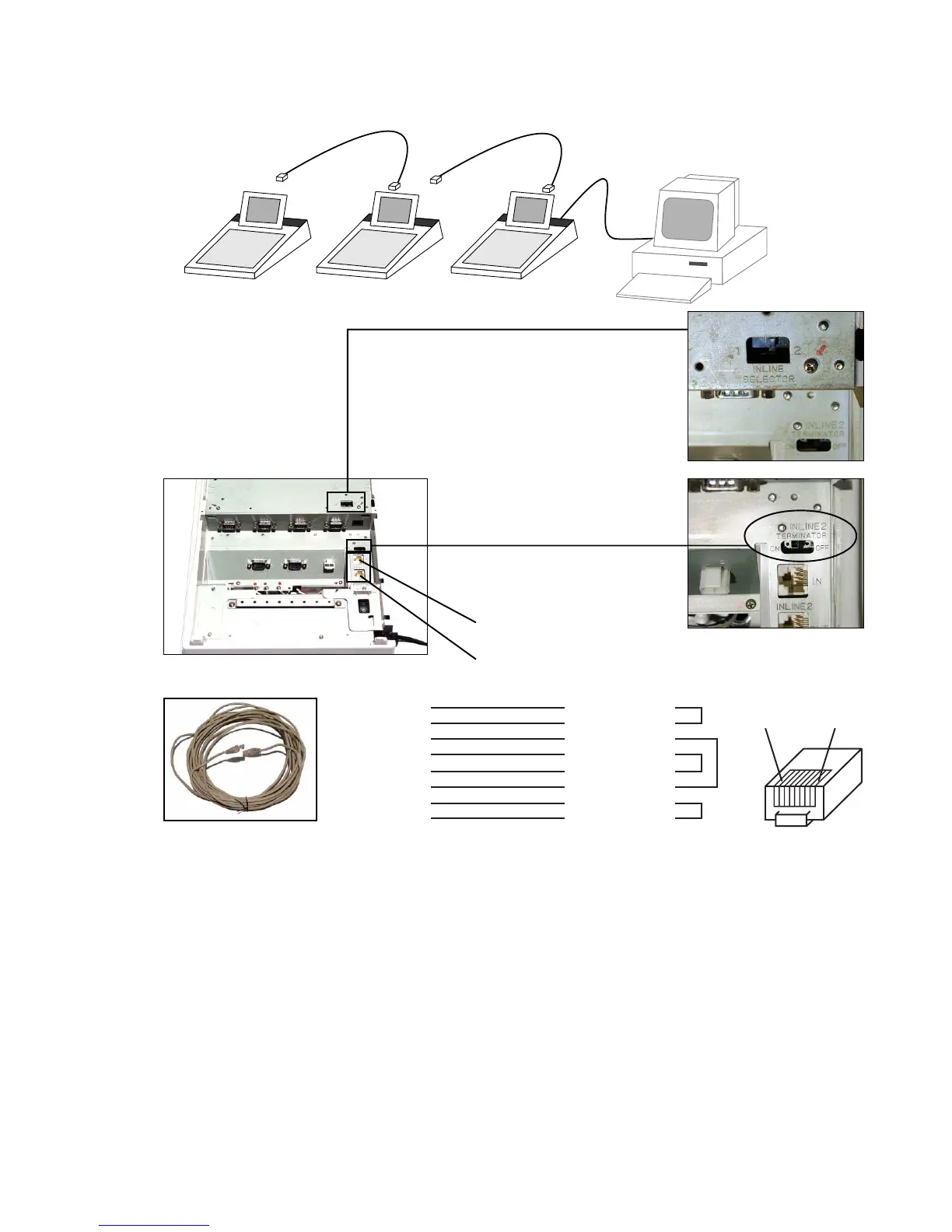

3 BLOCK DIAGRAM
4 Connection
NOTE:
1) The power of all units which share the network must be turned on.
If even one of them is OFF, normal communication cannot be done.
If any of the units has a failure and its power is turned off, remove the unit from the network.
2) Communication speed of the categoly 5 is fixed 312.5kbps.
PC
RS232C
CAT5 UTP Cable
OUT
(Min 5m) (Min 5m)
OUT
IN
IN
CAT5 UTP Cable
PC
Terminator Switch
Turn on the switch of the units of
both first and the last ends.
IN LINE selector
Position 1: ARC NET
Position 2: CATEGORY5
ON OFF
1
2
IN
OUT
White/Orange 1
Orange 2
White/Green 3
Blue 4
White/Blue 5
Green 6
White/Brown 7
Brown 8
1 White/Orange
2 Orange
3 White/Green
4 Blue
5 White/Blue
6 Green
7 White/Brown
8 Brown
8, 7, 6, .....2, 1
LAN CABLE
