— 36 —
Using Com1 port
QT2100QT2100QT2100QT2100
R/J
Slip SlipSlip
PC
RS-232C
KP/M CHK/BM CHK/M KP/BM
8. ON LINE
Only the RS-232C Com1 port can be connected with a modem or perssonal computer.

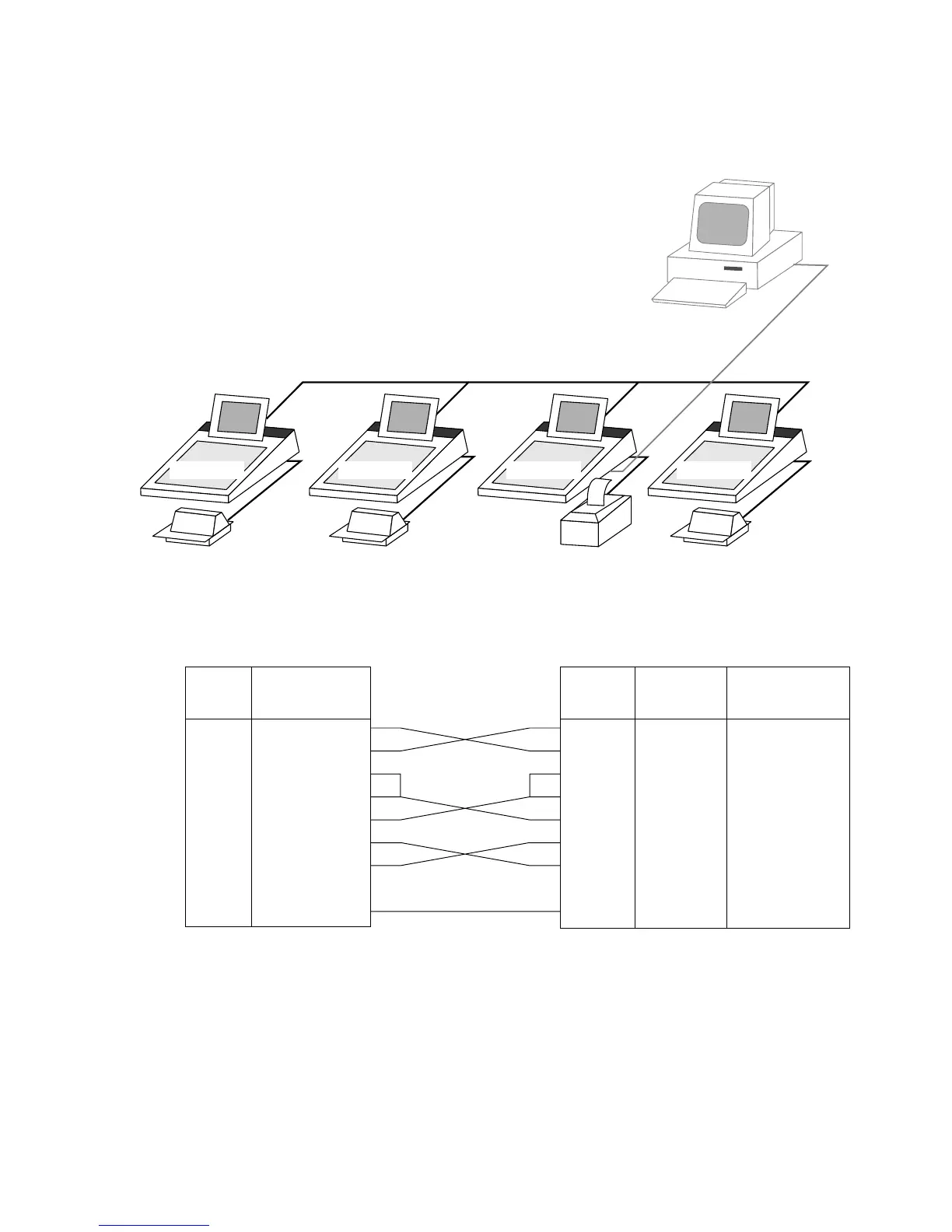

8-1. Direct connection to PC
1 Connection layout
2 PC Cable wiring
Pin No. Signal name
3 SD/TXD
2 RD/RXD
7 RS/RTS
8 CS/CTS
1 CD/DCD
4 ER/DTR
6 DR/DSR
9 CI/RI
5 GND
QT-2100 (Com1)
Pin No. Pin No. Signal name
(DSUB9) (DSUB25)
32SD
23RD
74RS
85CS
18CD
420ER
66DR
- 22 CI
5 7 GND
PC
