Casio QV-R40 Service Manual & Parts List

— 17 —

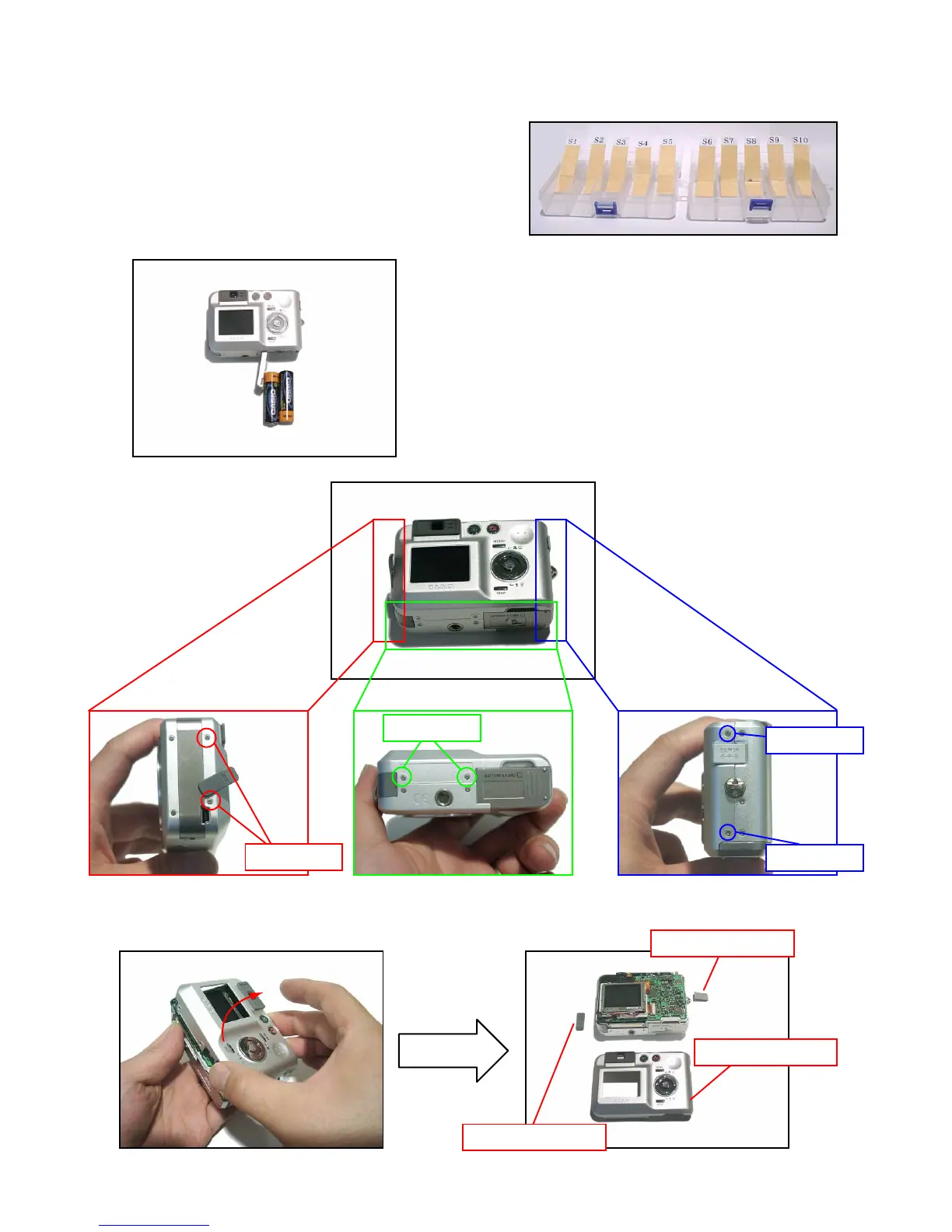

■ There are several types of screws. Make sure to use the
correct ones.
■ It is a good idea to sort them as shown in the figure when
disassembling.
1. Remove the batteries.
3. Remove the rear panel.
4. Remove the connector cover and the AC jack cover.
AC jack cover
DISASSEMBLY
Connector cover
Rear panel
■ Removing the rear panel
2. Remove six screws.
Screws (S4)
Screws (S3)
Screws (S2)
Screws (S3)
