■ Removing the front panel unit

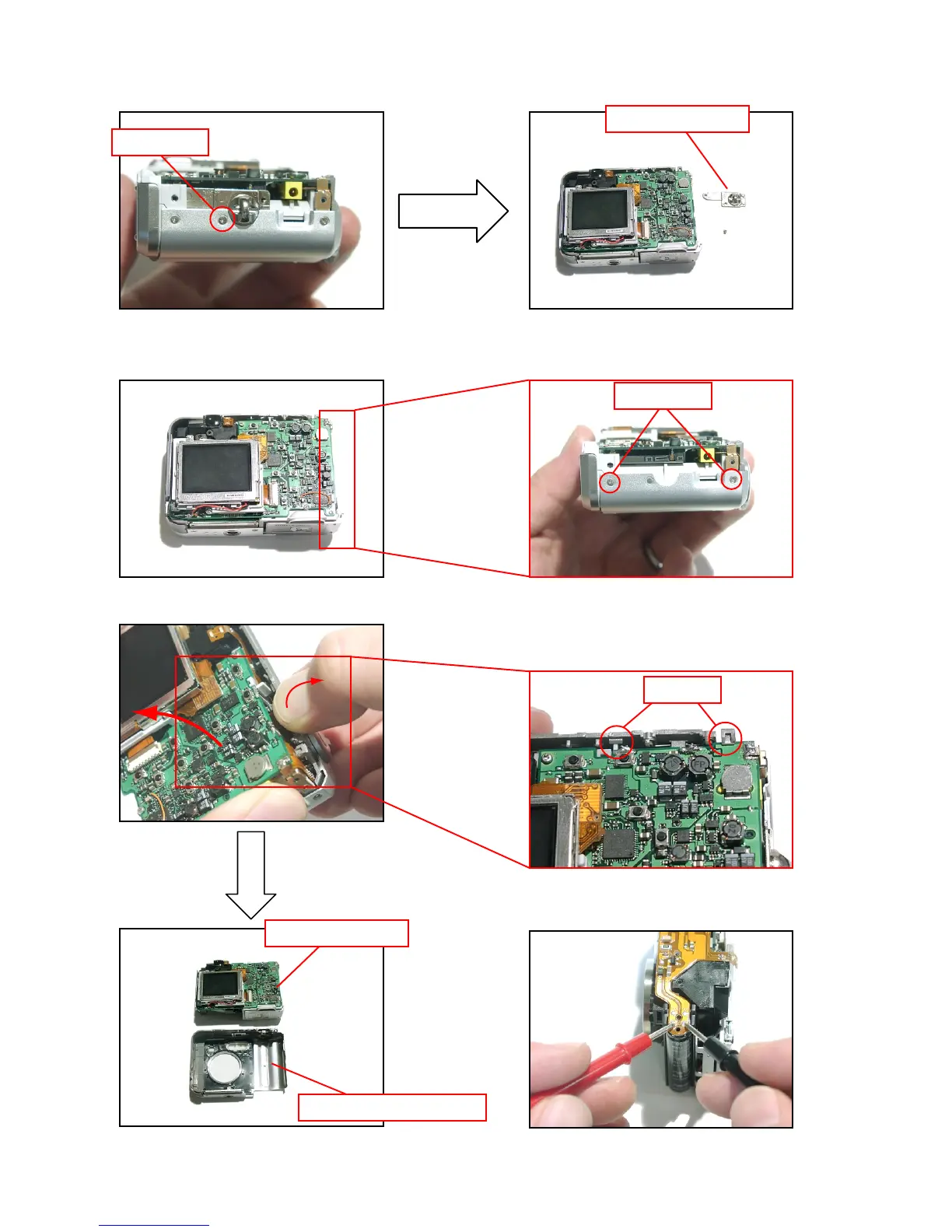

6. Remove two screws (S2).
5. Remove one screw (S1) and then the strap board.
7. While opening the case in the direction of the arrow, remove the electronic block from the front panel unit.
NOTE: Make sure that the hooks are snapped together
when assembling.
Make sure to discharge the strobe condenser when
removing the front panel.
Electronic block
Hooks
Screws (S2)
Strap board
Screw (S1)
Front panel unit
