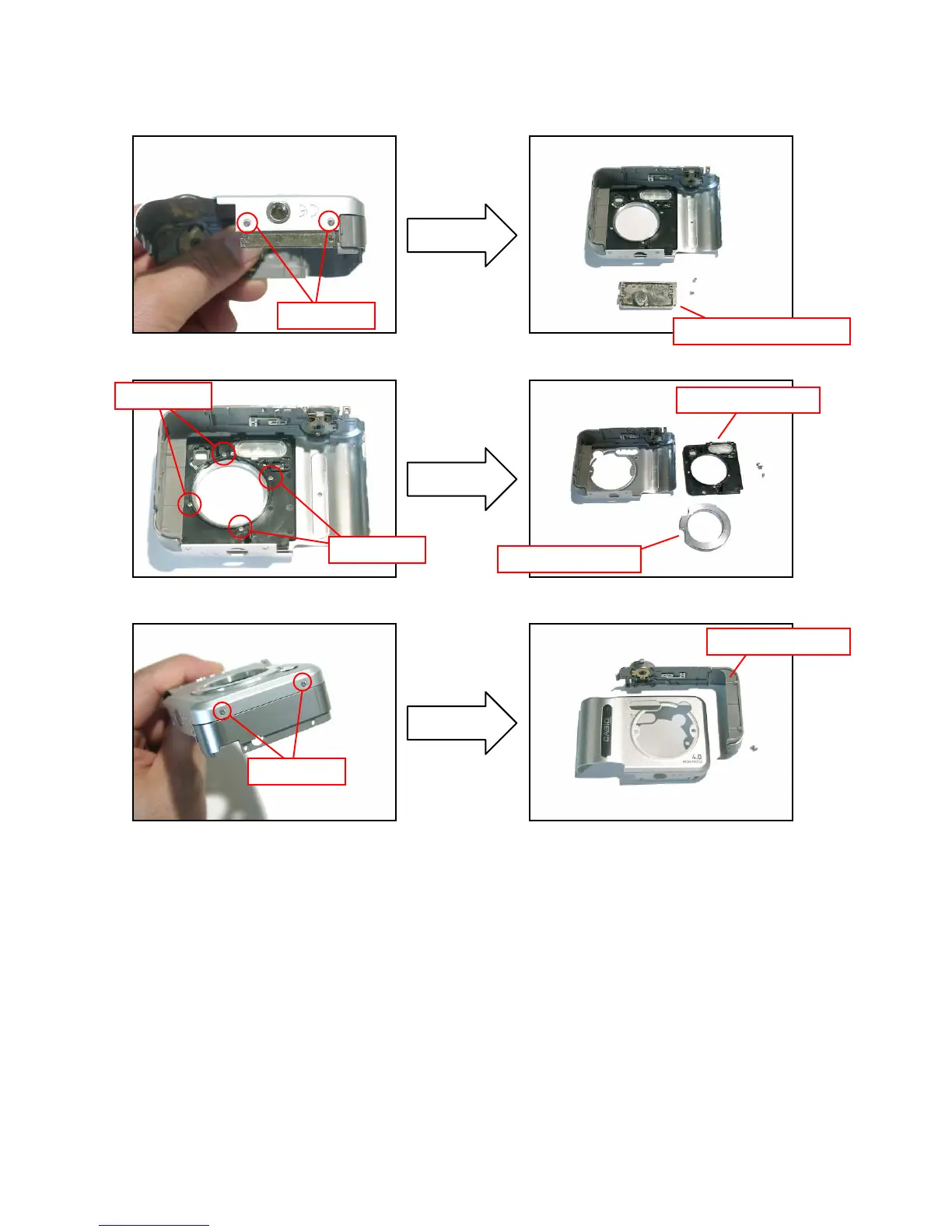

■ Disassembling the front panel unit
8. Remove two screws (S3) and then remove the tripod sock.
Screws (S3)
Tripod sock
9. Remove four screws (S5) and then remove the cam ring and the upper case.
Screws (S5)
Upper case
10. Remove two screws (S2) and then remove the center case.
Cam ring
Screws (S5)
Center case
Screws (S2)
