Casio QV-R40 Service Manual & Parts List

— 22 —

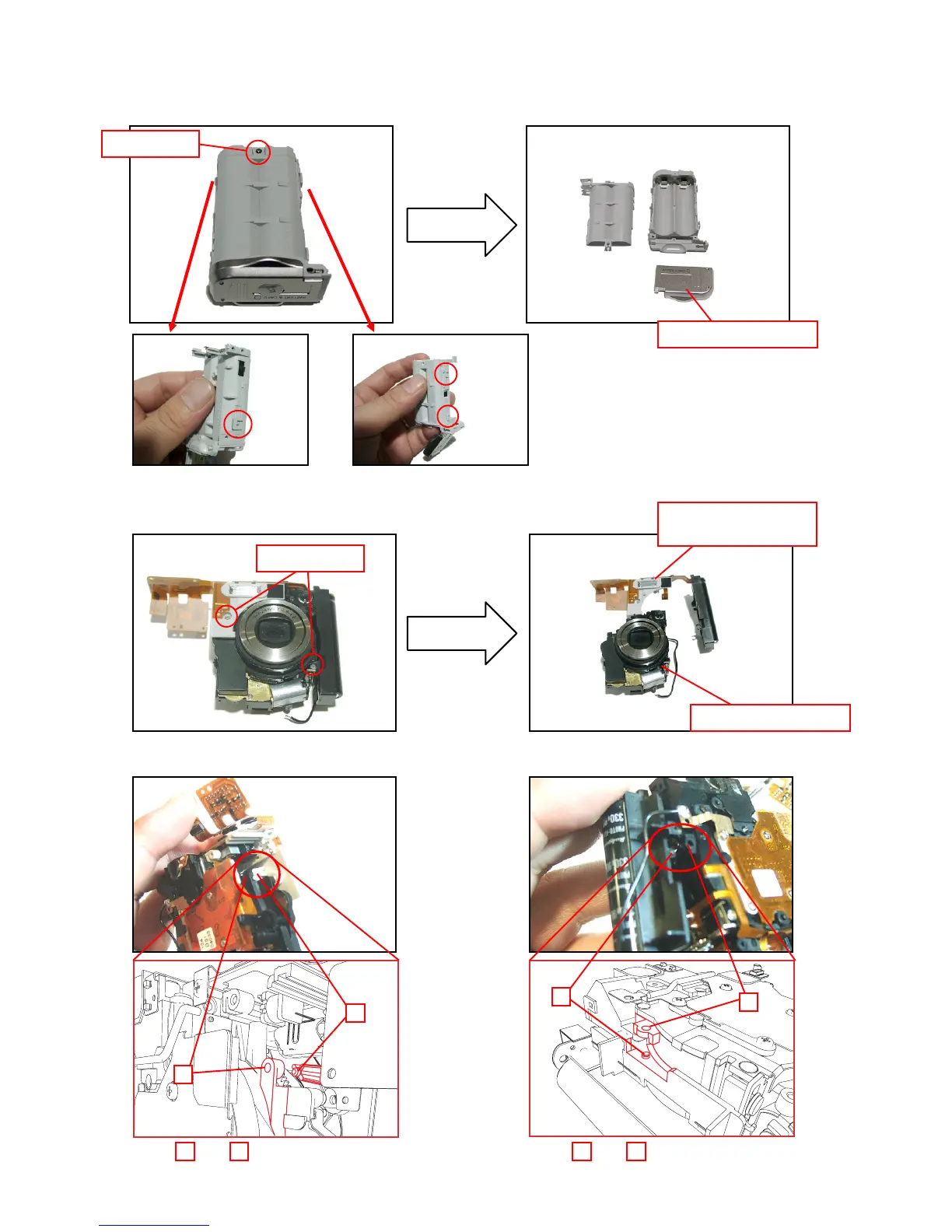

23. Remove one screw (S9) and then disassemble the battery case (See the figures below for the position of
the hooks).
Battery cover
Screws (S9)
■ Removing the lens unit
24. Remove two screws (S10) and then remove the lens unit.
Lens unit
Screws (S10)
Strobe unit
(with CAPA holder)
NOTE: Insert the convex portion into the concave portion tightly as shown in the figures below
when assembling.
Insert A into B tightly. Insert C into D tightly.
A
B
C
D

Casio QV-R40 Specifications

General

Brand	Casio
Model	QV-R40
Category	Digital Camera
Language	English
