Casio SE-S400 Service Manual

– 9 –
SE-S400/SE-S800/PCR-T500/PCR-T520/SE-C450
SE-S3000/SE-S900/PCR-T2300/PCR-T2400/SE-C3500

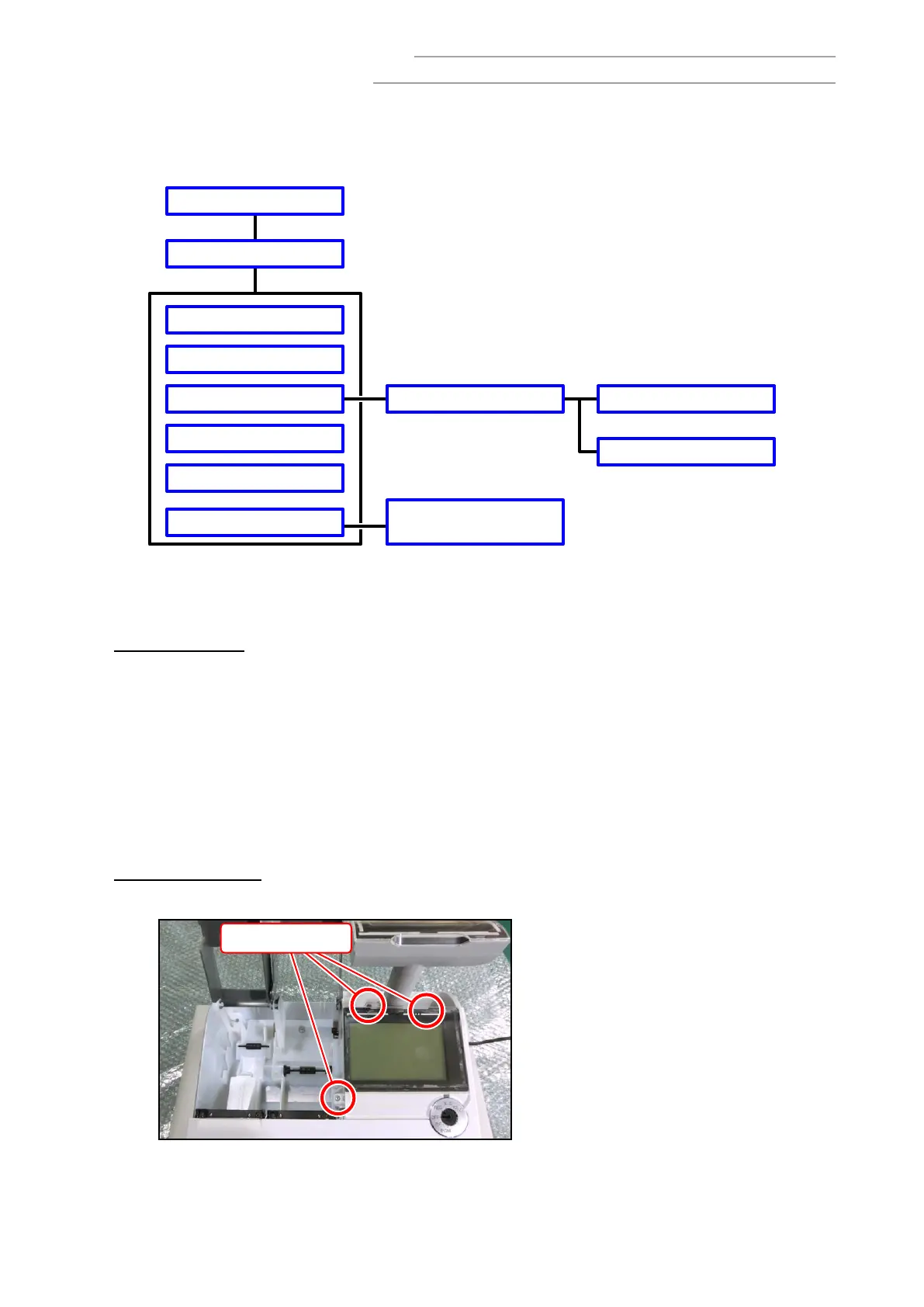

4-2. Flowchart
See the fl owchart below for the order of disassembling major components.
B. CASE/UPPER
A. Preparation
C. PCB ASSY/E292-COM
D. PRINTER
E. PCB ASSY/E291-1
F. DRAWER
H. PS-UNIT
G. MOTOR-ASSY
I. DP-ASSY
K. KEY BLOCK
J. REAR DISPLAY
L. SWITCH ASSY/
MODE KEY
4-3. Procedure
A. Preparation
A-1. Remove the parts listed below, if any.
• COVER/PRINTER
• REEL (PULLY/WIND, SPOOL/PAPER)
• Paper roll
• COVER/BATTERY
• Memory protection batteries
• SD card
B. CASE/UPPER
B-1. Undo three screws.
Screws (S1)

Casio SE-S400 Specifications

General

Clerk lock	Yes
Types of payment	Cash
Number of Price Look-Up codes (PLUs)	3000 PLUs
Supported paper width	58 mm
Display number of lines	10 lines
Display number of characters	26
Second display number of characters	20
RS-232 ports	2
Power source	AC
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	220 mm
