Casio SE-S400 Service Manual

– 48 –
SE-S400/SE-S800/PCR-T500/PCR-T520/SE-C450
SE-S3000/SE-S900/PCR-T2300/PCR-T2400/SE-C3500
7-5. DRAWER S-type (DL-1336/1846)

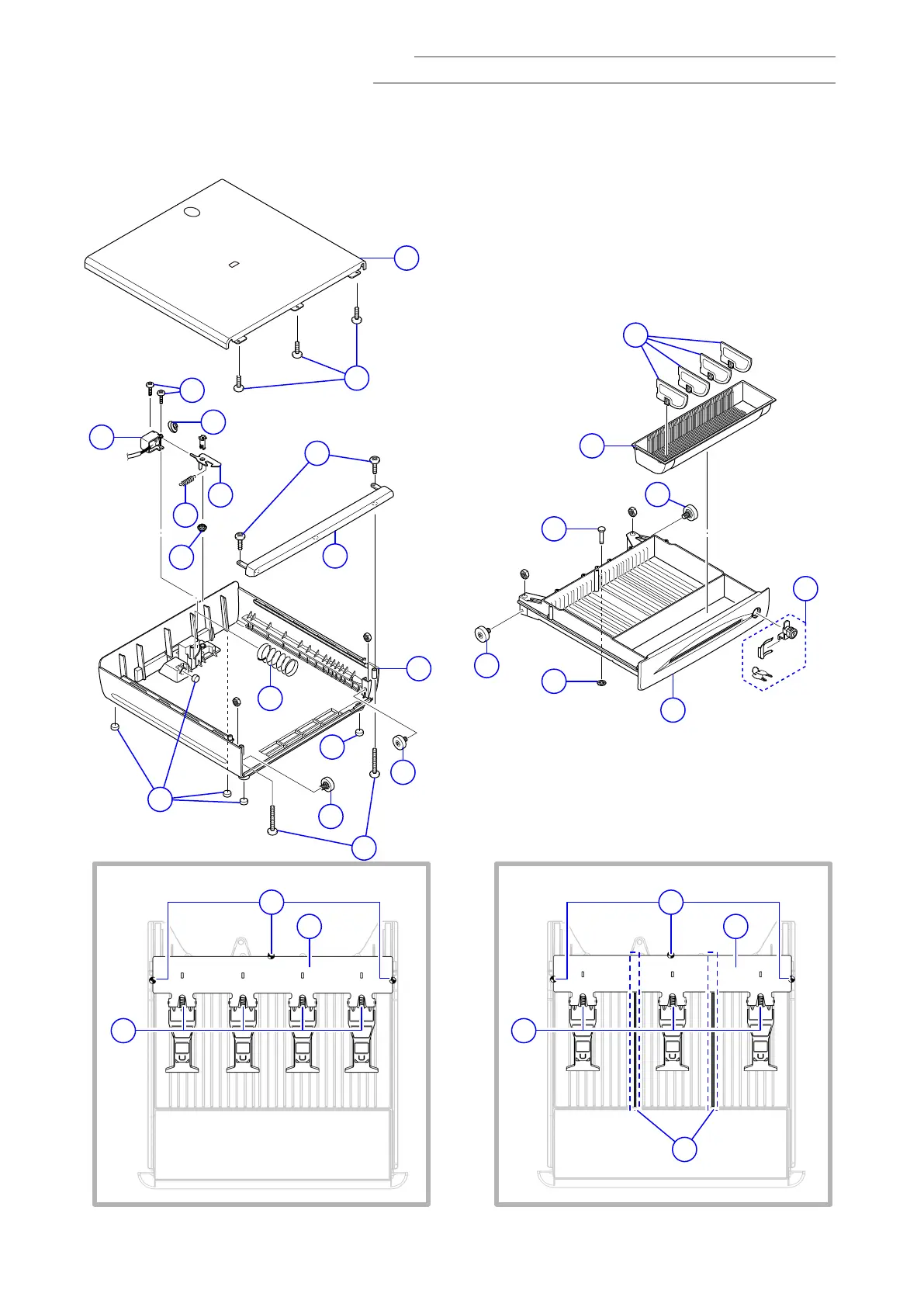

EXPLODED VIEW
DL-1336
DL-1846
17
18 18
S4
15 16
S4
S3
6
S1
S2
13
S2
19
7
11
11
12
11
2
8
10
21
20
1
14
11
9
5
4
3
6

Casio SE-S400 Specifications

General

Clerk lock	Yes
Types of payment	Cash
Number of Price Look-Up codes (PLUs)	3000 PLUs
Supported paper width	58 mm
Display number of lines	10 lines
Display number of characters	26
Second display number of characters	20
RS-232 ports	2
Power source	AC
AC input voltage	100-240 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	450 mm
Width	400 mm
Height	220 mm
